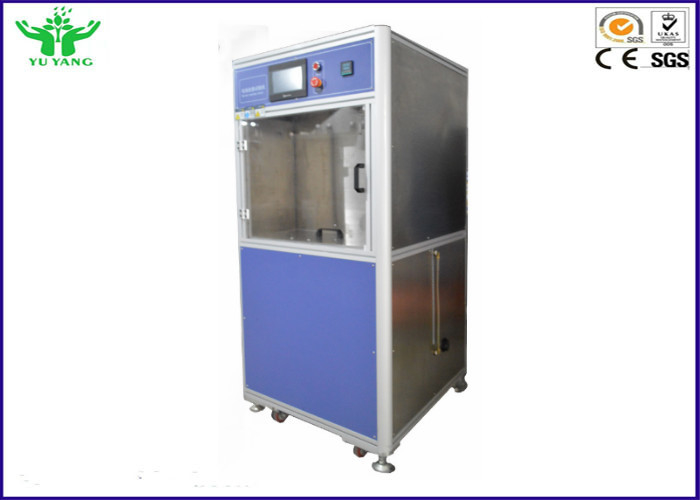

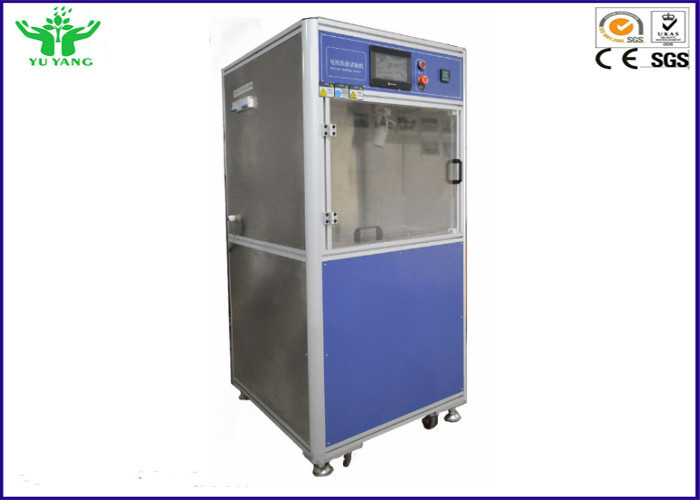

6kw Environmental Test Chamber Laptop / Touch Control For Lithium Battery Pack

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  6kw Environmental Test Chamber Laptop / Touch Control For Lithium Battery Pack Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB 31241-2014
Model Number: YYE-045
Payment & Shipping Terms:
Packaging Details: Strong Wooden Case
Delivery Time: 3-5 work days
Supply Ability: 200 Set/Sets per Month
Detailed Product Description
Nominal Capacity:: 100AH Temperature Control Method:: Smart P.I.D Control
Heating Tube Power:: 6 Kw Turn The Blade Material:: SUS# 316 Stainless Steel
Temperature Uniformity:: ± 2 ℃ Stirring:: Speed 60r / Min
Solution:: PH At 11.0±0.1 Power Voltage:: AC380V 50Hz
High Light:

thermal shock test chamber

,

salt spray test chamber

± 2 ℃ Laptop / Touch Control Lithium Battery Pack Washing Testing Machine 6kw





Product description:

Lithium-ion battery stack washing up tester, battery lavation tester is suitable for the following batteries or battery packs
1, hand-held electronic products with lithium-ion battery pack
2, may be placed in the pocket to carry or use of portable electronic products with lithium-ion battery pack
3, other portable electronic products can be placed in the pocket to carry the battery pack
4, the installation of non-user replacement type battery / battery pack of hand-held electronic products such as washing test.



Test Method:
1.Solution: Preparing solution with PH at 11.0±0.1(Naoh solution available mass fraction at 0.004%) and heat solution at (45±2)ºC.

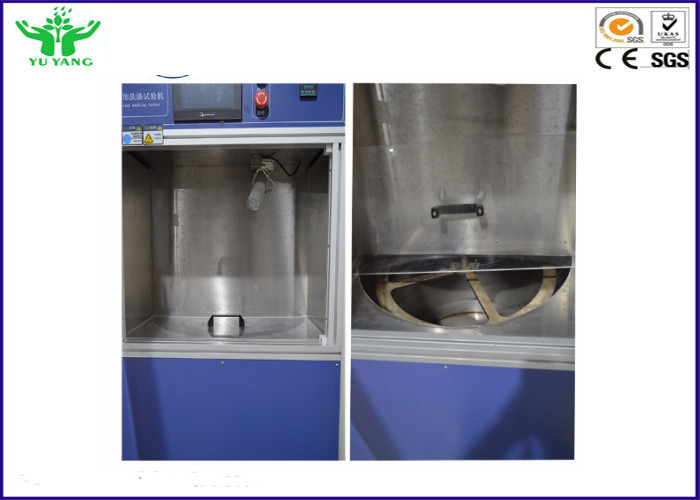

2. Soaking: Fix the sample on the rotating device, and then place the sample in the solution (the center of the battery is 300mm + 10mm) to soak 0.5H. The temperature of the solution keeping at (45 + 2) ºC during the test.

3. Stiring: Fix the sample on the rotary device and rotat 0.5H in the solution, rotating speed at 60r/min.

4. Dewatering:Remove the solution, rotate 10 min, and rotating speed is 800r/min.

5. Drying: Put the samples in a high temperature box to heat 0.5H, and the heating temperature was (45 + 2) ºC.

6. If the sample can continue to charge and discharge, then follow the prescribed charge and discharge method to do a cycle of discharge charging and end the test. If the sample can not continue to charge and discharge, the test will be finished. During the test, the sample should not fire and explode.



Technical parameter:



Product name Lithium-ion battery stack washing up tester, battery lavation tester
temperature range

room temperature ~ 80 ℃ (adjustable, can be arbitrarily set), the commonly

used temperature of 45 ± 2 ℃

temperature accuracy ± 0.5 ℃
temperature uniformity ± 2 ℃
stirring

the sample fixed to the rotating device (washing paddle) in the solution for

0.5h, speed 60r / min

inner box Material SUS # 316 stainless steel
test time 0-9999H / M / S can be arbitrarily set
temperature control methods intelligent P.I.D control
control system

PLC man-machine interface, reliable performance, high modulus accuracy,

set the parameters after the test automatically completed, simple and efficient

washing solution

configure the pH value of 11.0 ± 0.1 solution (can use the mass fraction of

0.004% NaOH solution), the washing solution by the customer self

soak

the sample fixed on the rotating device (washing paddle), and then placed

the sample in the solution (the battery center distance from the surface height

of 300mm ± 10mm) soak 0.5h, the test process to maintain the temperature

of the solution (45 ± 2) ℃

equipment outside size 1000x1260x2200 mm (LxWxH)
Power supply AC 380V, 50HZ, 16A (need to be equipped with independent air switch),
Power 6KW



Standard:

GB31241-2014
