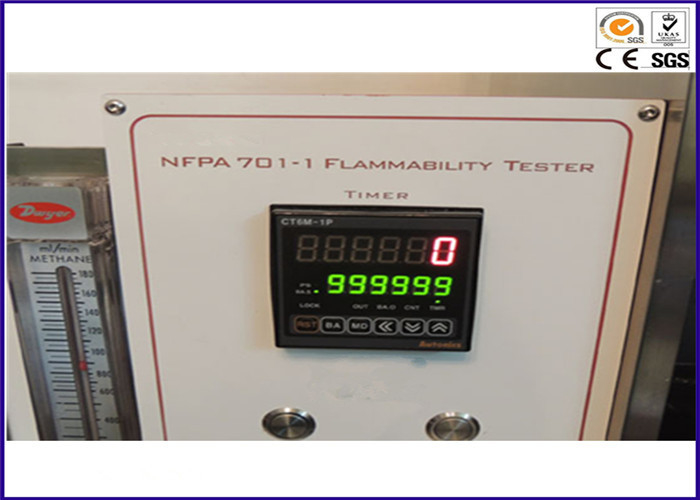

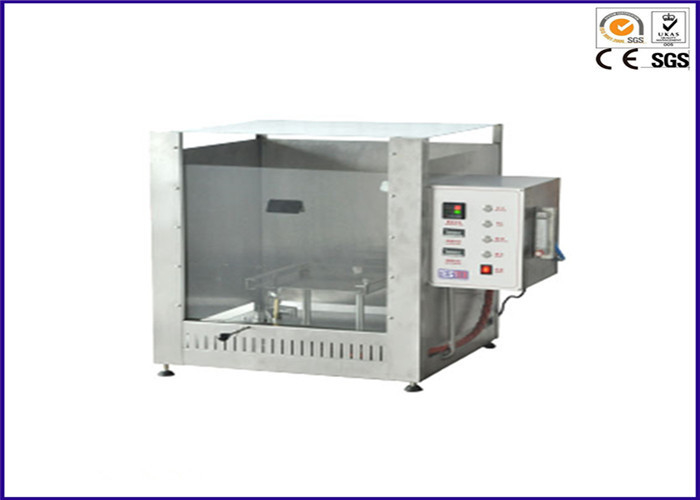

Laboratory Fire Testing Equipment For Fabrics NFPA 701 Test Method 1

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Laboratory Fire Testing Equipment For Fabrics NFPA 701 Test Method 1 Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: NFPA 701-2004 Test Method 1
Model Number: YY409
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Detailed Product Description
Material: Stainless Steel Product Name: Fire Testing Equipment
Usage: NFPA 701 Test Method 1 Tester Igniting Time: 0~99.99s
After-flame Time: 0~99.99s±1s Power Supply: 220V 50HZ
Weight: Approx. 100kg Test Cabinet Size: 675×500×700mm(L×W×H)
High Light:

fire test chamber

,

flame test apparatus



Laboratory NFPA 701 Test Method 1 Fire Testing Equipment for Fabrics





Application:


NFPA 701-2004 Flammability Tester is used to assess the propagation of flame beyond the area exposed to the ignition source. It is applicable to fabrics or other materials used in curtains, draperies or other window treatments and single-layer fabrics and multilayer curtain and drapery assemblies in which the layers are fastened together by sewing or other means. It is not applicable to specimens having an area density greater than 700g/m2.





Standard:



NFPA 701-2004 Test Method 1





Specifications:



Test cabinet size

675×500×700mm(L×W×H)

Igniting time

0~99.99s, randomly settable

After-flame time

0~99.99s±1s

Gas supply

Mixture of propane and butane or butane, supplied by user himself

Power supply

AC220V 50Hz, 50W

Weight

Approx. 100kg
