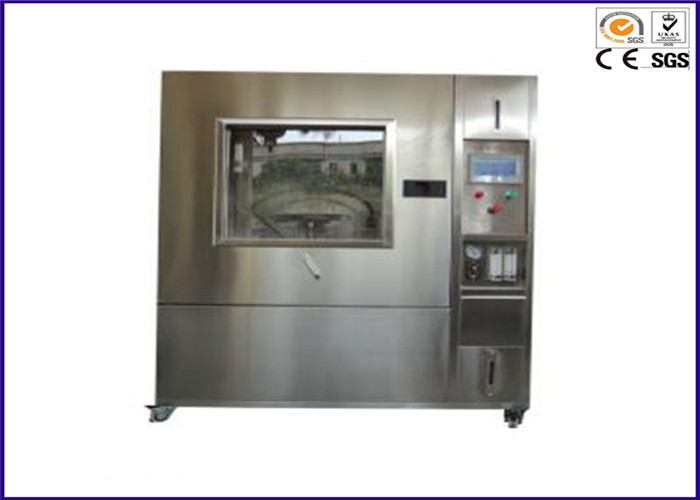

Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber

Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber
Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber

Large Image :  Low Noise Environmental Test Chamber IP1 / 2/ 3 / 4-1000 Rain Test Chamber Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB2423,38-90,GB4706.32-2004 IEC-5129
Model Number: YY1019
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Detailed Product Description
Product Name: Environmental Test Chamber Usage: IP Rain Test Chamber
Material: Stainless Steel Plate Volume: 1000×1000×1000(D×W×H)mm
Dimension: 1200×1500×1950(D×W×H)mm Power Supply: AC220V, 50/60HZ
Oscillating Tube Radius: 400mm Oscillating Tube Flexing Angle: 45°, 90°, 180°
Nozzles Aperture: φ0.4 Mm Nozzles Distance: 50 Mm
High Light:

sand and dust test chamber

,

thermal shock test chamber

Low Noise Rain Environmental Test Chamber , IP1/2/3/4-1000 Rain Test Chamber





Product Information:



This equipment can be use to inspect the ability of electrical product shell protect product and accessories to rain. This equipment can simulate drip water, spray water and splashing water environment with technical design. Intelligent control system and frequency conversion technology allow to adjust the rotate angle of sample support, angle of oscillating tube, and flow rate and flexing speed.



Technical parameters:


1. Volume(mm):1000×1000×1000(D×W×H)
Dimension(MM): 1200×1500×1950(D×W×H)
2. Turntable Rotate speed(rpm):1 ~5adjustable,table diameter:500MM,can tilt 15°,height 200mm adjustable.
3. Oscillating tube radius(mm): 400
4. Oscillating tube flexing angle:45°, 90°, 180°(close to)
(1) Nozzles angle:120°(IPX3),180°(IPX4).
(2) Flexing angle:120°(IPX3),320°(IPX4)
5. Nozzles aperture(mm):φ0.4
6. Nozzles distance(mm):50
7. Flow rate per hole:0.07 L/min +5%
8. Pressure(Kpa):80-150
9. Oscillating tube flexing angle:max. ±180°(close to)
10. Flexing speed:IPX3 one complete oscillating (2*120°) being about 4S;IPX4 one complete oscillating (2*175°) being about 12S;Adjustable.
11. IP12:aperture 0.4MM, holes distribution 20*20MM.Drip area 800*800MM,drip height 120MM
(1)flow rate: 1+0.5mm/Min,3+0.5mm/Min or set(digital control technology);

(2)IPX2 test, turntable tilt 15° and rotate automatically ensure four faces be rained 150s. (Auto or manual)

12. Test time:1-999,999min(set)

13. Pressure:80~150Kpa(adjustable)
14. Distance from sample to drip box is 200mm, after test, put sample in room temperature for 24 hours and check its function
15. Stainless steel shell, tempered glass viewing window
16. Suitable turntable (sample support), rotate speed adjustable
17. Power:one set build in 12V /24V waterproof plug
18. Driver:Panasonic 750W servo motor (low noise, high precision)

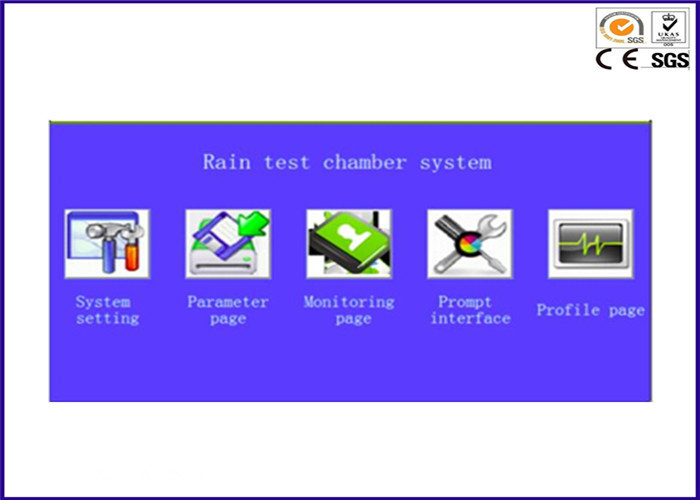

19. Control system:Teelong touchscreen control system
20. Power supply: 220V 50Hz
21. Reference standard: GB2423,38-90,GB4706.32-2004 IEC-5129

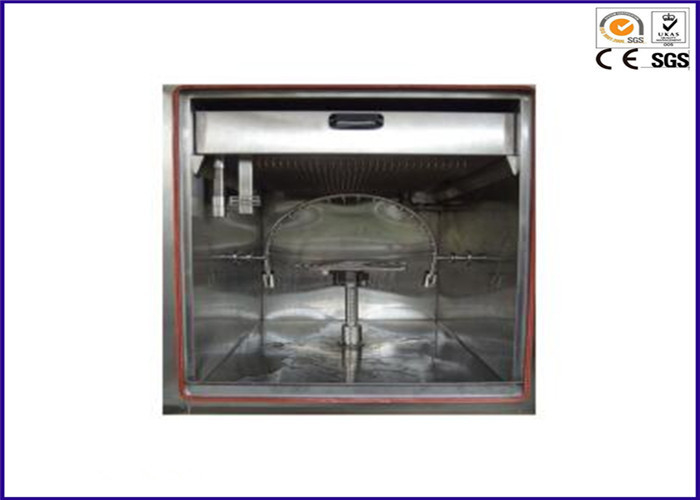

Structure:


1. SUS304 liner
2. SUS304 shell
3. sample support is a rotating speed adjustable turntable





Protection:



Overload protection, short-circuit protection

Grounding protection

Water shortage protection

Alarm warning
