Temperature Humidity Environmental Test Chamber Simulation Medicine Stability

Temperature Humidity Environmental Test Chamber Simulation Medicine Stability
Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Temperature Humidity Environmental Test Chamber Simulation Medicine Stability

Large Image :  Temperature Humidity Environmental Test Chamber Simulation Medicine Stability Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YYE-036
Payment & Shipping Terms:
Packaging Details: strong wooden case
Delivery Time: 20-25 work days
Supply Ability: 100 Set/Sets per Month
Detailed Product Description
Temperature Range:: -70°C To +150°C Humidity Range:: 20%~98%RH
Material:: Stainless Steel Instrument Control Precision:: ±0.1°C 2%RH
Output:: PID+S.S.R
High Light:

thermal shock test chamber

,

salt spray test chamber

Simulation medicine stability constant temperature humidity climatic test chamber



Product Description



Temperature humidity test stability chamber is able to accurately simulate such complicated natural environments as low temperature, high temperature, high temperature and humidity, low temperature and humidity etc., applicable to the QC inspection in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..



Features

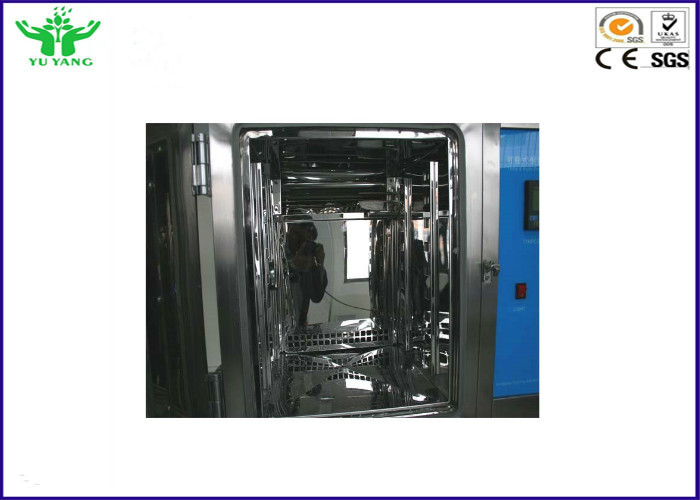

1. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.

2. Microprocessor controller for temperature and humidity ensures of precise and reliable control Imported compressor.

3. Independent temperature-limiting alarm system ensures experiments run safely.

4. Printer connector and RS485 connector are options which can connect printer and computer to record the parameters and the variations of temperature.(optional)

5. There is a 50mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.

r in the cabinet.



Environmental Test Chamber Specification:



Model YYE-036-080 YYE-036-150 YYE-036-225 YYE-036-408 YYE-036-800 YYE-036-1000
Inner chamber size w×h×d(cm) 40×50×40 50×60×50 50×75×60 60×85×80 100×100×80 100×100×100
Exterior chamber size w×h×d(cm) 90×140×95 100×150×105 100×165×115 110×175×135 150×190×135 150×190×155
Testing temperature range -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃
Testing humidity range 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH)
Performance Temp.humi.fluctuation ±0.2℃,±0.5%RH
Temp.humi.uniformity ±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization
Temp.humi.resolution 0.01℃;0.1%RH
Heating-up time 10 0 15 0
min 30 40 30 40 30 45 30 45 30 45 30 45
Cooling-drow time 0 -20 -40 -60 -70
min 25 40 50 70 80
Material Exterior chamber material Stainless steel+Powder coating
Interior chamber material SUS#304 Stainless steel
Insulation material PU fiberglass wool
System Air circulation system Cooling fan
Heating system SUS#Stainless steel high-speed heater
Humidification system Surface evaporation system
Refrigeration system Imported tecumseh compressor+fin type evaporator+air(water)cooling system
Dehumidifying system ADP critical dew point cooling/dehumidifying method
Controlling system Digital electronic indicator+SSR+PID

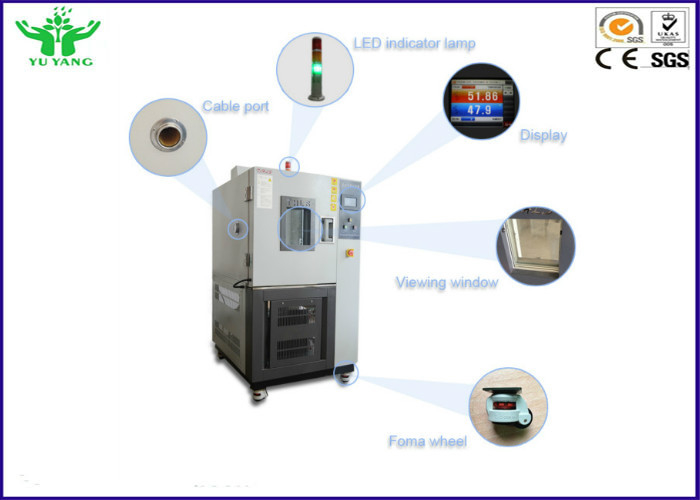

Other components Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable)
Safety protection device

Over-heat protection circuit breaker,compressor overload protection,control system overload protection,

humidifying system overload protection indicator lamp

Power supply AC 1 phase 220V;3 phase 380V 60/50Hz
Customization service Non-standard or special requirements are all welcome



Temperature Humidity Environmental Test Chamber Simulation Medicine Stability 0Temperature Humidity Environmental Test Chamber Simulation Medicine Stability 1Temperature Humidity Environmental Test Chamber Simulation Medicine Stability 2Temperature Humidity Environmental Test Chamber Simulation Medicine Stability 3
