20 / 50 Drops Laboratory Fire Testing Equipment Low Voltage Tracking Tester

China 20 / 50 Drops Laboratory Fire Testing Equipment Low Voltage Tracking Tester supplier
20 / 50 Drops Laboratory Fire Testing Equipment Low Voltage Tracking Tester supplier 20 / 50 Drops Laboratory Fire Testing Equipment Low Voltage Tracking Tester supplier

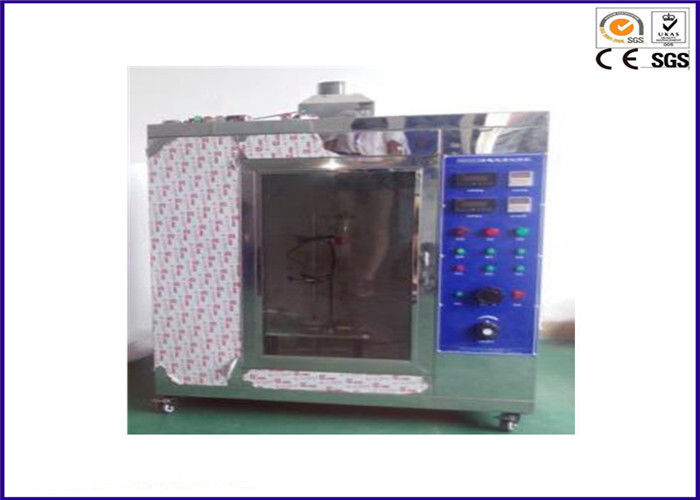

Large Image :  20 / 50 Drops Laboratory Fire Testing Equipment Low Voltage Tracking Tester

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: IEC60112:2003, UL746A,ASTM D 3638-92,DIN 53480, GB4706.1, GB4207
Model Number: YY417

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 15 sets per quarter
Contact Now
Detailed Product Description
Product Name: Fire Testing Equipment Usage: Low Voltage Tracking Test Apparatus
Material: Stainless Steel Power Supply: 220V 50HZ
Drop Volume: 20 Drops Or 50 Drops Drop Height: 35mm±5mm(adjustable)
External Chamber Dimension: 600Wx1000Hx500D Mm Air Outlet Diameter: 100mm





20 Drops or 50 Drops Laboratory Fire Testing Equipment, Low Voltage Tracking Tester





Description:



ASTM D3638-92 low voltage tracking tester simulates wet/moisture condition, test tracking index(CTI) and anti tracking index(PTI). It is used for electrical electronic products, solid insulating materials of household electrical appliance and other products.





Test method:



On the surface of solid insulate material, at the ruled 2mmx5mm platinum electrode, exert a certain voltage and set 30s time, drip the ruled drop volume(0.1%NH 4CL) at 35 mm height, then evaluate solid insulation material surface under combined electric field and medium pollution tolerance ability, determine its tracking index(CTI) and anti tracking index(PTI).





Test standard:



IEC60112:2003, UL746A,ASTM D 3638-92,DIN 53480, GB4706.1, GB4207 and other equivalent test standard.





Specifications:



1. Electrode material: platinum/stainless steel

2. Electrode size: (2mm±0.1mm)x(5mm±0.1mm)x(40mm±5mm), platinum electrode 12mm, 30°±2° cant

3. Electrode distance: 4.0mm±0.01mm, angle 60 °±5°

4. Electrode pressure: 1.00N±0.001N

5. Test solution resistance: solution A 0.1%NH 4CI, 3.95±0.05 Ω.m, solution B 1.98±0.05 Ω.m

6. Drop volume: 20 drops 0.380~0.480g, 50 drops 0.997~1.147g(adjustable)

7. Drop height: 35mm±5mm(adjustable)

8. Drop time: 30s±10.1s, digital display, preset, 50 drops time 24.5min±2min

9. Drop quantity: 1-9999, digital display, preset

10. Test wind speed: 0.2m/s

11. Test voltage: 100V~1000V(25V scale division, adjustable)

12. Power voltage drop: 8% when 1.0A±0.1A

13. External chamber dimension: 600Wx1000Hx500D mm

14. Air outlet diameter: 100mm

15. Power supply: AC 1 phase 220V 50/60Hz 500W
