Automotive Interior Horizontal Flammability Tester For Textile Burn Resistance

China Automotive Interior Horizontal Flammability Tester For Textile Burn Resistance supplier
Automotive Interior Horizontal Flammability Tester For Textile Burn Resistance supplier Automotive Interior Horizontal Flammability Tester For Textile Burn Resistance supplier

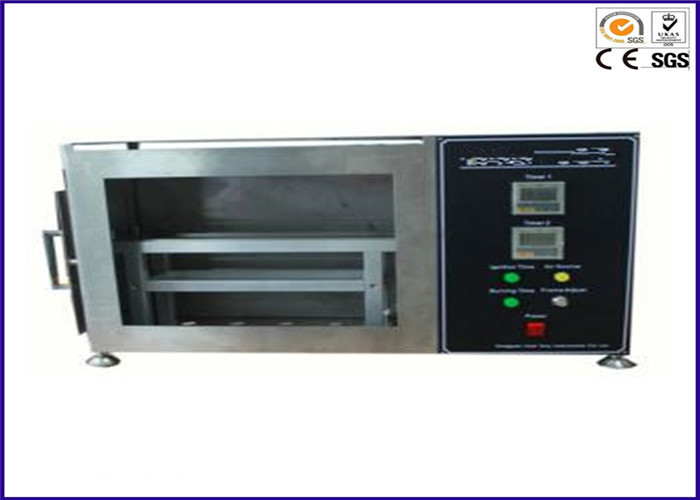

Large Image :  Automotive Interior Horizontal Flammability Tester For Textile Burn Resistance

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: ISO 3795 ,FMVSS 302,DIN 75200 ,SAE J369, ASTM D5132, ECE R118 Annex 6
Model Number: YY306

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Horizontal Flammability Tester Usage: Automotive Interior Burn Resistance
Test Chamber: 381x203x356mm Sample: 356x100mm
Burner Angle: 90° Burner Nozzle: 9.5mm
Dimension: 64x21x37cm Weight: 18 Kg





Automotive Interior Horizontal Flammability Tester, Textile Burn Resistance





Description:



Horizontal Flammability Tester. To determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.

Equipped with automatic Gas Control System including solenoid control gas value and automatic ignition timer and controls.





Technical Parameters:


1. Test Chamber:381x203x356mm, bottom gas vent diameter: 19mm*10
2. Sample fixture:U shape,interior casing:330mmx50mm,thickness 10mm
3. Sample:356x100mm, thickness no more than 13mm
4. Samples: at least 5 pcs
5. Burner nozzle: inner diameter 9.5mm
6. Burner angle:90°
7. Burn flame altitude: 38mm
8. Burning time: 15s
9. Marker line distance: 254mm
10. Burning gases: natural gas,town gas or butane
11. Size: 64x21x37cm
12. Weight:18Kg
13. Power:1∮ AC 220V 50Hz 3A




Standards:



ISO 3795 ,FMVSS 302,DIN 75200 ,SAE J369, ASTM D5132, ECE R118 Annex 6
