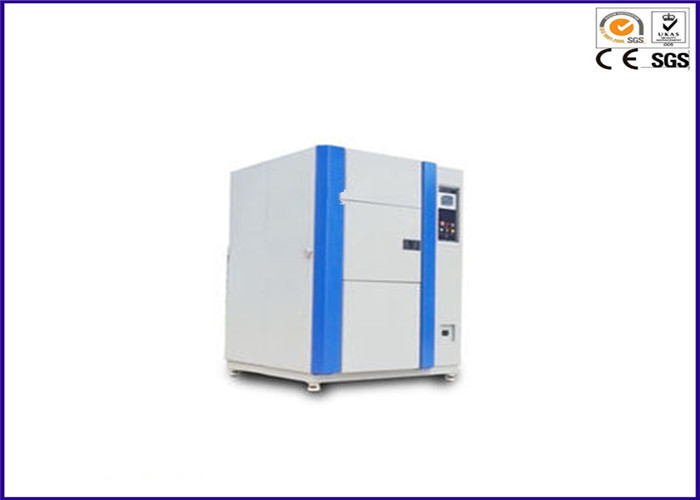

Electronic Hot And Cold Temperature Test Chamber , Thermal Shock Test Chamber CE Approved

Electronic Hot And Cold Temperature Test Chamber , Thermal Shock Test Chamber CE Approved

  • Electronic Hot And Cold Temperature Test Chamber , Thermal Shock Test Chamber CE Approved
  • Electronic Hot And Cold Temperature Test Chamber , Thermal Shock Test Chamber CE Approved
Electronic Hot And Cold Temperature Test Chamber , Thermal Shock Test Chamber CE Approved
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE , UL, ISO
Model Number: YY1011
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Temperature Testing Equipment Usage: Hot And Cold Temperature Thermal Shock
Material: Stainless Steel High Temperature: 60 To200’C
Low Temperature: -78 To 0’C Power Supply: AC220V, 50/60HZ
Setting Resolution: 1’C Display: LCD (5.7 Inches)
High Light:

thermal shock test chamber

,

salt spray test chamber

Electronic Hot and Cold Temperature Thermal Shock Environmental Test Chamber





Description:



Electronic Hot and Cold Temperature Shock Simulate Test Machine is divided into high temperature area, low temperature area and test area three parts, each area is a unique insulation structure, so doing hot and cold impact test. High-temperature impact test or low-temperature impact test, the maximum time is up to 9999 minutes, the most cycle time is up to 9999 times. The machine can be automatically or manually cycle the impact or selectively set the two areas or three areas to impact of hot and cold. It used binary cooling system that is very effectiveness for cooling, the cooling system is divided into the air-cooled and water-cooled. It also can be connected with a computer, but the record instrument is only for optional purchase. Color LCD touch-control operation interface with Chinese and English, easy to operate.





Specifications:



System Two-zone test by means of damper switching
Three-zone chamber
Model YY1011-50A/YY1011-50W YY1011-100A/YY1011-100W Customized
Performance Test area High temp. exposure range*1 +60~ to +200°C
Low temp. exposure range*1 -65to 0 °C
Temp. fluctuation *2 ±1.8°C
Hot chamber Pre-heat upper limit +200°C
Temp. heat up time*3 Ambient temp. to +200°C within 30min
Cold chamber Pre-cool lower limit -65°C
Temp. pull down time*3 Ambient temp. to -65°C within 70min
Temp. recovery (2-zone) Recovery conditions Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)
Temp. recovery time Within 10 min.
Construction External material Cold-rolled rust-proofed steel plate
Test area material SUS304 stainless steel
Door*4 Manually operated door with unlock button
Heater Strip wire heater
Refrigeration unit System*5 Mechanical cascade refrigeration system
Compressor Hermetically sealed scroll compressor
Expansion mechanism Electronic expansion valve
Refrigerant High temp side:R404A, Low temp side R23
Cooler Stainless steel welded plate heat exchanger
Air circulator Sirocco fan
Damper driving unit Air cylinder
Fittings Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal
Inside dimensions (W x H x D) 350 x 400 x 350 500 x 450 x 450 Customized
Test area capacity 50L 100L Customized
Test area load 5 kg 10 kg Customized
Outside dimensions (W x H x D) 1230 x 1830 x 1270 1380 x 1980 x 1370 Customized
Weight 800kg 1100kg N/A



Utility requirements



Allowable ambient conditions +5~30°C
Power supply AC380V, 50/60Hz, three phase , 30A
Cooling water supply pressure*6 02~0.4Mpa
Cooling water supply rate*6 8m³ /h
Operating cooling water temp. range +18 to 23 °C
Noise Level 70 dB or lower





Notes:



1. If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option

2. If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”

3. Temperature heat-up/pull down time are applicable only during independent chamber operation

4. If the automatically operated sliding door required, please select the “Automatically door package”

5. Air-cooled condenser / Water-cooled condenser both available



6. Apply on water-cooled condenser only



Safety Devices of Hot and Cold Temperature Shock Simulate Test Machine:

1. Hot chamber overheat protection switch

2. Cold chamber overheat protection switch

3. Air circulator overload alarm

4. Refrigerator high/low pressure protector

5. Compressor temperature switch

6. Air pressure switch

7. Fuse

8. Water suspension relay ( water-cooled specification only)

9. Compressor circuit breaker

10. Heater circuit breaker

11. Test area overheat/overcool protector

12. Air purge valve





Control



(Color LCD interactive touch-screen system)



Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.



Setting Interactive key input by touch panel
Display LCD (5.7 inches)
Temperature control function

Test area: exposure temp.

Hot chamber: pre-heating temp.

Cold chamber: pre-cooling temp.

PID control
Preset temperature range

High temperature: 60 to200’C

Low temperature: -78 to 0’C

Setting resolution 1’C
Input Thermocouple type T (Copper/Copper-Nickel)
Setting and indication ranges

Preset time: 0 min. to 99 hours and 59 min.

Preset cycle: 1 to 9,999 cycles

Accessory function

Timer preset

Overheat/ overcool protection

Power failure/ recovery selection

Temperature recovery time setting

Program memory

Automatic power shut-off

Programmed time display

Test completion mode selection

Trend graph

Alarm history display

Sensor calibration

RS-232/ USB communication
