| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | IEC6008-2-1, IEC68-2-3, IEC6008-2-30 |
| Model Number: | YY1021 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1 sets per month |
| Product Name: | Temperature And Humidity Controlled Chambers | Usage: | Temperature Humidity Test Chamber |
|---|---|---|---|
| Material: | Stainless Steel | Humidity Range: | 20％~98％RH |
| Temperature Volatility: | ± 0.5 ℃ | Power Supply: | AC220V, 50/60HZ |
| Temperature Uniformity: | ±1.5℃ | Humidity Volatility: | ±1.0％RH |
| Humidity Uniformity: | ± 2.0% RH | Controller Resolution: | 0.01℃, 0.01RH |
| High Light: | sand and dust test chamber,salt spray test chamber |
||

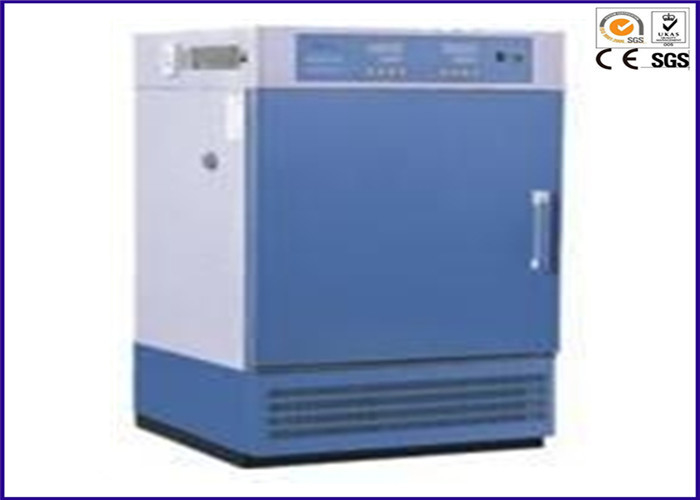

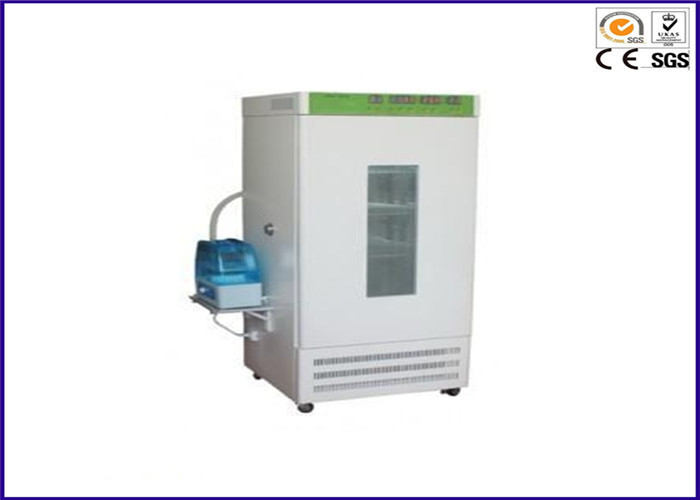

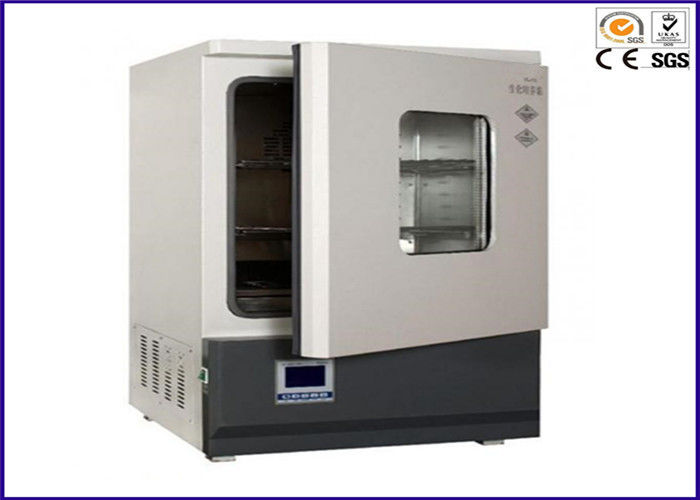

P.I.D. Control Temperature Humidity Test Chamber Incubator With CE Certification
Applications:
Temperature and Humidity Test Chamber is also named environmental test chamber, climatic test chamber, can be applied to test the properties of heat-resistance, cold-resistance, dry-resistance and humidity resistance of materials. It is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature and humid environment when storage, transport and using.
Main technical parameters:
Capacity | 80L | 100L | 150L | 225L | 408L | 800L | 1000L |
Interior Dimension (W×D×H)MM | 400*400* | 500*400* | 500*500* | 600*500* | 800*600* | 1000*800* | 1000*1000* |
Exterior Dimension (W×D×H)MM | 1000*870* | 1050*870* | 1050*970* | 1150*970* | 1350*1150* | 1450*1300* | 1470*1400* |
Temperature Range | 0℃~150℃; -20℃~150℃; -40℃~150℃; -60℃~150℃; | ||||||
Humidity Range | 20％~98％RH | ||||||
Temperature Volatility | ± 0.5 ℃ | ||||||
Temperature Uniformity | ±1.5℃ | ||||||
Humidity Volatility | ±1.0％RH | ||||||
Humidity Uniformity | ± 2.0% RH | ||||||
Humidity Area | Notes: Environment temperature:+25℃; R.H.≤85% | ||||||
Heating/Cooling | 3℃/min (Room temperature to high temperature 150℃); 1℃/min (room temperature to minimum temperature). | ||||||
Control Mode | Balanced temperature & humidity control mode, PID programmable adjustable. | ||||||
Communication port | RS232 print interface. | ||||||
Refrigeration system | Fully enclosed Tecumseh compressor France original, environmentally friendly refrigerant gas R404A. | ||||||
Programmable Mode | Has adopted Korean TEMI850 controller English display, 120 program x 100 step and 100hours/step setting capacity (each step means specific temperature, humidity and test time), 999 cycles circulation setting, and enclose multiple sets of PID control function. | ||||||
Controller Resolution | 0.01℃, 0.01RH | ||||||
Exterior Material | SUS#304 stainless steel material | ||||||
Interior Material | 1.2mm thickness SUS#304 stainless steel, rigid polyurethane foam+efficient ultra-fine glass cotton insulation materials. | ||||||
Related Standard | 1. IEC6008-2-1-2007 Electronic Electrician Product Environmental Test Part 2: test methods --Test Method A: low temperature. | ||||||
Air Circulation System | Inner air circulation fan, wind channel and stainless steel cycle fan, through the top window and air diffuser, the wind will out uniformly from the top, which could reach the purpose of control temperature uniformly. | ||||||
Heating System | Adopt heating pipe P.I.D. control the heating so keep temperature balance. | ||||||
Humidification& | Adopt outside water circulation humidification, and compressor is used for dehumidification, P.I.D. control the volume of humidification. | ||||||
Safety Devices | Water level protection, water shutdown protection, over-temperature protection, high-pressure compressor protection, compressor thermal protection, compressor overload protection, fast fuse, buzzer alarm, overload protection. | ||||||
Door of Chamber | Single open door, anti-explosion, anti-condensation electric heating device, vacuum auto-defog transparent window, window internal bulb. | ||||||
Test Lead Hole | Φ50mm, enclosed with relative temperature preservation and heat insulation parts. | ||||||
Power | AC220V±10%, 50/60HZ 3 phase (80L, 100L, 150L); AC380V±10%, 50/60HZ, 3 phase(225L, 408L, 800L, 1000L) | ||||||
The third Party Certificate | Certified by ISO9001 quality control system and CE requirement | ||||||
