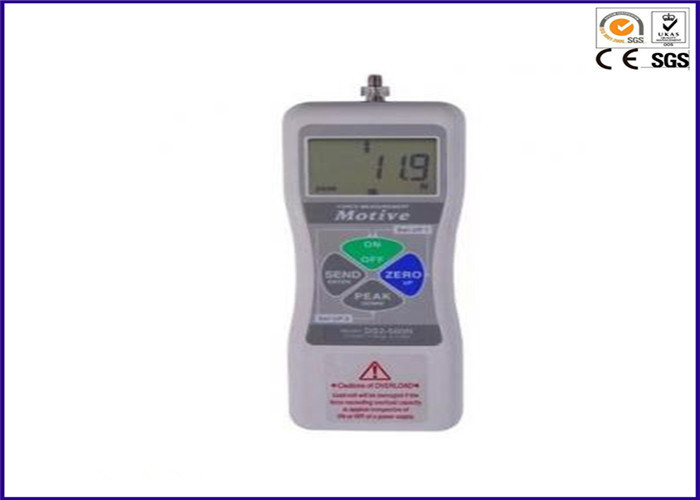

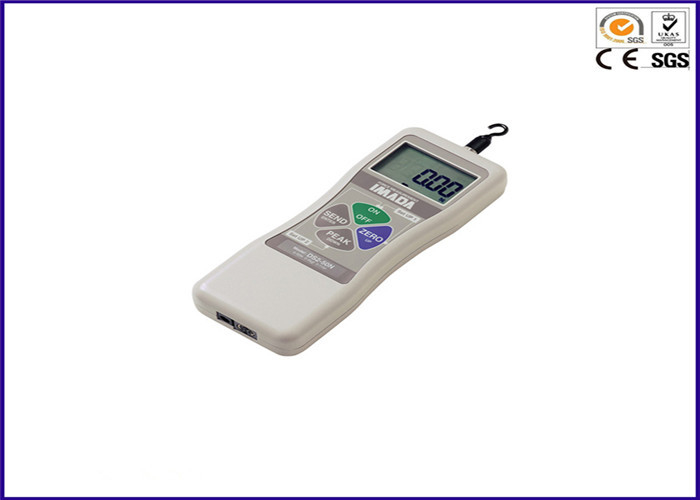

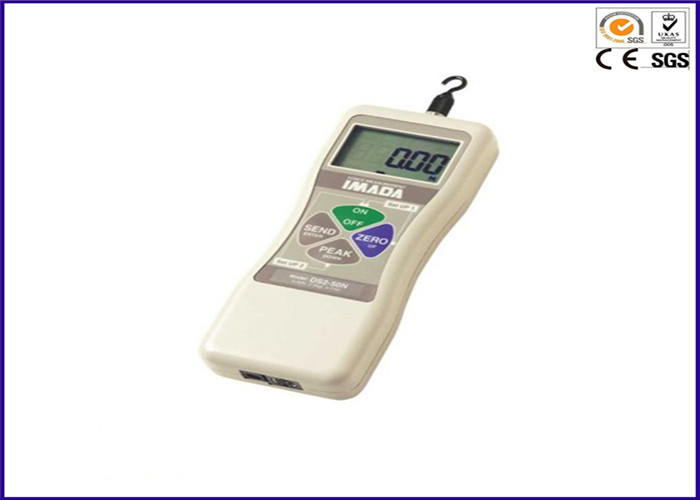

DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display

DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display

  • DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display
  • DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display
  • DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display
  • DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display
DS2 Imada Digital Force Gauge , Push Pull Force Gauge With Large LCD Display
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: UL, CE, ISO
Model Number: YY1123
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Toys Testing Equipment Usage: DS2 Imada Digital Push Pull Force Gauge
Overload Capacity: 200% F.S Accuracy: ± 0.2% F.S.
Data Processing Speed: 1000 Data/second Display Update: 10 Times/second
Outputs: RS-232C, Digimatic Operating Temperature: 32° To 100°F (0° To 40°)
High Light:

screw torque driver

,

tesla gauss meter





LCD Display DS2 Imada Digital Force Gauges, Push Pull Force Gauge



Descriptions:

Imada Digital Force Gauges , push pull force gauge





Features:



1. Simple operation, easy-to-use, accurate

2. Large easy-to-read LCD display

3. Ergonomic, durable, heavy-duty metal construction

4. Push-button selectable lbf, kgf, and Newton units

5. RS-232C, Digimatic and analog outputs

6. Programmable High/Low setpoints with LCD indicators

7. Overload capacity 200% F.S.

8. Overload alarm, display flashes at overload limit

9. Low battery icon

10. Runs on internal NI-MH batteries or AC adapter

11. Selectable real time or peak mode operation

12. Push-button tare function

13. Reversible display

14. Set of six adapters, AC charger/adapter and carrying case





Applications:



DS2 digital force gauges feature a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments.

When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you.

If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and 1VDC analog) enable you to acquire data for permanent record.Imada DPS Digital Force Gauge Kit

Choose a range or ranges that best suit your application. All DS2 gauges are sold in a complete kit with gauge, hard plastic carrying case,

a set of six measuring adapters and AC adapter/charger. All DS2 gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available.





Specifications:



1. Accuracy: ± 0.2% F.S. ± LSD

2. Selectable units: lbf (ozf), kgf (gf) or newtons

3. Overload Capacity: 200% of F.S. (overload indicator flashes beyond 110% of F.S.)

4. Data Processing Speed: 1000 data/second (30 data/second rate selectable)

5. Display Update: 10 times/second

6. Power: Rechargeable Ni-MH battery pack or AC adaptor

7. Battery Indicator: Display flashes battery icon when battery is low

8. CPU: 8-bit CMOS

9. Setpoints: Programmable high/low setpoints with LCD indicators

10. Outputs: RS-232C, Digimatic and ±1 VDC analog output

11. Operating Temperature: 32° to 100°F (0° to 40°)





Item Capacity Value

Minimum reading value



Measuring rod
DS2-2N 2N (200gf) 2.000N(200.00gf) 0.001N (0.1gf) M6
DS2-5N 5N (500gf) 5.000N(500.00gf) 0.001N (0.1gf) M6
DS2-20N 20N (2kgf) 20.00N(2.000gf) 0.01N (0.001kgf) M6
DS2-50N 50N (5kgf) 50.00N(5.000gf) 0.01N (0.001kgf) M6
DS2-200N 200N (20kgf) 200.0N(20.00gf) 0.1N (0.01kgf) M6
DS2-500N 500N (50kgf) 500.0N(50.00gf) 0.1N (0.01kgf) M6
DS2-1000N 1000N (100kgf) 1000N(100.0gf) 1N (0.1kgf) M6
