20KN 2T Compressive Strength Test Machine For Paper Container / Carton Package

China 20KN 2T Compressive Strength Test Machine For Paper Container / Carton Package supplier
20KN 2T Compressive Strength Test Machine For Paper Container / Carton Package supplier 20KN 2T Compressive Strength Test Machine For Paper Container / Carton Package supplier

Large Image :  20KN 2T Compressive Strength Test Machine For Paper Container / Carton Package

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: GB/T4857.4 GB/T4857.16 ISO2872、ASTM D642
Model Number: YY1408

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Package Testing Equipment Usage: Carton Compression Tester
Unit Exchange: Kgf, Ibf, N Capacity: 20KN 2T
Accuracy: ±1% Load Resolution: 1/25,000
Test Space: 1000x1000x1200mm Test Speed: 5~100mm/min
Weight: 1550kg Power: AC 220V 5A

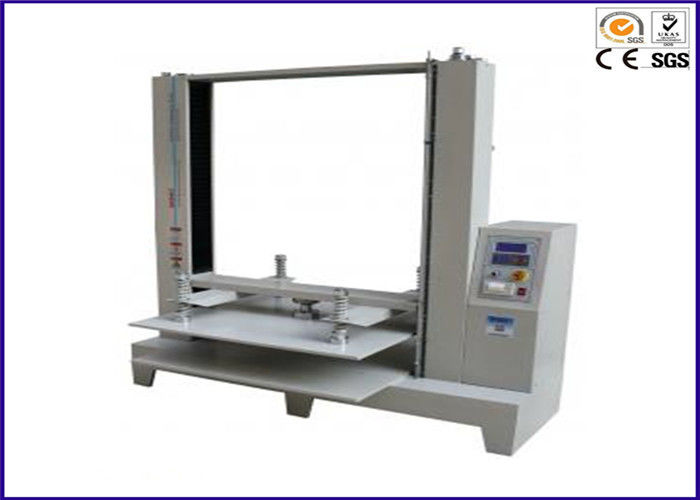

20KN 2T Paper Container Carton Package Compression Testing Equipment





Description:



Paper Container Carton Compression Testing machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or being carried, and it can be used to do the stacking test. The result of the test can be used as the important reference of the height of the pilling up of the finished product or the important basis of the packing design.



Features:


1. Taiwan AC frequency conversion motor drive;

2. Using common screw to up and down, result is accurate and stationary;

3. Using the high precision explosion-proof type LOAD CELL;

4. Measure by using the microcomputer controlled instrument;

5. Can print test data;

6. High precision, low prices;

7. High sensitivity, can judge the instantaneous





Specification:



Model YY1408
Capacity (optional) 20KN 2T
Unit (switchable) N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
Load resolution 1/25,000
Load accuracy ±1%
Load magnifying rate stepless
Test space 1000x1000x1200mm
Test speed 5~100mm/min
Stroke resolution 0.001mm
Software Microcomputer control
Motor AC motor
Dimension (WxDxH) 1950x1200x2000mm
Weight 1550kg
Power supply AC220V 5A or specified by user





 20KN 2T Compressive Strength Test Machine For Paper Container / Carton Package
