| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | QB/T 2918-2007 |
| Model Number: | YY1302 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 00.00 |
| Packaging Details: | plywood case |
| Payment Terms: | Western Union, T/T, L/C,Paypal |
| Supply Ability: | 3pcs /week |
| Stroke (exclude The Grips): | 1050 Mm | Effective Width: | 570 Mm |
|---|---|---|---|
| Speed Accuracy: | ±0.5% | Dimension (W×D×H): | 3∮, 220V, 20A / 3∮, 380V, 15A (or Specified By User) 50Hz/60Hz |
| Name: | Universal Tensile Machine | ||
| High Light: | textile lab equipment,universal tensile machine |
||
500KN Universal Testing Equipment AC Servo Motor Tensile Testing Machine
Description:
universal tensile tester is designed for measuring strength in tension, compression, bend, flexure, tear, peel, shear and adhesion testing. It is widely used for metal, geotextile, hard plastic, timber, rubber, leather and other rigid materials. Comparing with other models of tensile strength tester, the tester has a wider test space and larger capacity.
Specification:
|
Model |
YY1302-1 |
YY1302-2 |
YY1302-3 |
YY1302-4 |
YY1302-5 |
YY1302-6 |
|
|
Capacity (optional) |
50kN, 100kN |
200kN |
300kN |
500kN |
1000kN |
||
|
Unit (Switchable) |
kgf, lbf, N, kN, kPa, Mpa |
||||||
|
Load Resolution |
1/200,000. 1/300,000 or specified by user |
||||||
|
Load Accuracy |
±1.0%. ±0.5% (capacity of load cell is 1/250% above) |
||||||
|
Load Range |
Rangeless (full scales at the same ampification) |
||||||
|
Stroke (exclude the grips) |
1050 mm |
1280 mm |
|||||
|
Effective width |
570 mm |
730 mm |
|||||
|
Test Speed |
0.0001~500 mm/min Selectable |
0.001~250 mm/min Selectable |
0.001~200 mm/min Selectable |
||||
|
Speed Accuracy |
±0.5% |
||||||
|
Stroke Resolution |
0.00003mm |
||||||
|
Computure Acquisition Frequency |
200 times/sec (or 500 times/sec) |
||||||
|
Communication Interface |
USB 2.0 system |
||||||
|
Motor |
AC servo motor |
||||||
|
Dimension (W×D×H) |
Main Unit |
114 × 70 × 214 cm |
114 × 70 × 210 cm |
126 × 80 × 222 cm |
126 × 85 × 247 cm |
126 × 90 × 275 cm |
142 × 110 × 320 cm |
|

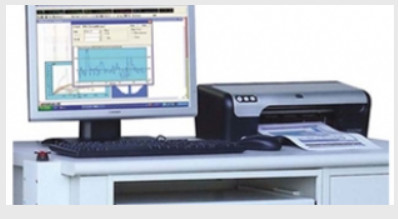

Computer / Desk |
109 × 65 × 116 cm |
||||||
|
Weigth (approx.) |
Main Unit |
717kg (excluding control cabinet and grips) |
717kg (excluding control cabinet and grips) |
1050kg (excluding control cabinet and grips) |
1230kg (excluding control cabinet and grips) |
1750kg (excluding control cabinet and grips) |
2500kg (exclude the grips) |
|
Computer / Desk |
102 kg |
||||||
|
Power |
3∮, 220V, 20A / 3∮, 380V, 15A (or specified by user) 50Hz/60Hz |
3∮, 220V, 25A / 3∮, 380V, 20A (or specified by user) 50Hz/60Hz |
|||||

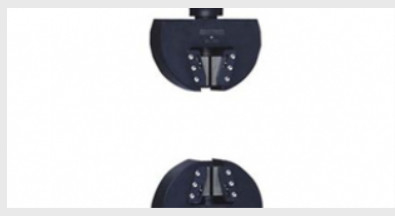

The accessories such as the different grips, elongation measuring-devices... etc. are equipped according to the requirements specified in the contract; our sales representative will also give the proper suggestions to our customer beforehand.
