Stainless Steel Smoke Density Apparatus , 3 Meter Smoke Density Test For Cables

China Stainless Steel Smoke Density Apparatus , 3 Meter Smoke Density Test For Cables supplier
Stainless Steel Smoke Density Apparatus , 3 Meter Smoke Density Test For Cables supplier Stainless Steel Smoke Density Apparatus , 3 Meter Smoke Density Test For Cables supplier

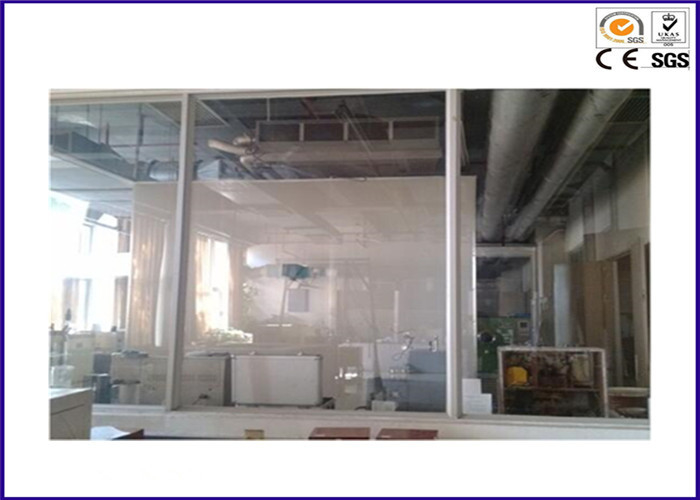

Large Image :  Stainless Steel Smoke Density Apparatus , 3 Meter Smoke Density Test For Cables

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: IEC 61034 - 1 & 2, BS 6853
Model Number: YY707

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Smoke Density Tester Usage: 3m3 Cable Smoke Density Test
Frame Material: Stainless Steel Frame Dimension: 3,000(W) × 3,000(D) × 3,000(H)
Light Source Power: DC12V, 100W Light Source Focus Angle: 48˚ - 4.5˚
Photo Cell Diameter: Ø45 Mm Exhaust Blower Fan Flow: 7 M3/min ~ 15 M3/min
Power: AC220V, 60Hz Rotation Angle: 0~90˚ ± 5˚



IEC 61034 Part 1 and 2 Three Cube Meter 3m3 Cable Smoke Density Tester





3 Meter Smoke Density Tester is the testing equipment measuring the smoke generated when the cable or optical cable is placed horizontally and burn under definite fire resource in the specified condition (3m3 chamber required by IEC61034).

This equipment is important to measure the smoke generation from the value of light source penetration through the smoke generated when the cable exposed to the specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%) 1L±0.01L is burned.




IEC 61034 - 1 & 2 - Measurement of Smoke density of cables burning under defined condition;

BS 6853 - Code of practice for fire precautions in design and construction of passenger carrying trains;





Item Name

IEC61034-1&2 3 Cube Meter Cable Smoke Density Tester


Frame dimension

3,000(W) × 3,000(D) × 3,000(H)


Frame material

Stainless Steel SUS 301


Transparent sealed window

100 × 100 mm


Foundation Fixed

Fixture unit


Light Source Power

DC12V, 100W


Light Source Focus Angle

48˚ - 4.5˚


Light Source Focus Intensity



Photo Cell Diameter

Ø45 mm


Photo Cell Cell Type

Selenium Cell


Exhaust Blower Fan Flow

7 m3/min ~ 15 m3/min


Exhaust Blower Size

246(W) x 220(D) x 205(H) mm


Exhaust Blower Material

Stainless Steel (Inner Fan)


Exhaust Blower Power

AC220V, 60Hz, φ1, 210W


Exhaust Blower Flow Rate(max)

8.0 M3 /min


Power Supply

AC220V, 60Hz



normal 300kg.f.cm , max 480 kf.f.cm


Rotation Angle

0~90˚ ± 5˚


Wind Velocity

≤ 15m/sec


Control Rack Dimension

(W) 730 X (D) 650 X (H) 1,400





1. Chamber internal area is 3000mm±30mm and it's structured as Cubic Enclosure with appropriate fixed iron frame angle;

2. It's configured with a door with test glass windows and in both faces of the opposite side there's a sealed transparent window (minimum 100mmX100mm) with a horizontal light measure system that allows light penetration;

3. Designed to prevent direct sunlight exposure and severe weather change in Enclosure;

4. Photocell and Light Source are located in the middle part of both windows of the wall surface in the opposite side to avoid physical contact;

5. A lamp to provide regular light is installed;

6. Two types of auto Filter system (Carrusel) are installed to automatically calibrate the transmissivity of light;

7. The reduction of light by smoke is measured using Photocell;

8. In order to verify accordingly the intensity of radiation to measure light change by self-emission, the equipment has been designed to fit various kind of filter in the Light Source;

9. Support system to allow separate fitting of Light Source and Photocell in the outer wall;

10. The Light Source is a halogen lamp with a clean crystal lamp and tungsten filament;

11. Average power : 100W, Average voltage: DC12v, Average velocity of light : 2000 lm~3000 lm, and Average color temperature : 2800K~3200K;

12. The Receptor Photocell is selenium or silicone type and has a spectrum reaction conform to Photopic Observer (similar to a human eye) of the International Commission on Illumination (CIE);

13. A heating system is installed within the cube to swiftly match the standard temperature (25ºC±5ºC) in the initial test;

14. We seek tester's safety and convenience through an Auto ignition system;


Test Result:


Flameout time(min);

Time to max Ao;

Min light transmittance (%);

Add photo feature of carbonization area;
