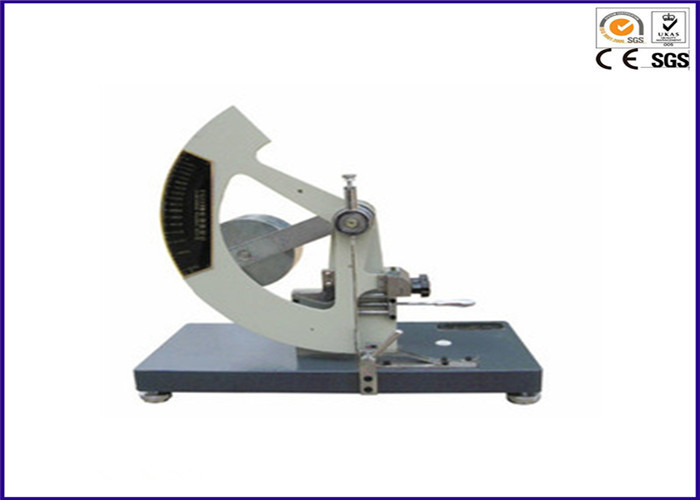

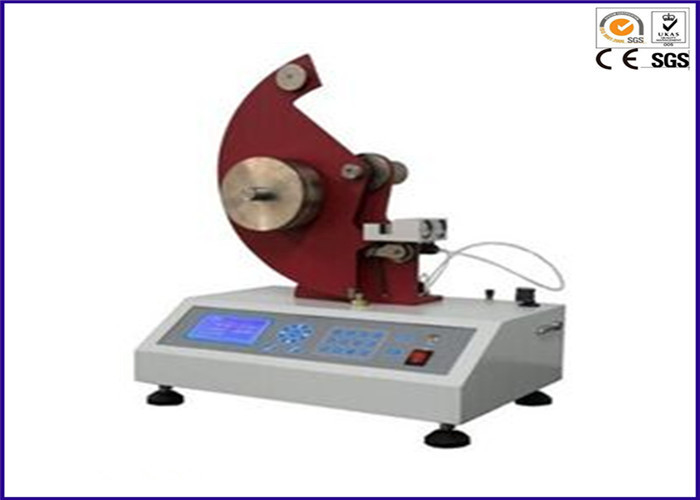

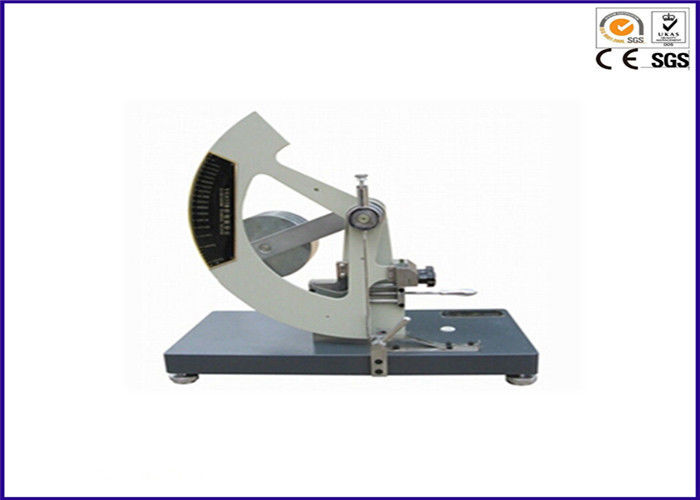

LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester

LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester
LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester

Large Image :  LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D1424,DIN 53862,EN ISO 13937-1,ISO 4674-2,ISO 9290,M&S P29,NEXT 17
Model Number: YY822
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Product Name: Textile Testing Equipment Usage: Elmendorf Tearing Test
Distance Between Clamps: 7.0 ± 0.25 Mm Tearing Distance: 43 ±0.15m
Slit Size: 20 ± 0.2 Mm Power Supply: 220V,50Hz
Weight: 58KG Dimensions: 490 X 430 X 680 Mm
High Light:

textile testing machines

,

fabric stiffness tester


LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester
Description:

Elmendorf Tearing Tester are accurate, low-cost and high quality falling pendulum tear testing Instruments with analog display for the determination of the average force required to propagate a single-rip tongue-type tear starting from a cut in paper, cardboard, plastics, non-woven and woven fabrics, with proper configuration.
Elmendorf Tearing Tester meeting ASTM standards is suitable for most fabrics including woven, layered blankets, napped pile, blanket, and air bag fabrics, and provided the fabric does not tear in the direction crosswise to the direction of the force application during the test. The fabrics may be untreated, heavily sized, coated, resin-treated, or otherwise treated. This test method covers the measurement of the average force required to propagate a single-rip tear starting from a cut in a non-woven fabric using a falling-pendulum (Elmendorf) apparatus.



Standards:

Textile:ASTM D1424,DIN 53862,EN ISO 13937-1,ISO 4674-2,ISO 9290,M&S P29,NEXT 17
Plastics:ASTM D1922,ISO 6383-2,JIS K 7128-2,NF T54 141
Nonwovens: ASTM D5734,WSP 100.1
Paper:APPITA P 400,ASTM D 689,BS 4468,CSA D9,DIN 53128,EN 21974,ISO 1974


Features:

1.Latest design with modern sophisticated look.
2.Pneumatic operated clamping and pendulum release ensures repeatable test result.
3.The built-in microcomputer handles all calculations and set-up functions.
4.Tearing force displayed digitally.
5.Easily interchangeable pendulums.
6.Selectable units: newtons,grams-force,millinewtons,lbs-force,percentage of pendulum capacity.
7.Easy to calibrate using the check weights(optional).
8.PC & PRINTER connection.
9.Cutting template supplied for preparing samples.
10.Supplied with calibration & inspection certificates.


Technical parameters:


Measuring pendulum range

16N
32N (By adding Augmenting weight)
64N (By adding Augmenting weight)

Unit of measurement

CN, N , gf , lbf

Distance between Clamps

7.0 ± 0.25 mm

Tearing Distance

43 ±0.15m

Slit Size

20 ± 0.2 mm

Tollerance range

20-80 % of each full scale, settable range or full scale

Angular resolution

high resolution digital optical encoder

Display

LCD display backlight

Blade

steel

Data port

RS232 port for printer connection and 3 pin Mini-DIN connector for PC.

Statistics

Force min.max.mean,CV%,St.Deviation,Range%

Language

English

Template Size

As per ASTM standard

Dimensions

490 x 430 x 680 mm

Power supply

220V,50Hz

Weight

58KG


LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester 0

LCD Display Paper and Textile Lab Testing Equipment 0-64N Elmendorf Tearing Tester 1
