BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester

BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester
BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester

Large Image :  BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: BS 12132, EN 12132/1, GB/T 12705-1
Model Number: YY823
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Product Name: Textile Testing Equipment Usage: Fabric Downproof Test
Clamp Spacing: 44mm Eccentricity: 25±0.5mm
Test Speed: 135r/min Power Supply: 220V,50Hz
Weight: 20Kg Dimensions: 30x37x26cm
High Light:

textile testing machines

,

fabric stiffness tester


BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester







Description:



Downproof Tester, To determine the downproof capability of fabric used for downgarmet, quilt etc, which are full with down, feather and fibers.
Take an agreed size specimen from the fabric to be tested to sew a pocket at specified size , fill with a certain weight of down, feathers or a mixture of both, then sew the fabric up to be a testing bag. Clamp the both sides of the bag in the holder. After test to determine the downproof ability of the fabric by calculating the number of down and feathers through the fabric.





Standards:



BS 12132, EN 12132/1, GB/T 12705-1





Parameters:



1. clamp spacing: 44mm, eccentricity: 25±0.5mm

2. test speed: 135r/min

3. sample dimension: sample(140±5)mmX(420±10)mm,sample mat 120mmX210mm

4. infilling: down feather,feather or the mixture

5. test times: 2700 revolution

6. counter: LED liquid crystal display 0~99999 times can be set

7. volume: (WxDxH) 30x37x26cm

8. weight(about): ≈20Kg

9. power: 1∮ AC 220V 3A

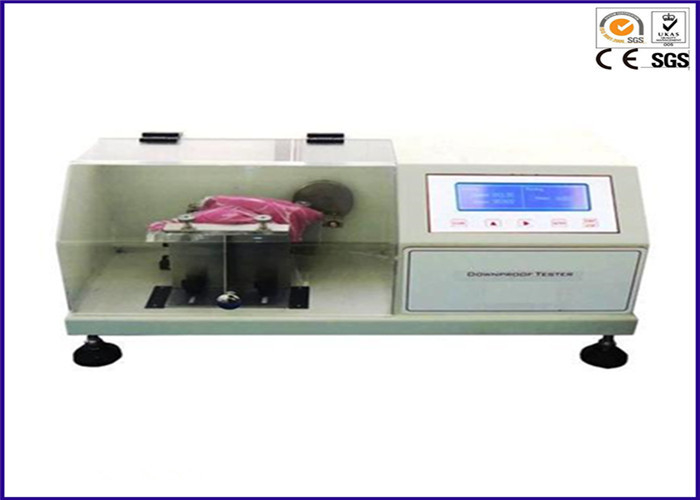

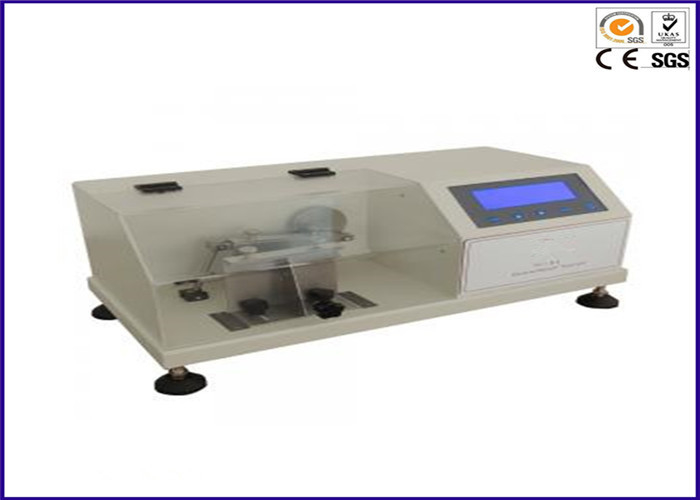

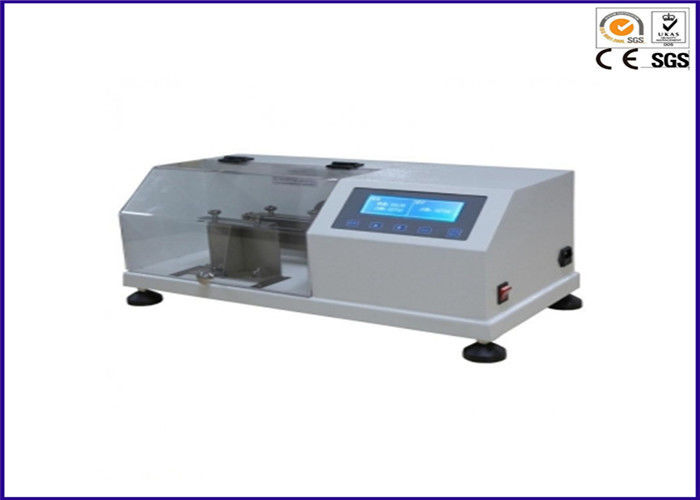

BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester 0



BS 12132 Textile Testing Equipment, 135r/min Fabric Downproof Tester 1
