| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | GB/T4802.1-2008, DIN 53863.2 |
| Model Number: | YY824 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 sets per month |
| Product Name: | Textile Testing Equipment | Usage: | Martindale Abrasion Test |
|---|---|---|---|
| Specimen Size: | 112.8mm With Area 100cm2 | Rubbing Times: | 1~9999S |
| Rubbing Speed: | 60 RPM | Power Supply: | AC220V 50Hz 60W |
| Weight: | 35Kg | Dimensions: | 540*250*345 Mm (L*W*H) |
| High Light: | textile testing machines,fabric stiffness tester |
||

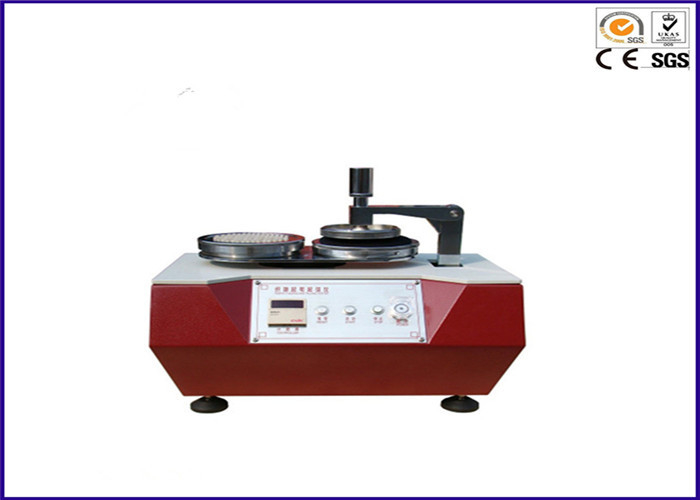

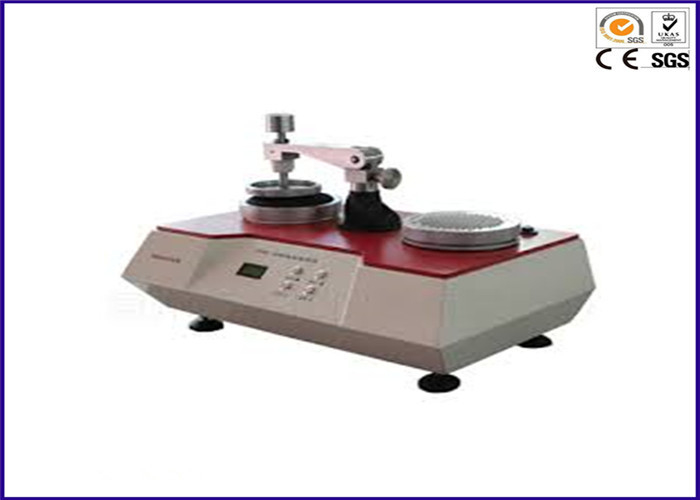

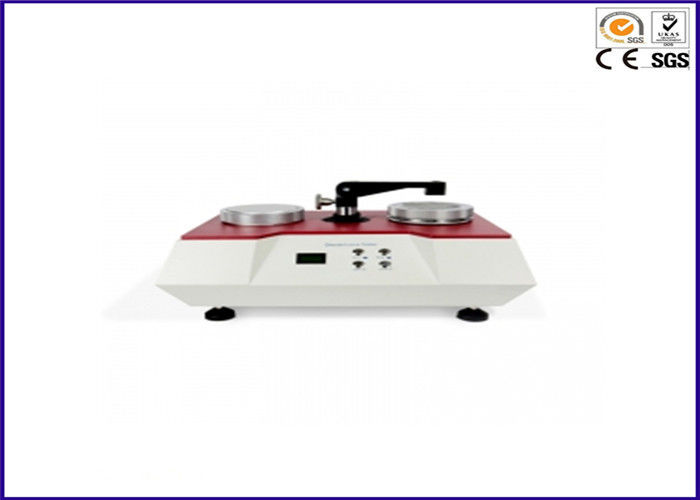

4 Work Stations Martindale Abrasion Tester / Pilling Textile Testing Equipment
Description:
1. This tester can check the abrasion and pilling capability for various textile products rubber and outside layer, lining or underlayer of the footwear or the similar fabric.
2. Using area: Martindale abrasion and pilling tester to test the abrasion of of the lining, textiles and shoes leather
Features:
1. Driven by synchronous motor, less maintenance
2. Provided different pressing weight with 490cN, 590cN and 780cN
3. Rubbing times is presettable and duly displayed on LED panel.
4. Stop automatically after reaching preset rubbing times.
5. Rubbing times can be accumulated when testing
6. Two working mode, rubbing times increase from 1 or decrease from preset times
7. The effective length of brush adjustable to control rebbing effects
Standard:
GB/T4802.1-2008, DIN 53863.2
Specifications:
1. Pilling trajectory: circular track of 40mm diameter
2. Brush with adjustable height: 2~12mm
3. Pressure for specimen:
Chemical Fiber fabric: 590cN
Combed wool fabric:780cN
Crude wool fabric 490cN
4. Specimen size: 112.8mm with area 100cm2
5. Rubbing times: 1~9999S
6. Rubbing speed: 60 RPM
7. Power: AC220V 50Hz 60W
8. Dimension: 540*250*345 mm (L*W*H)
9. Weight: 35KG
10. Accessories: power line 1pcs
