ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source

China ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source supplier
ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source supplier ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source supplier ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source supplier ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source supplier ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source supplier

Large Image :  ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: EN ISO 9239-1, ASTM E648, ASTM E970, NFPA 253
Model Number: YY516

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 25 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1 set per month
Contact Now
Detailed Product Description
Product Name: Building Material Fire Tester Usage: Critical Radiant Flux Test
Material: Stainless Steel Heat Flux Measurement Range: (0-15) Kw / M2
Heat Flux Meter Accuracy: ± 0.2Kw / M2 Power: 220V 50HZ
Size: L1420 * W1200 * H2300MM Weight: 750kg





ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source





Description:

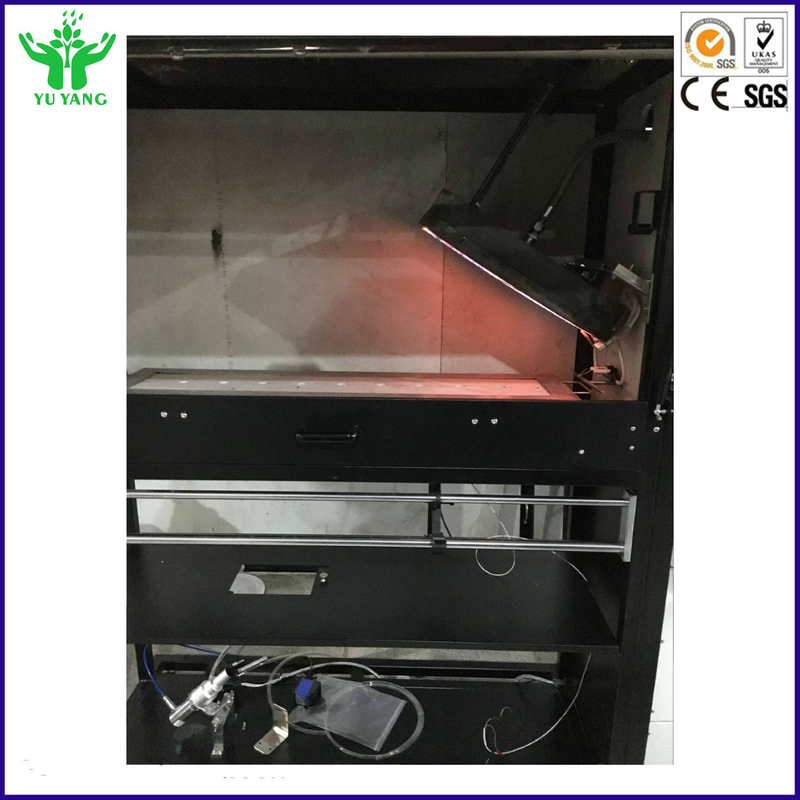

FLOORING RADIANT PANEL TEST (CRITICAL RADIANT FLUX), ASTM E 648, NFPA 253, FED. STD. NO. 372, NBSIR 75-950: The Floor Radiant Panel apparatus involves a horizontally mounted floor covering test sample which receives radiant energy from a gas-air fueled radiant panel mounted above one end of the sample and inclined at an angle of 30o. The radiant panel generates a radiant flux profile along the length of the sample ranging from a maximum of 1.1 W/cm2 immediately under the panel to approximately 0.1 W/cm2 at the end of the test sample. A gas fired pilot burner is used to initiate the ignition in the sample. The distance the flooring system burns to extinguishment is converted to watts per square centimeter (W/cm2) and is reported as critical radiant flux (CRF). This is the minimum radiant energy a fire needs to sustain flame propagation in the flooring system. In this test, a higher number indicates a more flame-resistant system; i.e., 0.45 W/cm2 is better than 0.22 W/ cm2.


Standard:

GB / T11785 "flooring combustion performance measurement - a radiant heat source”
ISO9239-1:2002 “flooring combustion performance Part 1-the combustion performance is determined with radiant heat resource”
ASTM E648:Standard Test Method for Critical Radiant Flux of Floor-covering Systems Using a Radiant Heat
ASTM E970:Standard Test Method for Critical Radiant Flux of Exposed Attic Floor Insulation Using a Radiant Heat Energy Source
NFPA 253:Standard Test Method for Critical Radiant Flux of Floor Covering Systems Using a Radiant Heat Energy Source


Parameter:

1. Power supply:AC 220V,50HZ;
2. Total power:2KW;
3. Timer: timing accuracy < 1s/h;
4. Heat flux measurement range: (0-15) Kw / m2;
5. Heat flux meter accuracy: ± 0.2Kw / m2;
6. Heat flux meter accuracy: <± 3%;
7. Thermal radiation temperature measurement range: 400-600 ℃, accuracy ± 0.5 ℃;
8. Blackbody temperature error: ± 5 ℃;
9. Exhaust speed: (2.5 ± 0.2) m / s;
10. Exhaust capacity: (39-85) m3 / min;

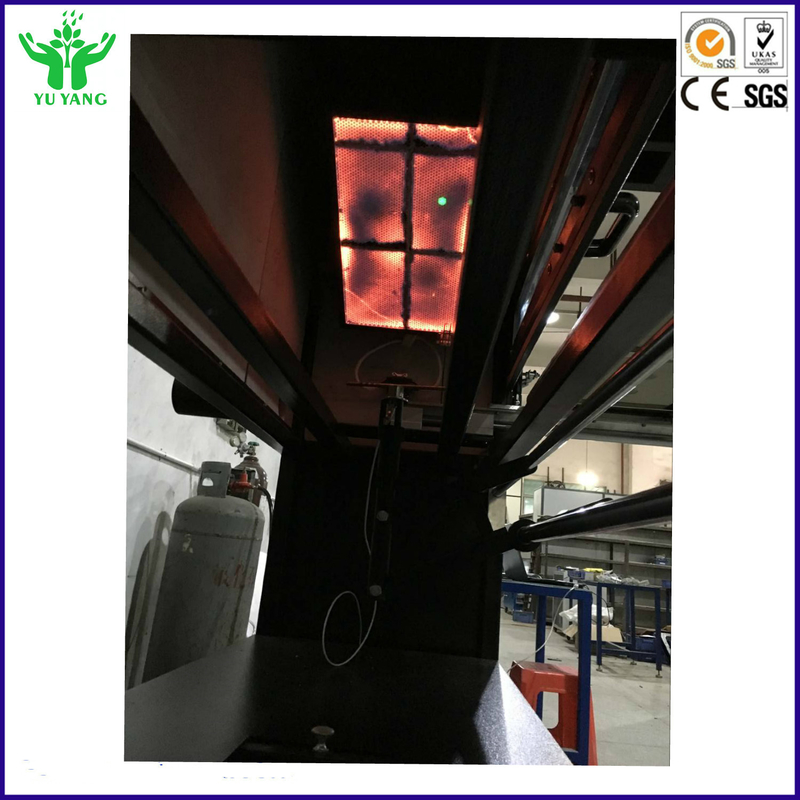

11. Porous refractory radiant panel size: 300mm × 450mm, about 900 ℃ high temperature capability;
12. Thermocouple: K diameter stainless steel sheathed thermocouple of 3.2mm;
13. Heat flux distribution requirements: at 200mm : (9.1 ± 0.4) KW / m2;
at 400mm : (5.0 ± 0.4) KW / m2;
at 600mm : (2.4 ± 0.2) KW / m2;
14. Combustion gases: propane (Customer);
15. Combustion gas flow rate: (0.026 ± 0.002) L / S;
16. Combustion burner: outer diameter ¢ 10mm inner diameter ¢ 6mm, burner tube hit 35 ¢ 0.7mm hole;
17. Flame height: 60 ~ 120mm adjustable;
18. Ignition system: high-voltage electronic ignition;
19. Powerful exhaust system: This machine is equipped with a powerful exhaust fan, when the test is completed, the system will start the exhaust fan exhaust outside.


Specification:

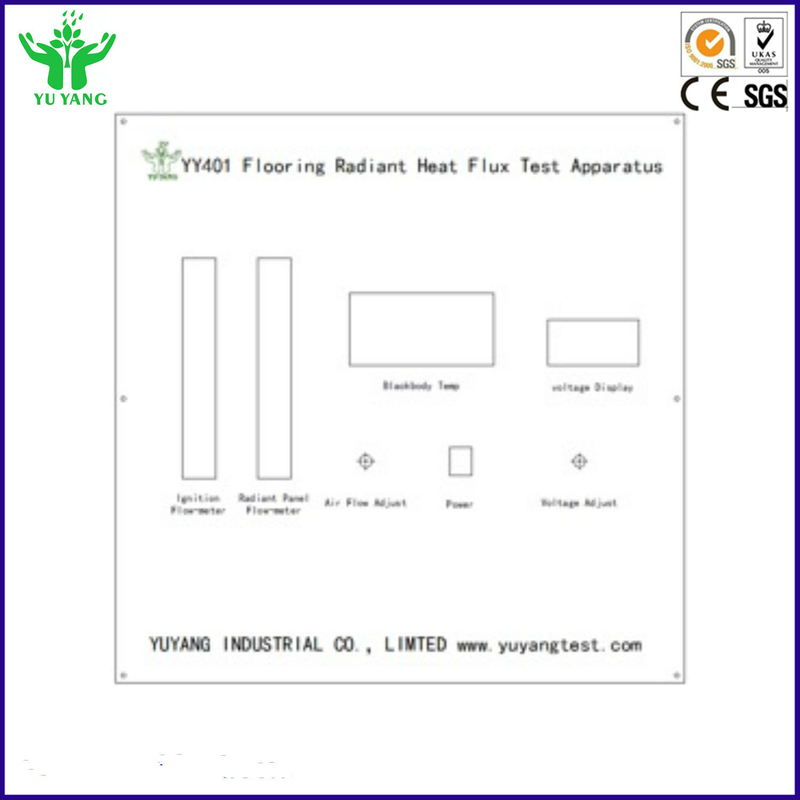

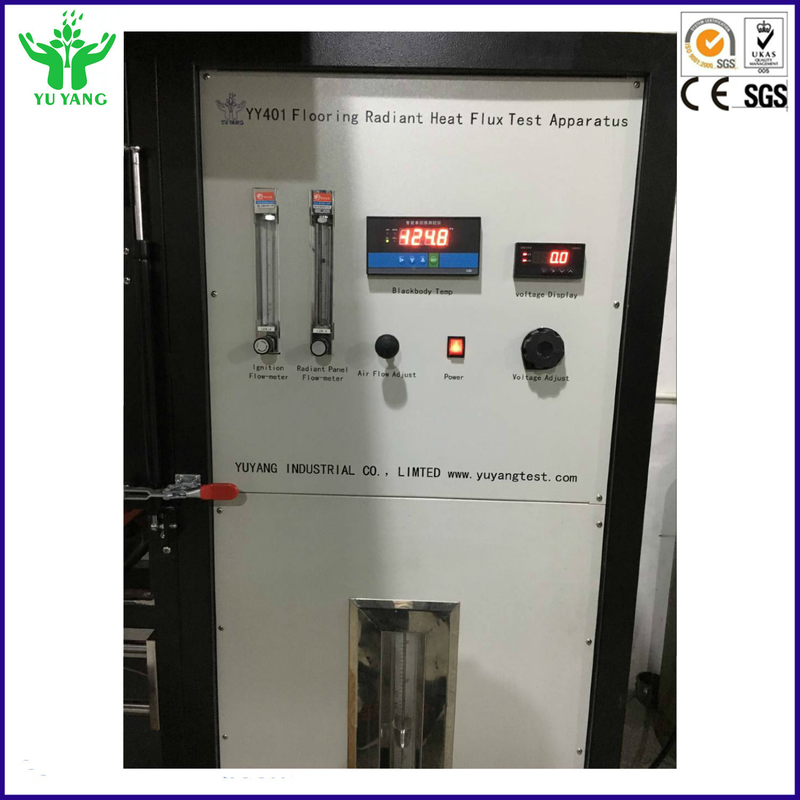

1. The apparatus is made of combustion chamber and control box;
2. Combustion chamber size: L1420 * W1200 * H2300 (mm);
3. Outline dimension:L2530*W1270*H2700mm(including electric cabinet);
4. Control box / combustion chamber material: high quality (t = 1.2mm) 304 is stainless steel, CNC machining, circular nice shape;
5. Blowtorch: made by our company, 304 stainless steel material, in full compliance with GB / T11785 standards;
6. Other mechanical parts are made of 304 stainless steel or A3 material thicker plating, anti-corrosion and rust.

ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy SourceAnemometer         ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source Optical Filter

ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source

ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source

ISO 9239-1 ASTM E648 Fire Tester Critical Radiant Flux with a Radiant Heat Energy Source
