4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm

China 4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm supplier
4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm supplier 4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm supplier 4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm supplier 4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm supplier

Large Image :  4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: DIN 4843 、QB/T2226、SARATM 154
Model Number: YYX-009

Payment & Shipping Terms:

Packaging Details: Standard export wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Volume: 660×580×420mm(L×W×H) Max Space From Moving Grip To Fixed Grip: 310mm(max)
Moving Grip Stroke: 35mm Moving Grip Speed: 60±6cycles/min
Clamping Piece: 4sets Template Rule: Angle52.2°,Space120mm
Weights: 250±3g,4pcs Power: AC110V,10A/220V,5A



4sets Shoelace / shoestring / latchet Abrasion Resistance Tester 35mm



Detailed Descriptions:



Shoelace Abrasion Resistance Tester is used to determine the abrasion resistance of shoe laces.

Shoelaces unit is: take 2pcs shoelaces, The middle phase hook , forming 1pcs on right, the other on left , the machine right clamp (dynamic) holding right both ends, Clip after natural 25 mm apart on both ends, with template to assist, make right shoelace on 52.2 °induce the left , Hook point and pinch 120 mm apart, then use the left clamp (Static) holding the left side, the other end in a pulley groove, and suspension weights below, clamp point and groove natural 35 + 5 mm apart, when experiments the dynamic clamp with constant speed around the straight line reciprocating motion, make two shoelaces mutual friction on middle,To friction specified test frequency or when lace rupture, recorded the number of friction times





Specifications:



Max space from moving grip to fixed grip:310mm(max)
Moving grip stroke:35mm
Moving grip speed:60±6cycles/min
Clamping piece:4sets
Template rule :Angle52.2°,Space120mm
Weights:250±3g,4pcs
Counter:LCD,0~999,999
Motor:DC Servo 180W
Volume: 660×580×420mm(L×W×H)
Weight:66kg
Power:AC110V,10A/220V,5A



Max space from moving grip to fixed grip

310mm(max)
Moving grip stroke 35mm
Moving grip speed 60±6cycles/min
Clamping piece 4sets
Template rule  Angle52.2°,Space120mm
Weights 250±3g,4pcs
Counter LCD,0~999,999
Motor DC Servo 180W
Volume 660×580×420mm(L×W×H)








Standard:



DIN 4843 ,QB/T2226,SARATM 154

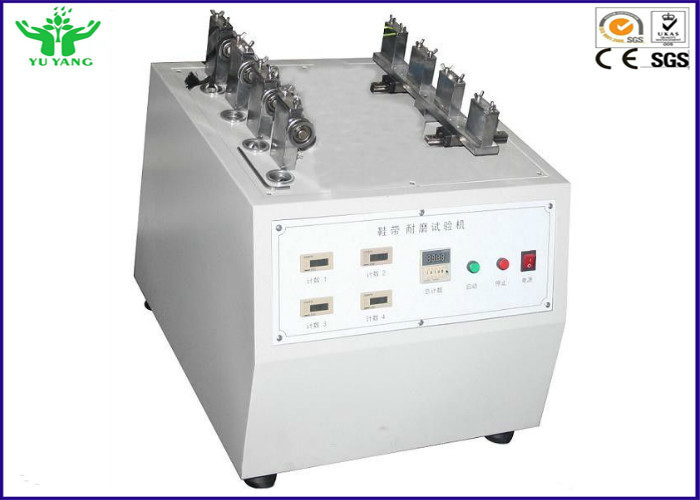

4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm4 Sets Shoelace / Shoestring / Latchet Abrasion Resistance Tester 35mm
