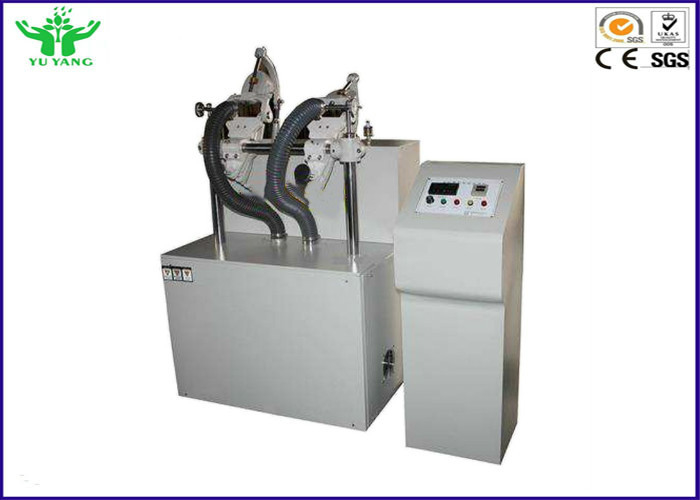

Whole Shoe Flexing Footwear Testing Equipment 2 Sets National standard 230±10r/min

China Whole Shoe Flexing  Footwear Testing Equipment 2 Sets National standard 230±10r/min supplier
Whole Shoe Flexing  Footwear Testing Equipment 2 Sets National standard 230±10r/min supplier Whole Shoe Flexing  Footwear Testing Equipment 2 Sets National standard 230±10r/min supplier Whole Shoe Flexing  Footwear Testing Equipment 2 Sets National standard 230±10r/min supplier

Large Image :  Whole Shoe Flexing Footwear Testing Equipment 2 Sets National standard 230±10r/min

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: GB/T 3903.1
Model Number: YYX-015

Payment & Shipping Terms:

Packaging Details: wooden case
Delivery Time: 6-8 work days
Supply Ability: 300 Set/Sets per Month
Contact Now
Detailed Product Description
Clamp: 2 Sets Bending Angle: 50°±1°(0°~5°) Adjustable
Test Speed: 230±10r/min Adjustable Motor: 3 Phase, 220V , AC 2KW
Volume: Host Machine: 750×750×1100mm(L ×W×H) Control Box: 320×320×1060mm
Weight:: 178kg Power: 1∮,AC220V,8A

Whole Shoe Flexing Footwear Testing Equipment 2 Sets National standard 230±10r/min

Detailed Descriptions:



The whole shoe flexing tester is used for determining the flexibility resistance of finished shoes or shoe sole at room temperature.

Principle: Fix the specimen on the test machine to have the reciprocating flexing movements under the fixed angle and frequency. Then check the sole’s flaw and foxing strip open length after some times, meanwhile, keep an eye on any change of the footwear upper.





Main feature:



1. can set the number of winding and display the real winding times on the panel.

2.when the machine running reach the set value, can automatically stop work and the counter stop recording the times.

3. has the function to supply oil automatically, and lubricate the transmission part in time.

4. has air blast device



 Product Name  2 Sets National standard Whole Shoe Flexing Testing Equipment 230±10r/min
 Specimen fixture   2 pcs shoe
 Specimen size  Test the whole finished shoes
 Bend rate  230±10 time/min( 100~300time/min adjustable)
 Bend angle  0~50°(0~90°)adjustable
 Timer  6 digital (1-999999 times)
 Weight  178KG

 Motor

 3 phase, 220V , AC 2KW
 Power  AC220V,3A
 Size: host machine  750×750×1100mm(L×W×H)







Packaging Details:



GB T 3903.1 Footwear Testing Equipment National standard Whole Shoe Flexing Tester  is packed in a polybag, then packed as export safety wooden case
