High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2

China High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2 supplier
High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2 supplier High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2 supplier High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2 supplier High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2 supplier

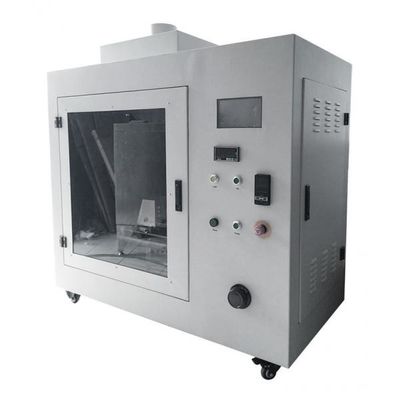

Large Image :  High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: IEC60695-2-10 :2013 ~ IEC60695-2-13 :2013,IEC 60335-1,IEC 60598-1 and IEC60745
Model Number: YY616

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Wire Testing Equipment Usage: Glow Wire Tester
Temperature Range: 50 ℃ ~ 960 ℃ Power Supply: 220V 50HZ
Pressure: 1.0N±0.1N Max Depth: 7mm ± 0.5mm
Test Time: 30s±0.1s Weight: 80kg



High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Equipment with IEC60695-2





Description:



It is intended for testing the flammability and ignitability of components and materials.





Specification:



1. They system comply with standards of IEC60695-2-10 :2013 ~ IEC60695-2-13 :2013,IEC 60335-1,IEC 60598-1 and IEC60745.

2. Glow wire material: Ni/Cr wire with 4 mm diameter

3. Temperature range: 50 ℃ ~ 960 ℃

4. Current range: 0-200 Ampere

5. Input power: 220V/50Hz

6. Including thermocouple and 1℃ resolution display to monitor the wire temperature

7. The travel unit and the glow wire is enclosed by a steel chamber

8. The chamber shall include a level and adjustable feet





Parameter:



Glow wire 4mm ± 0.04mm Ni/Cr(80/120) special standard annular horizontal type
Thermocouple 0.5mm K-type,heatproof of 1100 ℃ ( better than standard 1050 ℃ )
Heating temperature 50 ℃ ~ 960 ℃( could be preset ) ,temp fluctuation < 3 ℃
Pressure 1.0N±0.1N(adjustable)(better than standard 1.0N±0.2N)
Max depth 7mm ± 0.5mm (adjustable)
Sample moving speed 10mm /s ~ 25mm /s
Test time 30s±0.1s(1s ~ 999.9s digital readout, preset )
Ignition plate thickness 10mm thick white pine plate with size of 12g /m 2 ~ 30g /m 2 , standard silk paper, 200mm ± 5mm under the glow wire
Test room ≥ 0.5m³,black back, background illumination ≤ 20Lx ;
Size L 1000mm × W 650mm × H 1100mm ,Gas vent 100mm



Outer size (length 100cm* width 65cm* high 110cm);

One plywood box packing for below item, gross weight 75KG, Size 106*75*115cm



High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2

High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2High Precision 50 ℃ ~ 960 ℃ Glow Wire Testing Machine with IEC 60695-2
