|Cycle Rate::||5 ~ 15 Rotations Per Minute.||Rotation Range::||360 ° Continuous Rotation|
|Loading Weight ::||113kg (250lb)||Counter::||1-999 999 Can Be Set|
|Standards::||BIFMA X5.1.9 Swivel Test-Cyclic; QB/T2280|

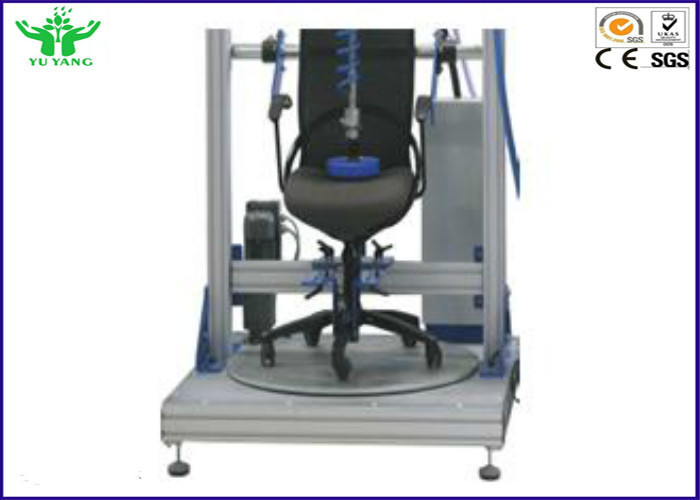

360 ° Furniture Chairs Swivel Test Machine---Rotation Testing Machine BIFMA X5.1.9
Introduction of product:
Cycling Tester is suitable for all kinds of office chair with rotary function(a swivel seat).Chair Swivel testing machine is used for evaluating the ability of the chair to withstand stresses and wear of repeated swiveling.Chair Swivel Testing Machine meets the national standard and BIFMA standard.also can be adjusted according to customer’s requirement.
Applicability: This test applies to all types of chairs with a swivel seat.
Cycle rate: 5 ~ 15 rotations per minute.
Rotation range: 360 ° continuous rotation
Loading weight : 113kg (250lb)
Counter: 1-999 999 can be set
BIFMA X5.1.9 Swivel Test-Cyclic; QB/T2280
|maximum seat size width||1000 mm|
|Diameter rotary table||800 mm|
|Rotational speed||5 to 20cycles / minute , can beset|
|Control mode||programmable logic controller (PLC), with LCD display|
|Times setting||0 ~ 999,999|
|Accessories||lift 113KG Weight by motor|
|Power||Single-phase, AC220V ,Power: 1KW ;|
|1 , his equipment canbeBifma 5.1standard , single direction orbi-directionally rotatingtest orEN1335StandardCW and CCW directionsrotation test,
2 , It also can set the rotation angle, thetestthe direction and residence time .
3 ,Design standard: BIFMA x 5.1 clause 9 Swivel Test-Cyclic (Swivel Tester - Cyclic)
