Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min

China Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min supplier
Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min supplier Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min supplier Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min supplier Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min supplier

Large Image :  Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: QB/T 1952.2-2011
Model Number: YYJ-018

Payment & Shipping Terms:

Packaging Details: Strong wooden case
Delivery Time: 25-30 work days
Supply Ability: 120 Unit/Units per Month
Contact Now
Detailed Product Description
Rolling Test Speed:: 16±2Cycles Per Minute Counter:: 0~999999can Be Set.
Roller:: 1400N,The Middle Diameter:300mm,Both Ends Diameter:250mm,length:1000 The Control Way Of Rolling:: Touch Screen + PLC Control
Loading Cushion On The Edge:: Buttocks Shape,380mmx495mm Loading Parts On The Edge:: The Midpoint On The Long Edge Of The Mattress.200 Mm From Edge.
Loading Force On The Edge:: 1000N Loading Time On The Edge:: 3S
Loading Plate Of Measurement:: Diameter 355mm,Radius Of Curvature Of The End R800mm Loading Speed Of Measurement:: 90±5mm/min
Rolling Test Stroke:: The Mattress Mid-line Left And Right Are Both 500 Mm. Drive Motor:: Servo Motor
Stroke:: 500mm



90±5mm/min Furniture Durability Comprehensive Tester for the surface of mattress





Introduction of product:

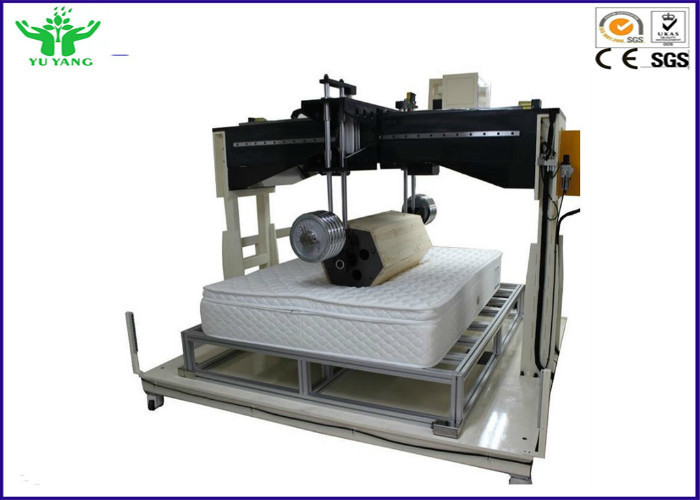

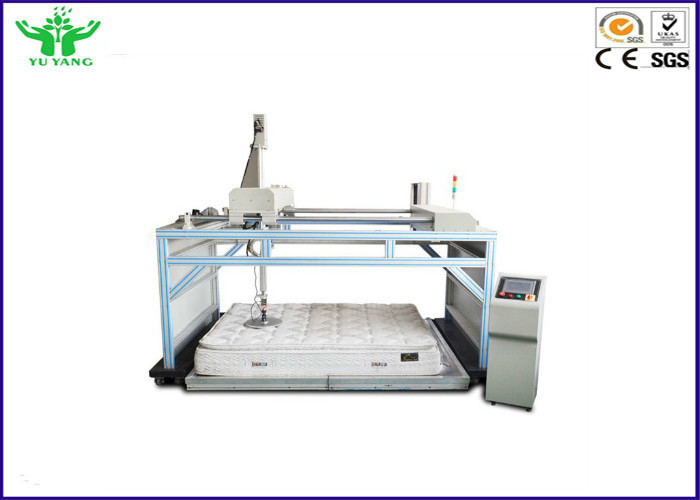

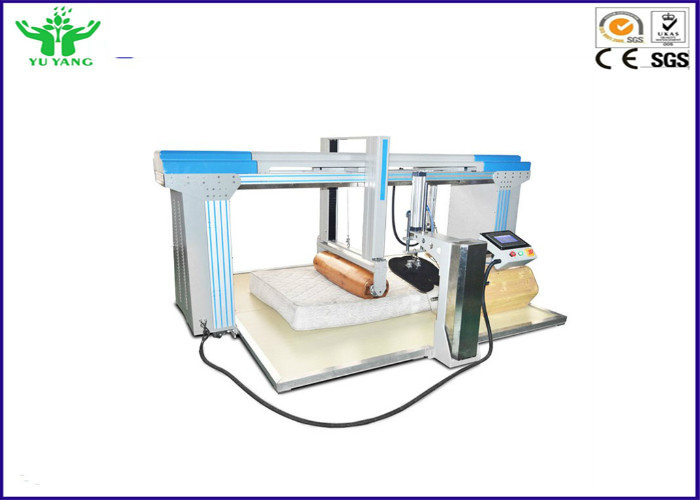

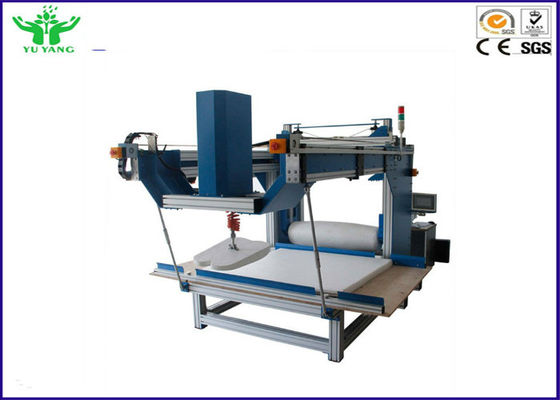

This tester is designed according to the latest national standard. It is suitable for a set of durability testing for spring soft mattress,and relevant measurement of it.It uses a certain weight of roller to do rolling test on the center of mattress, simulating the effects to the

mattress after the body of people rolls on it. The tester does loading durability test for the

edge of mattress using specified loading cushion and force value.It can also simulate a people sits on the edge of the mattress,and the effect caused by the bottom loading on the mattress.After a certain number loading,compare the height of cushion surface and its surrounding edge before and after the test.Assess the quality of the mattress according to change of hardness and damage of mattress.



Test items: include the following tests and measurement projects:

  1. durability test for the cushion surface.
  2. durability test for the edge of cushion.
  3. height measurement of the mattress.
  4. Measurement of the Hardness value.





Technical parameters:



Rolling test stroke:The mattress mid-line left and right are both 500 mm.

Rolling test speed:16±2Cycles per minute

Roller:1400N,The middle diameter:300mm,Both ends diameter:250mm,length:1000

Counter:0~999999can be set.

The control way of rolling:Touch screen + PLC control

Loading cushion on the edge:buttocks shape,380mmx495mm

Loading parts on the edge:The midpoint on the long edge of the mattress.200 mm from edge.

Loading force on the edge:1000N

Loading time on the edge:3S

Position of measurement:Mattress center,Left and right are both 250mm,the midpoint on the long edge of the mattress 200 mm inward.

Loading plate of measurement:Diameter 355mm,Radius of curvature of the end R800mm

Capacity of force sensor:2kN

Loading speed of measurement:90±5mm/min

Stroke:500mm

Drive motor:Servo motor





Standards:



QB/T 1952.2-2011



Rolling test stroke: The mattress mid-line left and right are both 500 mm.
Rolling test speed: 16±2Cycles per minute
Roller 1400N,The middle diameter:300mm,Both ends diameter:250mm,length:1000
Counter: 0~999999can be set.
The control way of rolling: Touch screen + PLC control
Loading cushion on the edge: buttocks shape,380mmx495mm
Loading parts on the edge: The midpoint on the long edge of the mattress.200 mm from edge.
Loading force on the edge: 1000N
Loading time on the edge: 3S
Loading speed of measurement: 90±5mm/min
Capacity of force sensor: 2kN



Durability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/minDurability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/minDurability Comprehensive Furniture Testing Machine For The Surface Of Mattress 90±5mm/min
