ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000

China ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000 supplier
ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000 supplier ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000 supplier ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000 supplier

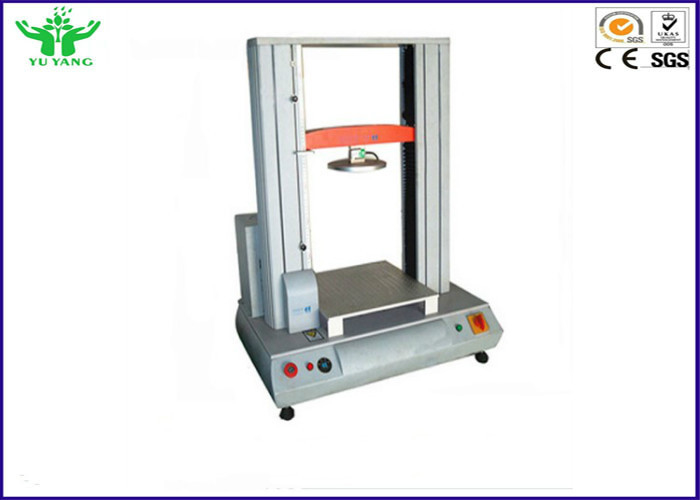

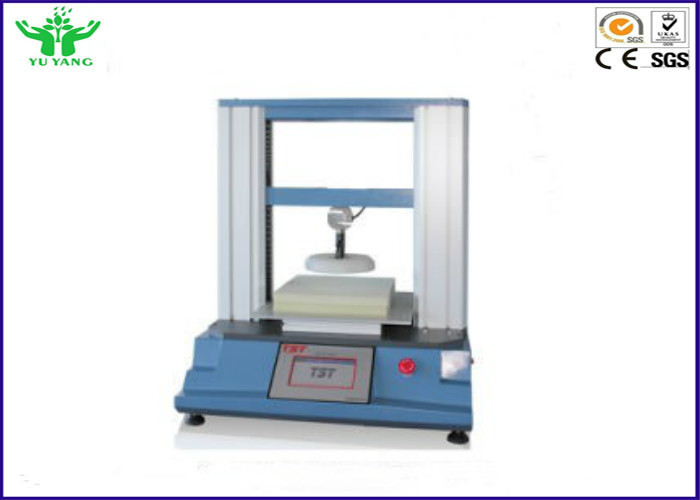

Large Image :  ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: GB/T10807-89,ISO 2439-1980, JISK6401, ASTM D3574 Test B-IFD Test
Model Number: YYJ-021

Payment & Shipping Terms:

Packaging Details: Wooden Package
Supply Ability: 10 PCS/Month
Contact Now
Detailed Product Description
Load Cell Capacity:: 300Kg Motor:: Servo Motor Control System
Unit Switch:: Kg、N、Lb Resolution:: 1/1000
Accuracy:: 0.5 (±0.5%) Testing Stroke:: 200mm
Test Speed:: 100±20mm/min Size Of Upper Compressing Plate:: Diameter 203mm
Bottom Border-radius:: R1mm Lower Platform:: 420mmx420mm
Air Hole Diameter:: 6.5mm Hole Center Gap:: 20mm
Specimen Size :: Length 400mm, Thickness 100mm Weight:: Approx 70kg



ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester 1/1000







I. Purpose:



Use to test the indentation hardness for elastic foaming material, such as compounded foam, PU foam.





II. Theory:



computer software control, first press 75% of the sample thickness, release and then press 25% for 20 seconds. Load cell force sensor will automatically record and show its force. That would be the hardness of the foam. Also 40%, 65% is programmable.





Standards:



GB/T10807-89,ISO 2439-1980, JISK6401, ASTM D3574 Test B-IFD Test





ITI. Features:

  • Adjust speed:adjust speed test according to different specimen.
  • Indicating value verify: system enables display the accurate calibration of force
  • Control method:select the test force,test speed,displacement,strain etc.test method.
  • Curve ergodic:after the test,you can find out any curve point value and transformative data and analyse it.
  • Display: dynamic display of the data and curve test process
  • Result:The test result can be accessed.analyse the data curve.
  • Limit: cell-type and machinery limit.
  • Overload:automatic shutdown when exceed the rated value..





IV. Technical parameters:



Automatic stop, stroke top and bottom limitation

Sensing method: Force sensor automatic display

Load Cell Capacity: 300Kg

Motor: servo motor control system

Unit switch: Kg,N,Lb

Resolution: 1/1000

Accuracy: 0.5 (±0.5%)

Testing stroke: 200mm

Test speed: 100±20mm/min

Size of upper compressing plate: diameter 203mm,

Bottom Border-radius: R1mm

Lower platform: 420mmx420mm,

Air hole diameter: 6.5mm,

Hole center gap: 20mm

Specimen size : length 400mm, thickness 100mm

Volume (WxDxH) 70x42x70cm

Weight: approx 70kg

Power: 1∮ AC220V 2.6A



Load Cell Capacity:  300Kg
Motor: servo motor control system
Unit switch:  Kg,N,Lb
Resolution:  1/1000
Accuracy:  0.5 (±0.5%)
Testing stroke:  200mm
Test speed:  100±20mm/min
Size of upper compressing plate:  diameter 203mm
Bottom Border-radius:  R1mm
Lower platform:  420mmx420mm
Air hole diameter:  6.5mm
Hole center gap:  20mm
Specimen size : length 400mm, thickness 100mm
Volume:  (WxDxH) 70x42x70cm



ASTM D3574 Computer Servo Control Foam Indentation Force Deflection Tester Resolution 1/1000
