|Rated Load::||75,150,230KG||Testing Dimension::||110*98 ,130*120 ,180*150cm|
|Maximum Acceleration::||1.25g||Amplitude::||25.4MM(1 Inch)|
|Fence Height::||33 Cm,38 Cm,42 Cm||Dimension::||Dimension: 20*110,140*130 ,190*160 Cm|
|Power::||Electronic, 220 V60Hz||Maxcapacity:||>1000KN|
|Time Setting Range:||0~99.99hour||Speed Display::||0.1rpm|

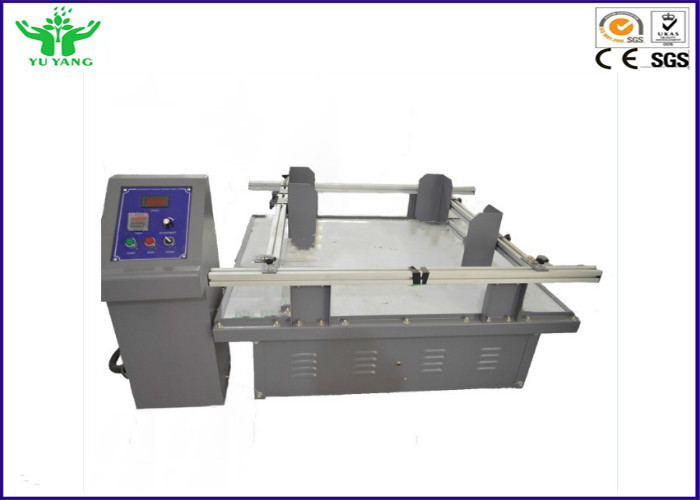

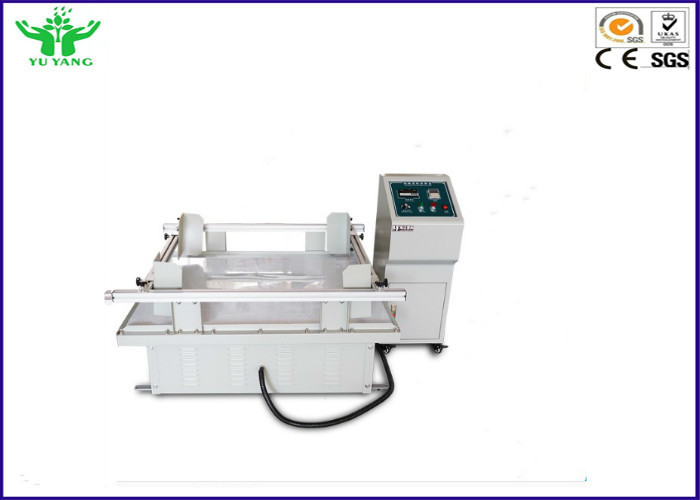

0~99.99hour Carton Transportation Vibration Test Equipment for Package GB / T 4857.7-92
Test Equipment is based on the United States and European transport
standards, and with reference to the United States of similar equipment to improve manufacturing. The use of
eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during
transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric
bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
Digital instrument display vibration frequency; synchronous belt transmission mute, very low noise; test items
using clamping rail type, easy to operate, safe; machine using heavy-duty channel steel base with anti-vibration
pad, easy installation, smooth operation, without Install ground pin screw; DC motor speed control, running
smoothly, load capability; rotary vibration (commonly known as Valley-type).
To meet the criteria:
Carton Transportation Vibration Test Equipment meets the following standards: GB / T 4857.7-92 "transport
package fixed-frequency sinusoidal vibration test method"
Package Lab Vibration Shaking Test Equipment applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and
European transport standards.
|Model||0~99.99hour Carton Transportation Vibration Test Equipment for Package GB / T 4857.7-92|
|Rated load||75 kg||150 kg||230 kg|
|Testing dimension||110*98 cm||130*120 cm||180*150cm|
|Frequency||Frequency of 2-5 Hz continuously adjustable|
|Motor||Rotary DC motor|
|Fence Height||33 cm,38 cm,42 cm|
|Dimension||20×110 cm||140×130 cm||190×160 cm|
|weight||169 kg||288 kg||396 kg|
