0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled

China 0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled supplier
0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled supplier 0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled supplier 0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled supplier 0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled supplier

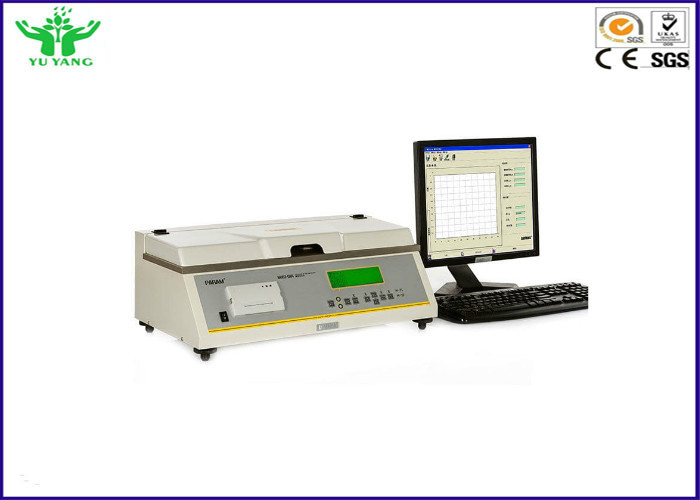

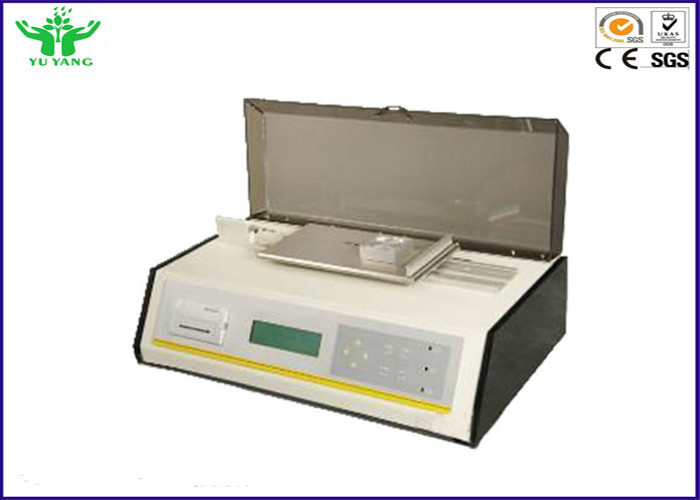

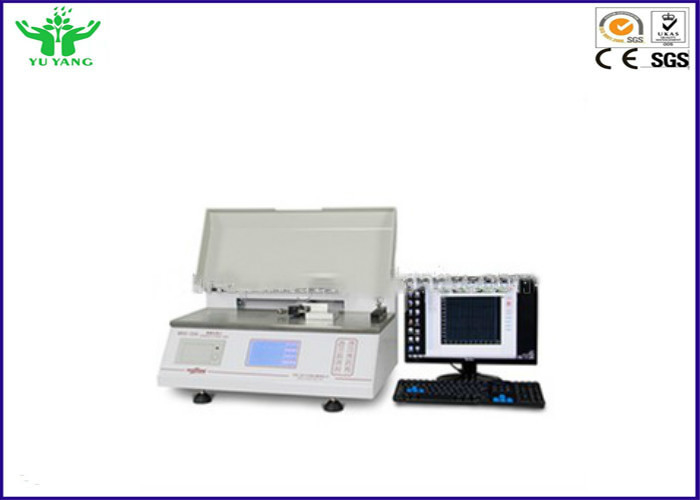

Large Image :  0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled

Product Details:

Place of Origin: china
Brand Name: YUYANG
Certification: ISO8295, ASTM D1894
Model Number: YYP-008
Contact Now
Detailed Product Description
Capacity Range: 0 ~ 5 N Accuracy: 1% FS
Stroke: ≥130 Mm Mass Of Sled: 200 G (500 G Optional) Customization Is Available For Other Masses
Test Speed: 150 Mm/min Environment Condition: Temperature: 10°C ~ 40°C Humidity: 20%RH ~ 70%RH
Power Supply: 220VAC 50Hz / 120VAC 60Hz Instrument Dimension: 575 Mm (L) X 310 Mm (W) X 208 Mm (H)



ASTM D1894 Static and kinetic coefficients friction plastic package testing machine



Product Description:



Static and kinetic coefficients friction plastic package testing machine is strictly based on ASTM D1894 standard, and is professionally applicable to the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. By testing the frictional properties of materials, the technical indexes could be controlled to meet requirements for production. Besides, the instrument can be used to measure smoothness of cosmetics, eye drops and other daily products.



Features:



1.Static and Kinetic coefficients of friction can be tested simultaneously

2.The functions of automatic delay timing and automatic COF zeroing ensure enough touching time between tested specimens

3.The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors

4.The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface, which is convenient for customers to test or view the test data

5.Top quality parts and components made by world famous brands are used to ensure reliable overall product performance

6.Professional operating software supports the automatic judgment of smoothness status, and statistical analysis of group specimen test results

7.Micro-printer can automatically print the test reports of single tested specimen or groups of tested specimens



Product parameters:



Model YYP-008-1 YYP-008-2
Standard ASTM D 1894 ISO8295, ASTM D1894
Load cell range 0-5N 0-5N
Accuracy 1% of reading force 0.5% of reading force
Stroke (mm) 130 70 or 150
Test speed 150mm/min 100 or 150mm/min
Mass of sled 200g (other weights customization available)
Ambient Condition temperature: 10ºC~40ºC
  humidity: 20%RH~70%RH
Power AC 220V 50Hz
Dimensions 540mm(L)*380mm(W)*240mm(H)





Standards:

ASTM D1894  ISO8295

0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled0 ~ 5 N Friction Plastic Package Testing Equipment Micro-Computer Controlled
