Product Details:
Place of Origin: china
Brand Name: YUYANG
Certification: ISO5628, ISO2493,GB/T 23144,GB 22364, ISO5628
Model Number: YYP-013
Payment & Shipping Terms:
Packaging Details: strong wooden case
Delivery Time: 7-10 work days
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Power Supply:: AC(100~240)V 2A 50/60Hz Indication Error:: +/-1%
Indication Offset:: Less Than 1% Measure Range:: (20 ~ 10000)mN Eqv (1 ~ 500) MN.m
Resolution:: 0.1mN Bend Length:: (50+/-0.5)mm/(25+/-0.5)mm/(10+/-0.5)mm
Bend Angle:: (1~20); Display:: 4.3" Color Touch Screen
Dimension:: (320*300 *300)mm(L*W*H) Weight:: About 15 Kg
High Light:

packaging testing instruments

,

compression test equipment

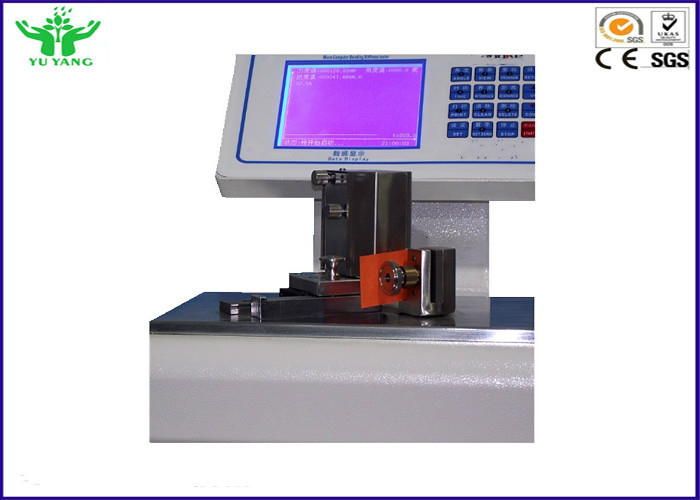

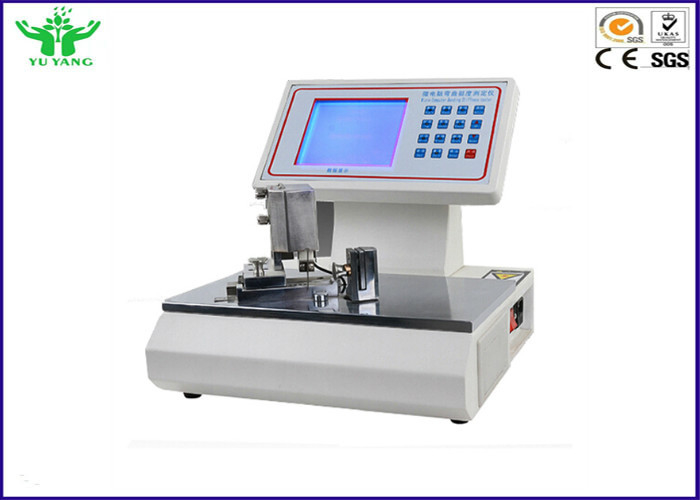

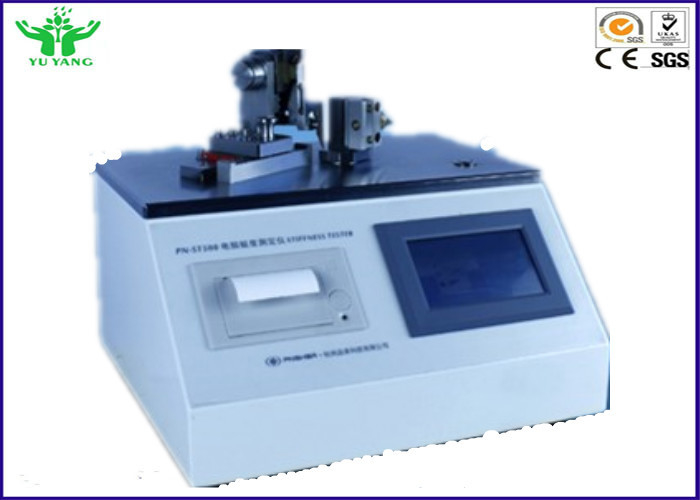

LCD Computerized Automatic Package / Cardboard Stiffness Testing Equipment 0.1mN



Product Description:



Computerized Automatic Package / Cardboard Stiffness Testing Equipment is one muti-function stiffness tester.You can set test angle range. It is with auto zero function. we are the first company to develop and produce stiffness tester with touch screen as the man-machine interface in the domestic, with a real-time display function of stiffness and time curve, to use touch screen has the advantages of simple operation, convenient. Our Bending Stillness Tester was originally developed to produce a more concise, consistent measurement for the paper board industry. As well as used in a variety of industries including personal products, paper, flexible films, packaging and non-wovens.





Features:



1.Intelligent computerized equipment to test the bending stiffness of paper, cardboard, and other non-metal material in shape of strength sheet, of which the thickness is less than 2mm.

2.The angle can be set up randomly within 1~90°, while the test time is adjustable from 3s to 35s.

3.Designed with automatic zeroing test function.

4.Equipped 5.7in LCD screen with graph function for real-time display of stiffness and time curve.

5.Includes parameter testing, storage, statistics and printing functions to provide scientific data analysis of cardboard stiffness test.



Measuring range:  (15~10000 l) mN.m
Thickness range : (0~3)mm
Accuracy: less than 50mN±0.6 mN, others ±1%
Bending Length:  (50/25/20/15/10/5) ±0.1 mm
Bending Angle: 7.5 degree or ±15 degree) ±0.3 degree (1~90 degree adjustable)
Loading arm length:  200 ±°20 °/min
Print: modular integrated thermal printer
Data display: 5.7 in LCD display with graph function
Working conditions:  temperature(20±10)°C, humidity < 85%
Power Supply: AC(100~240)V 2A 50/60Hz





Standards:



ISO5628, ISO2493,GB/T 23144,GB 22364, ISO5628



Automatic Package Testing Equipment LCD Computerized / Cardboard Stiffness Tester 0.1mN 0Automatic Package Testing Equipment LCD Computerized / Cardboard Stiffness Tester 0.1mN 1
