60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min

China 60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min supplier
60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min supplier 60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min supplier 60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min supplier 60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min supplier

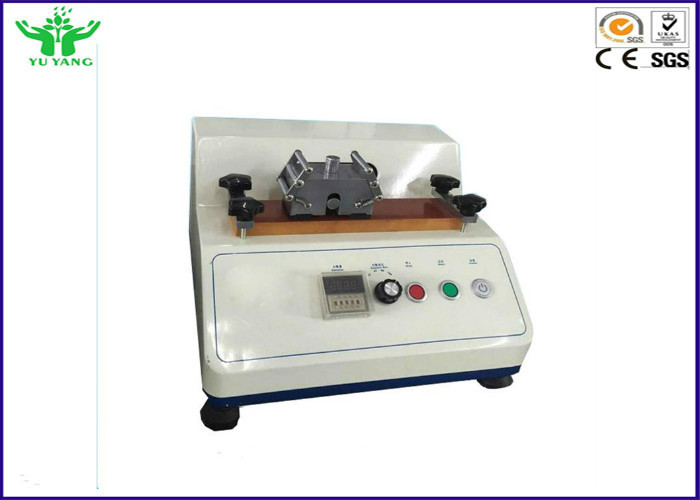

Large Image :  60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times / Min

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D5264, TAPPI 486,GB / T 7706 ,TAPPI-UM486 ,JIS-5071-1
Model Number: YYP-014

Payment & Shipping Terms:

Packaging Details: Strong wooden case
Delivery Time: 10-15 work days
Supply Ability: 300 Sets Per Month
Contact Now
Detailed Product Description
Control Interface:: LCD Touch Screen Friction Load:: 908g ( 2lb), 1810g (4 Lb)
Friction Speed:: 43 Times/Min Number:: Friction 0~9999times (Arbitrary Set, Automatic Shutdown)
Friction Velocity:: 21 Beats / Min,43 Beats / Min,85 Beats / Min,106 Beats / Min (Arbitrary Choice Of Fourthgear Speed) Friction Area:: 156mm×50mm
Friction Stroke:: 100mm Power:: AC220V 3A 50Hz
Dimensions:: 360mm×300mm×460mm Weight:: 20kg



60 mm ASTM D5264 Package / Paperboard Ink Rub Testing Machine 43 Times/Min



Product description:



Ink Rub testing machine is applicable to testing ink layer of materials like labels, folding cartons, corrugated boxes, etc.Ink rub tester can do dry or wet rubbing test, discoloration test, paper fuzzy test, and special friction test. It can help users to analyze the reason of lower abrasion assistance, ink layer falling-off, lower printable of PS board, and adhesion of coating layers of other products.





Feature:


1. the micro-computer control, LED display, mechanical and electrical integration, light and shape.
2. can be adjusted to set the number of friction, and facilitate accurate test.
3. Swing the number of automatic counting, automatic stop.





Main Parameters:



Model YYP-014
Display LED display and Microcomputer control
Specimen Size Minimum Size: 230×50 mm
Friction Speed 43 times/min ( 21,43,85, 106 times/min, adjustable)
Friction Load 908g ( 2LB), 1810g (4 LB)
Friction Stroke 60 mm
Friction Area 50×100 mm
Frequency Setting 0~9999 times, auto-shutdown
Outside Dimension (L×W×H) 330×300×410mm
Weight 15Kg
Power AC220V, 60W







Standard:



ASTM D5264, TAPPI 486,GB / T 7706 ,TAPPI-UM486 ,JIS-5071-1
