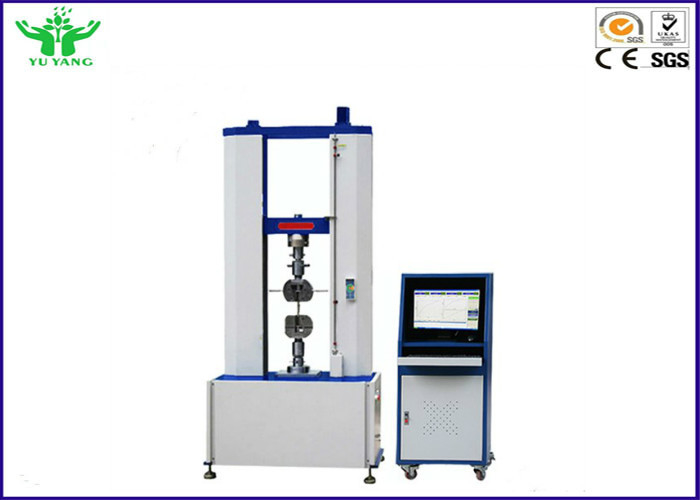

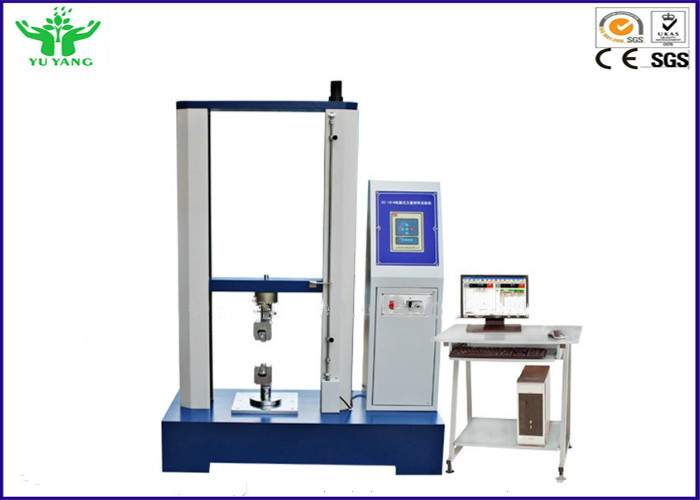

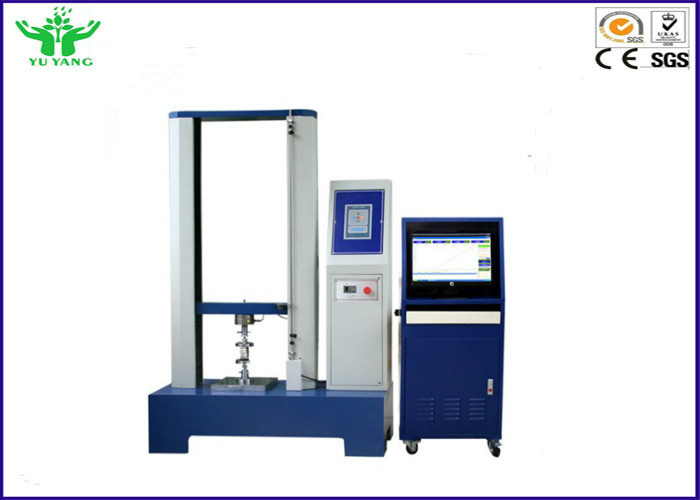

0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min

0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min

  • 0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min
  • 0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min
  • 0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min
  • 0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min
0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T16491-1996,TAPPI T-494,ISO 1924,ISO12625-4,AS/NZ1301.448s,BS EN ISO1924-2,CPPA D34,DIN 53112,SCAN P38,
Model Number: YYL-001
Payment & Shipping Terms:
Packaging Details: wooden case
Delivery Time: 10-15 work days
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Maximum Load: 5KN,1ton,2ton,option Accurate Grade: 1 Grade /0.5 Grade
Effective Measuring Range: 0.2%~100%(1 Grade)/0.4%~100%(0.5 Grade) Measuring Accuracy: The Value ±1% / The Value ±0.5%
Range Of Testing Speed: 0.001~500mm/min Power Supply: 220V,50HZ,
Accruacy Of Displacement Measurement: Tolerance: ±0.5%/ Tolerance: ±0.2% Machine Size: 1200*530*1800mm(L*W*H)
High Light:

textile lab equipment

,

universal tensile machine



0.75KW Computer Electronic TTM Tensile Testing Machine for Calibration 0.001~500mm/min



Equipment Discription:



Computer Electronic TTM Tensile Testing Machine for Calibration is designed by mechanical-electrical integration, composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive , computer and color inkjet printer. it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. Floor-standing models, it is taken account of modern industrial design and ergonomics in modeling and coati.





Applicable industry:



It is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.





Technical parameter:



Maximum load 5KN,1ton,2ton,option
Accurate grade 1 grade /0.5 grade
Effective measuring range 0.2%~100%(1 grade)/0.4%~100%(0.5 grade)
Measuring accuracy the value ±1% / the value ±0.5%
Tester resolution Max load 1/200000,constant the resolution
Load sensor

Basic configuration:sensor(max load): one

Extended configuration:can add more sensors

Effective testing width 450mm(can be widened according to customer's requirement)
Effective tensile space 400,500,600mm(can be increased the height according to customer's requirement)
Range of testing speed 0.001~500mm/min
Accruacy of displacement measurement Tolerance: ±0.5%/ tolerance: ±0.2%
Deformation of measured system(according to the requirements)

Min span :10mm,Max range of deformation:800mm

Extended deformation:Mix span: 25mm,50mm,100mm, range of deformation:5mm,10mm,25mm

Accuracy of measured deformation Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation)
safety Electronic-limit protection
Testing platform moving device Fast /slow two speeds to control,can jog
Back to function of testing platform Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection Overload 10%,automatic protection
fixture A set of tensile fixture
Machine size 1200*530*1800mm(lenght*width*height)
Motor Panasonic AC servo motor and drive
Power supply 220V,50HZ,
power 0.75KW(depending on different demand of force, using different motor)
weight (about)500 Kg





Main function:



Computer Electronic TTM Tensile Testing Machine for Calibration mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions(needed add extensometer )and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire





Main feature:



Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, culculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.





Standard:



1. GB/T4689.20-1996 measuring fastness of leather’s adhesion

2. QB/T2710-2005 measuring leather’s expansion and the rate of elongation

3. QB/T2711-2005 measuring tear force of leather

4. QB/T2712-2005 measuring leather’s strength and stretch of spherical crack test

5. TAPPI T-494,ISO 1924,ISO12625-4,AS/NZ1301.448s,BS EN ISO1924-2,CPPA D34,DIN 53112,SCAN P38

6. Breaking strength (sample method) GB/TT3923.1 ,ISO13934.1 , ASTM D5035

7. (Grab method) GB/T3923.2 ISO13934.2 ASTM D5034

8. Tear strength (tongue-shaped tear) GB/T3917.2 ISO13937.2 ASTM D2261

9. (Trapezoidal tear) GB/T3912.3 ISO9074.4 ASTM D5587

10. Seam Slippage GB/T13772.1/2/3 ISO13936.1/2 ASTM D434

11. Peel strength FZ/T01085 ASTM D2724/3936 AATCC 136 FZ/T80007.1 FZ/T01010 FZ/T60011

12. Ball Bursting GB/T19976 FZ/T01030 ISO3303 ASTM D3787/6796

13. Elastic Recovery FZ/T70005 FZ/T70006 BS 4952

14. Single Yarn Strength GB/T3916/14344 ISO2062 ASTM D 2256

15. Otherstandards GB4689.6 GB/T13763 GB/T13773 GB/T14800

16. GB/T15788 GB/T16989 FZ/T01031 FZ/T20019

17. FZ/T60005 FZ/T60006 FZ/T70007 ISO 13935.1/2

18. ASTM D1683 ASTM D4964 ASTM D5733/5735 BS 3320



0.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min 00.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min 10.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min 20.75KW Computer Electronic TTM Tensile Testing Machine For Calibration 0.001 ~ 500mm/min 3
