>1000KN Double-Column Universal Tensile Testing Machine Servo Control System

>1000KN Double-Column Universal Tensile Testing Machine Servo Control System

textile lab equipment

universal tensile machine

Place of Origin:

China

Brand Name:

YUYang

Certification:

GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC.

Model Number:

YYL-003

Contact Us
Request A Quote
Product Details
Maxcapacity::
>1000KN
Accuracy Grade::
0.5
Control::
Computer Control
Load Resolution::
1/200,000, 1/300,000 Or Specified By User
Load Accuracy::
±0.25
Stroke Resolution:
0.00003mm
Speed Accuracy:
±0.5%
Sample Rate:
200 Times/sec
Effective Measuring Range::
0.2%~100%
Range Of Testing Speed::
0.001~500mm/Min
Tensile Strength Tester Max. Load::
2 Ton, Option
Unit(Switchable)::
Kgf, Lbf, N, Kn, Kpa, MPa
Highlight:

textile lab equipment

,

universal tensile machine

Payment & Shipping Terms
Packaging Details
Stronger Wooden Case
Delivery Time
10-15 work days
Supply Ability
100 Sets Per Month
Product Description



>1000KN Double-Column Servo Control System Universal Tensile Testing Machine ±0.5%



Product Description:



The tensile testing machine also known as a materials testing machine , is applicable to testing tensile stress , compressive stress , shearing force , peeling force , and elongation of materials , components , and finished product for metal , plastic , rubber , textile , synthetic chemicals , wire and cable , leather , ect.





Characteristics:

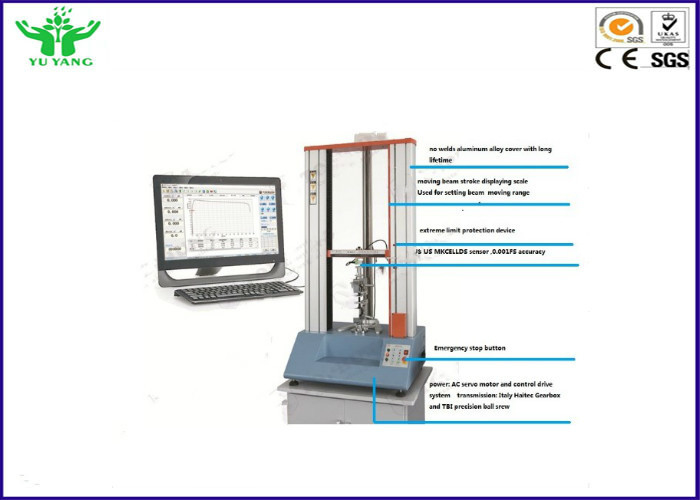

1. The structure of tensile testing machine price is made of Aluminium blanking plate. The interior is used the high-accuracy, low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficiency and structure rigidity.
2. Tensile testing machine use US MKCELLDS load cell which ensure high efficiency ,steady transmission and low noise.
3. Tensile testing machine use the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.





Techical Parameter:



Model YYL-003-1 YYL-003-2 YYL-003-3 YYL-003-4 YYL-003-5 YYL-003-6
Capacity
(optional)
50kN, 100kN 200kN 300kN 500KN 1000KN
Unit(Switchable) kgf, lbf, N, kN, kPa, Mpa
Load Resolution 1/200,000, 1/300,000 or specified by user
Load Accuracy ±0.25
Load Range Rangeless(full scales at teh same amplification)
Stroke(exclude the grips) 1050mm 1280mm
Effective width 570mm 730mm
Test speed 0.001~500mm/min selectable 0.001~250mm/min s
selectable
0.001~200mm/min
Speed Accuracy ±0.5%
Stroke Resolution 0.00003mm
Sample Rate 200 times/sec
Communication Interface USB 2.0 system
Motor AC motor
Dimension(W*D*H)
(Main unit)
114*70*210cm 126*80*220cm 126*85*250cm 128*90*275cm 142*110*320cm
Computer /Desk 165*65*80cm
Weight(Main Unit) 717kg (exclude the grips 1050kg(exclude the grips) 1230kg(exclude the grips) 1750kg(exclude the grips) 2500kg(exclude the grips)
Comput /Desk 102kg
Power 220V 20A /380V,15A or specified by user 220V, 25A /380V,20A or specified by user





Test standard:


GB/T1040 GB/T1042 ASTM D638 ASTM D790 ISO 178 ISO 527 DIN 53-504 DIN 53-452 ETC.

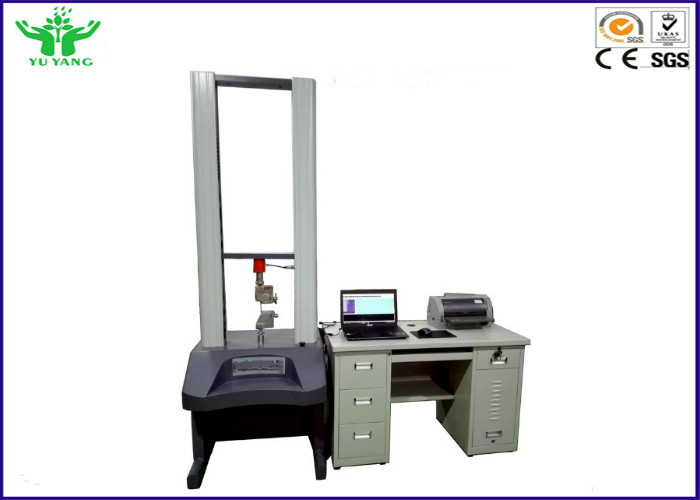

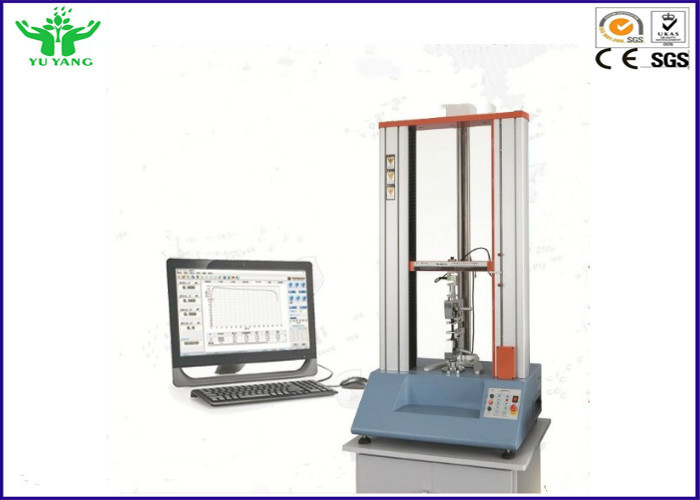

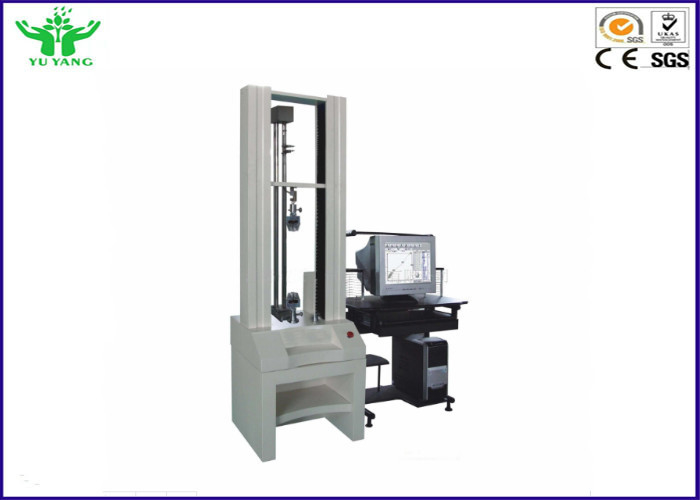

>1000KN Double-Column Universal Tensile Testing Machine Servo Control System 0>1000KN Double-Column Universal Tensile Testing Machine Servo Control System 1>1000KN Double-Column Universal Tensile Testing Machine Servo Control System 2
