| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM D903 Cns-11888 JIS K6854, Pstc-7 |
| Model Number: | YYL-007 |
| Packaging Details: | Strong Wooden Case |
|---|---|
| Delivery Time: | 8-10 work days |
| Supply Ability: | 100 Set Per Month |
| Load Accuracy:: | < ± 0.5% | Temperature Range:: | -40 To 150 Degree |
|---|---|---|---|
| Stroke:: | 700mm Or Custom | Motor:: | AC Servo Motor |
| Test Speed:: | 25~300 Mm/Min (Convertible) | Weight:: | 100-500Kg |
| Power Source:: | AC220V | Effective Width:: | 400 Mm |
| High Light: | textile lab equipment,universal tensile machine |
||
< ± 0.5% Environmental High Low Temperature Tensile Tension Testing Machine 400mm
Product Description:
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards or customer required.

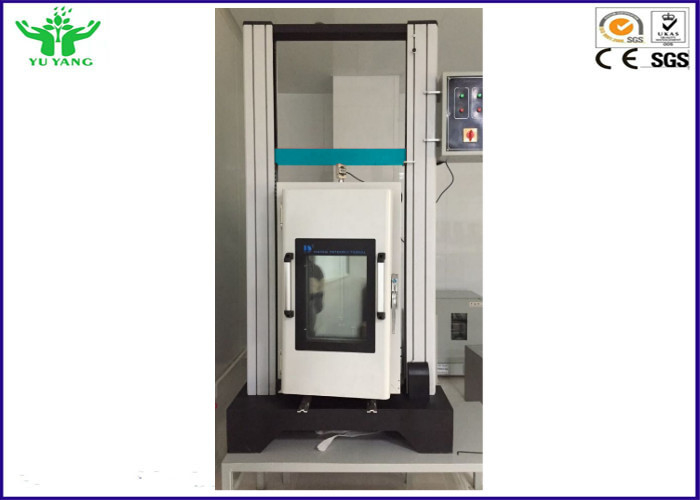

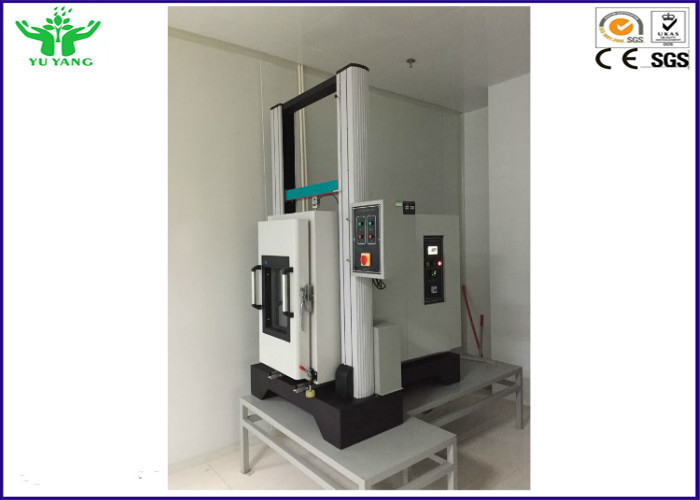

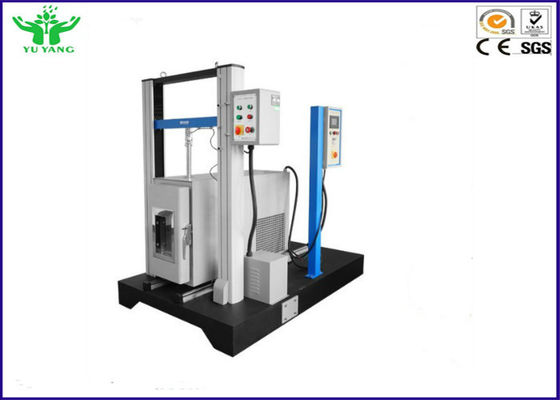

This Environmental High Low Temperature Tensile Tension Testing Machine is a kind of electric tensile tester with temperature control chamber, which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture in temperature chamber, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Main Technical Parameters :
| Items | Specification |
| Capacity (optional) | 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kg |
| Unit (Switchable) | G, KG, N, KN, LB |
| Load Resolution | 1/100,000 |
| Load Accuracy | < ± 0.5% |
| Stroke (exclude the grips) | 400 500 600 mm (can be adjusted higher by requirements) |
| Test speed | 0.1~500 mm/min Selectable |
| Effective Width | 400 mm |
| Operation Mode | Controlled by PC |
| Weight (exclude the grips) | 130 Kg |
| Display | PC (can be programmed any of the customer's data ) |
| Motor | AC Servo Motor |
| Dimension(L×W×H)-Main Unit | 1200×600×1500cm |
| Dimension of the testing space | 400×400×700mm |
| Testing width | 40cm ( can be widened by requirements) |
| Power | 1#, 220V, 10A |
| Rotation method | high precision ball screw rod |
| Fixture | can be customized stretching and compressing fixture |

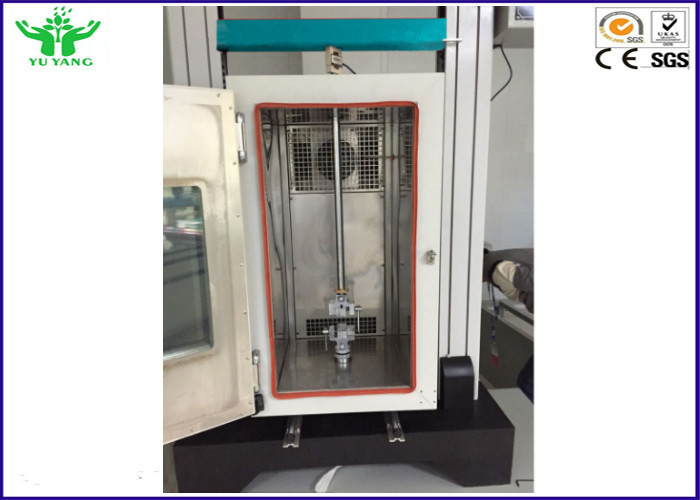

Temperature control chamber:
| Items | Specification |
| Temperature range | -40°C ~150°C |
| Control method | P.I.D Automatic calculation |
| Humidity range | 20%~98% |
| Tem & Hum accuracy | ±0.5°C, ±2.5% RH |
| Temp& Humid regularity | ±2°C, ±3% RH |
| Compressor | France Tecumseh |
| Cooling Speed | 1 °C/ min |
| Counter | LED,0~9999.99 |
| Inner material | SUS 304 Stainless steel |
| Inner Chamber size | (L×W×H)40×40×70cm (can custom) |
Features :
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
3. Data transmission: RS232.
4. Displacement resolution: 0.001mm.
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Languages:English.
Standard:
ASTM D903 Cns-11888 JIS K6854, Pstc-7
