|Model Number::||100kN-10MN||Force Range::||1% ~ 100% FS|
|Force Rate::||0.02 ~ 2%FS/S||Tensile Space::||14meter (40Feet)|
|Force Resolution::||1/±350,000 Of Max Force||Force Accuracy::||±1% Of Reading|
|Cylinder Speed::||150mm/min||Displacement Range:||0 ~ 600mm|
|Piston Stroke::||1000/1500||Displacement Accuracy:||±0.1mm|

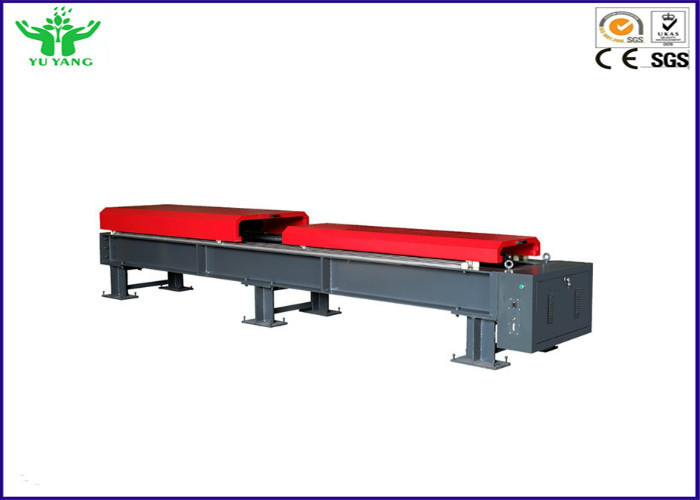

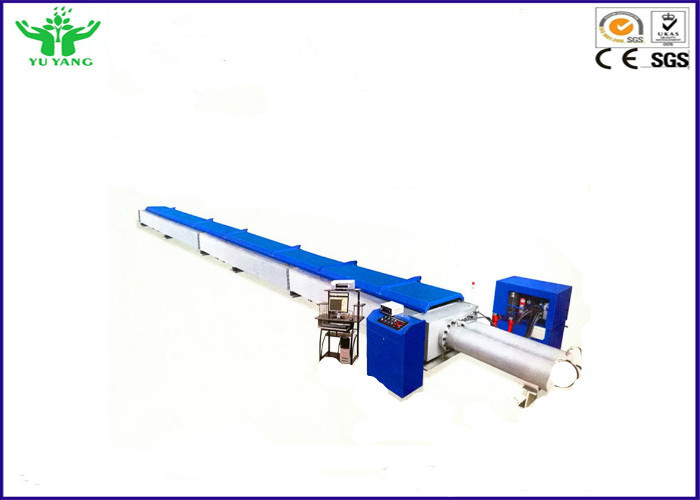

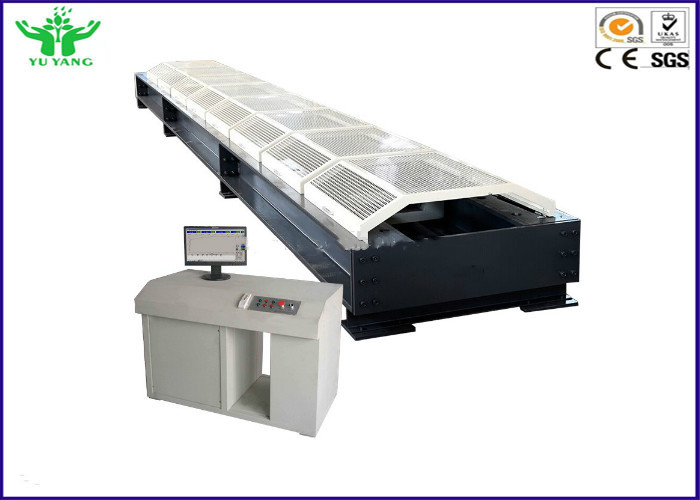

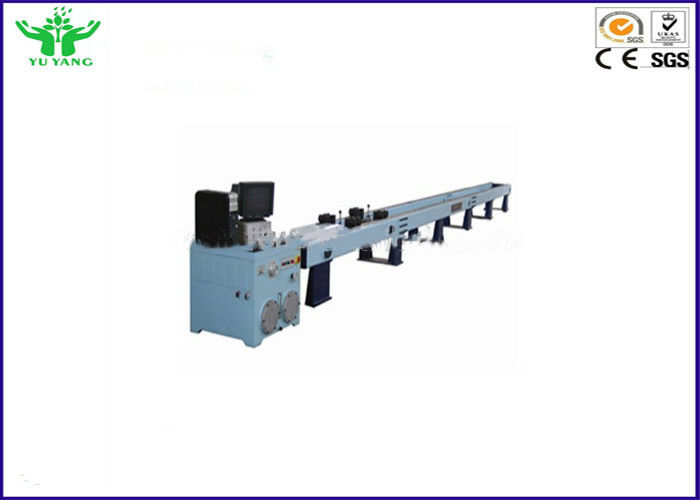

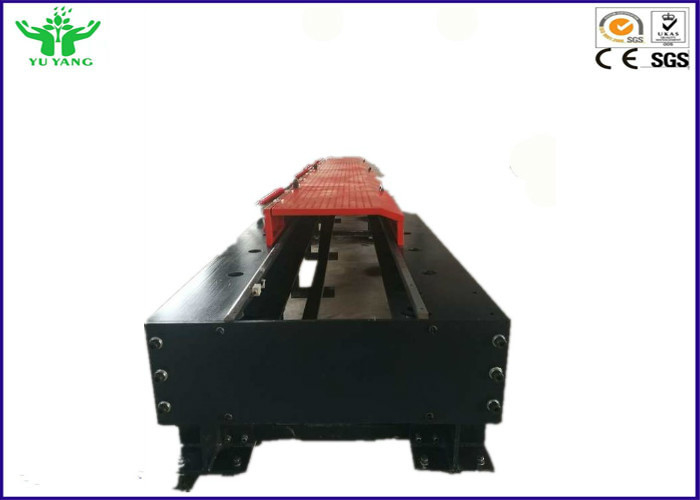

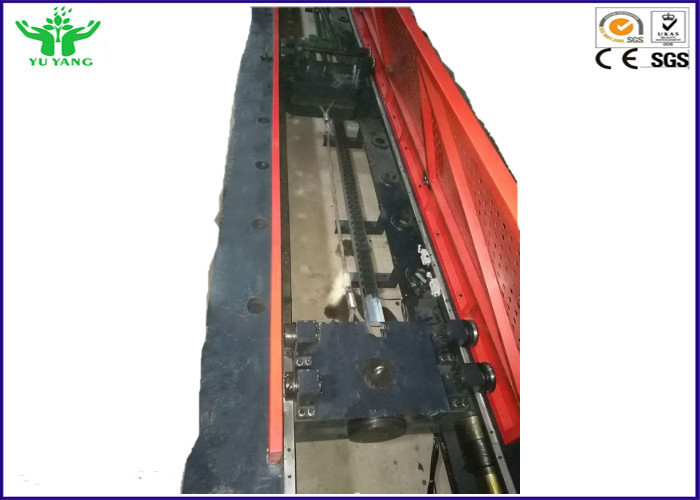

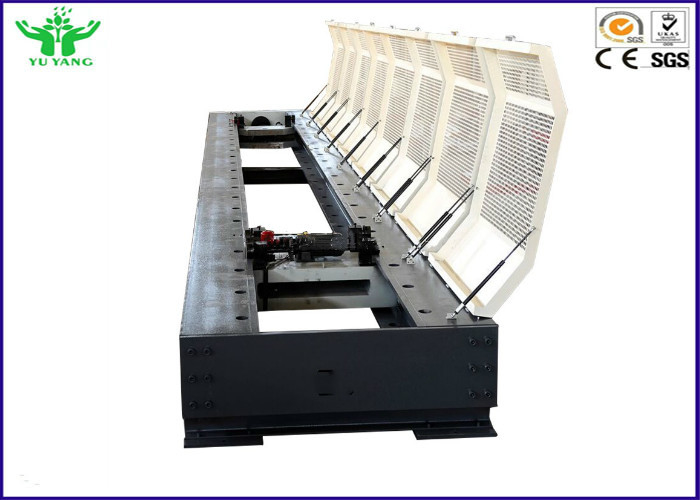

150mm/min Steel Strand Wire Rope Conductor Horizontal Tensile Testing Machine
This machine is mainly designed for tensile strength tests on all kinds of mental component, anchor chain, hook, wire rope, stopper, electric cable and separating disc.
|Model||Steel Strand Wire Rope Conductor Horizontal Tensile Testing Machine|
|Max. Force||500Ton or custom|
|Force range||1% ~ 100% FS|
|Force accuracy||±1% of reading|
|Force resolution||1/±350,000 of max force|
|Force rate||0.02 ~ 2%FS/S|
|Displacement range||0 ~ 600mm|
|Tensile space (excluding piston travel)||14meter (40Feet)|
|Dimension||18000 (L) x 800(W) x 700(H) mm (estimate)|
|Power supply||415V±10%, 4.0kW|
|Load frame||1 set|
|Driving system||1 set|
|600kN loading cylinder||1 set|
|600kN load cell||1 set|
|Hydraulic power unit||1 set|
Hydraulic tension grip
Stranded wire diameter
|English version manual/ software||
Testing Machine operation Manual and software
(hard copy and 1 CD)
|Branded High performance Computer System & printer|
1.Horizontal structure, reasonable height, easy to operate, stable transmission.
2.Loading cylinder with excellent center alignment and shock absorbing performance.
3.Servo system with pressure difference regulation ability to reduce energy consumption, reduce heat and protect the oil.
4.Apply imported servo valve with fast response and high control precision.
5.Imported tension/compression force transducer with high precision and stability can be verified by
compression direction and used at tensile direction.
1. Resolution is up to 1/350,000FS
2. Based on advanced adaptive neuron PID control algorithm, closed-loop control of stain, stress,
load, displacement and extension. All control modes shift easily and smoothly.
3. 8-channel analog signal acquisition and 3-channel digital signal acquisition
4. USB communication
5. Provide fully automatic control of metal tensile tests. Separate control of force, extension and displacement
during elastic stage, plastic stage and hardening stage.
1. Open test procedure setup: customer can compile the test procedures by themselves.
2. Curve real-time display: force, displacement, speed and extension.
3.Open test report: customer can customize the report template according to their needs and the report
can be exported to EXCEL for second time edit.
4. Powerful authorization management: the administrator can allocate different functions for different
operators to avoid any misuse.
5. Powerful expandability: software can communicate with serial port; collect data like micrometer and
centimeter. 6-channel is preserved for expansion with real-time data acquisition and display and process.
6. Data query function: customer can search according to serial number, date, test procedure name and etc.
7. Rich curve analysis function: software can mark the characteristic point, zone in/out the curve and explore
the curve. During the test, three different types of curves can be display at the same time. After test,
customer can customize the upper and lower yield point, greatly facilitating data analysis.
8. Unit definition: Also user can define the unit by themselves using formula.
9. Software provides limit protection, position limit protection, over-capacity protection.
