Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine

China Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier
Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine supplier

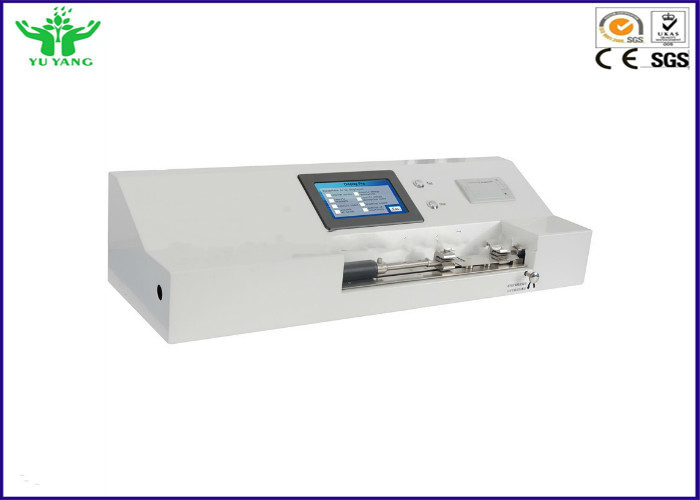

Large Image :  Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: ISO 1924 GB/T12914 GB/T24328.3 GB/T24328.4,
Model Number: YYL-021

Payment & Shipping Terms:

Packaging Details: wooden case
Delivery Time: 8-10 work days
Supply Ability: 200 Set/Sets per Month
Contact Now
Detailed Product Description
Power Supply: AC220V±10% 50HZ Measuring Range: 0~30N(Toilet Paper)/0~100N/0~300N/0~500N
Accuracy: ±1% Tensile Velocity: 1~399 Mm/min(Can Be Adjusted )
Return Velocity: 1~299 Mm/min(Can Be Adjusted ) Clamp Pressure: 0.4-0.6MPa
Sample Width: 15mm 25mm 50mm Sample Length: (100-200mm)

Touch-screen Automatic Paper Tensile Tester Tensile Energy Absorption Testing Machine



Product Description:



It's the special instrument to test tensile force, tensile strength, fracture length, tensile energy absorption, tensile index, 180 °peel strength ,tensile energy absorption index of paper ,paperboard,plastic film,and other nonmetal material. With unique horizontal design ,the instrument has the characteristics of compact configuration,comprehensive functions, and easy operation. The instrument is reasonably constructed and ,adopting the component,assorted part,and single chip microcomputer with home and abroad currently advanced technology .It has all functions required in the standards,including parameters testing transition,regulation ,display,memory,and printing;and also the data processing functions,which can directly obtain the statistic results of all data;as well as the functions of sensor over-range protection,motor overload





Main charaters:



(1)Adopted the step motor with servo control, low noise, control precisly

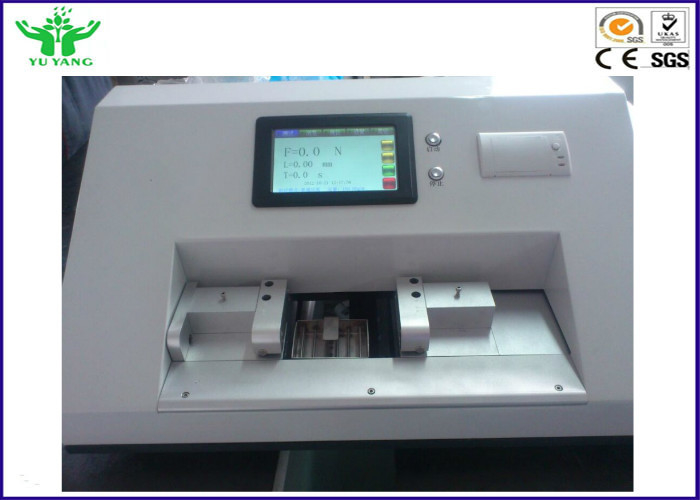

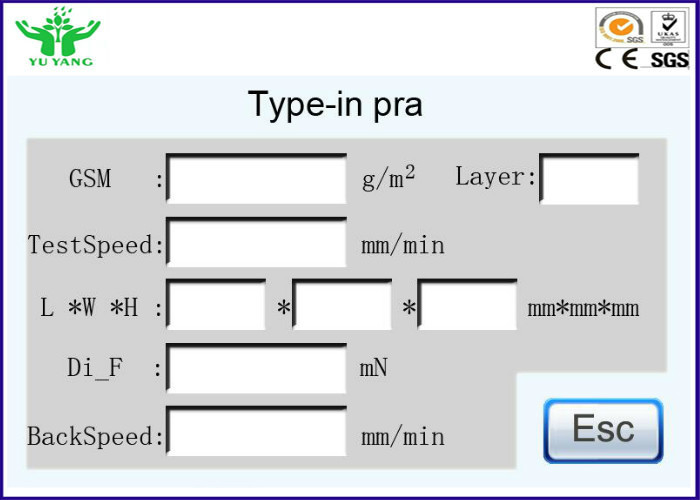

(2)Large Touch-screen,english menu.It can show the tensile time and strength and print tensile curve.

(3) When 0~30N, the accuracy is 0.01N, the distinguishability is 0.01N.

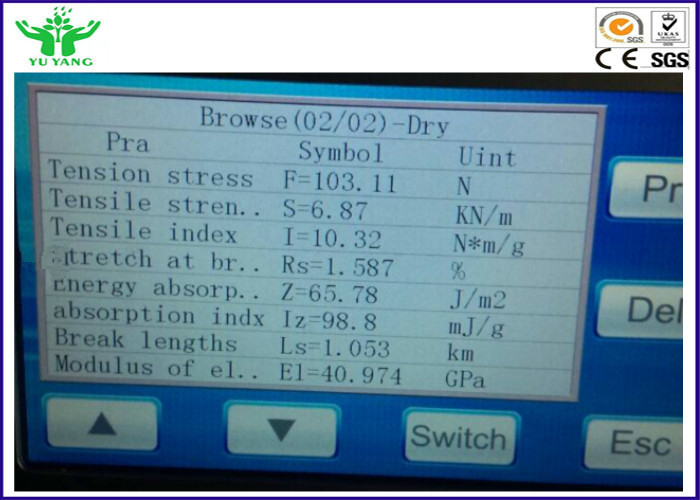

(4)Get the result directly including average, standard deviation, coefficient of variation

(5As to the normal size can test the speed directly.Besides can also adjusted by the needs.,set the fit tensile speed to change the sample’s length and width.

(6High automation with the advanced parts,has the function of testing message processing data and motion control,besides it can reset automatically ,remeber data,and protect and diagnose error

(7) .Equipped with RS232 interface and can communicate with the computer software

(8) According to the customer’s need ,equipped with different ergographs to measure,not only used in paper’s measurement, but aslo in other material’s measurement.





Technical Parameters:



1. Power supply: AC220V±10% 50HZ

2.Accuracy: ±1%

3.Measuring range: 0~30N(Toilet paper) /0~100N/0~300N/0~500N/0~1000N
4.Tensile velocity: 1.0~399mm/min (Can be adjusted digitally)
5.Return velocity :1~299mm/min
6.Sampler Length :200mm (200, 180, 150,100,90, 50 mm Can be adjusted digitally)



Power supply AC220V±10% 50HZ
Measuring range 0~30N(Toilet paper)/0~100N/0~300N/0~500N
Accuracy ±1%
Tensile velocity 1~399 mm/min(Can be adjusted )
Return velocity 1~299 mm/min(Can be adjusted )
Clamp pressure 0.4-0.6MPa
Sample width 15mm 25mm 50mm
Sample Length (50-200mm)
Dimension 920*420*300 mm
Net weight 75kg





Standards:



ISO 1924 GB/T12914 GB/T24328.3 GB/T24328.4



Touch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing MachineTouch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing MachineTouch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing MachineTouch-screen Automatic Paper Tensile Testing Machine Tensile Energy Absorption Testing Machine
