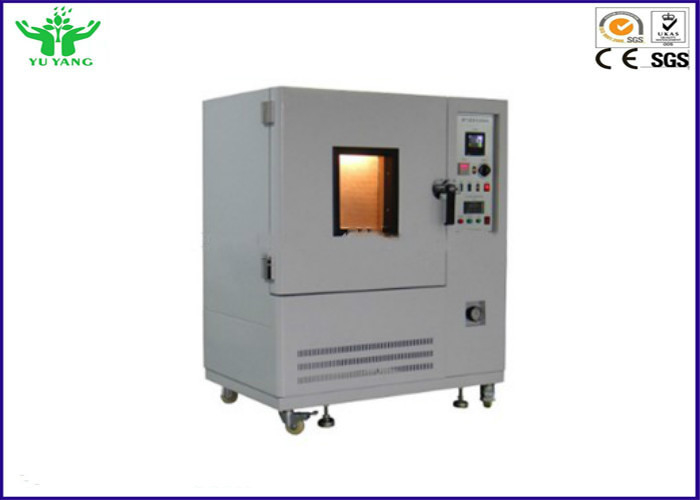

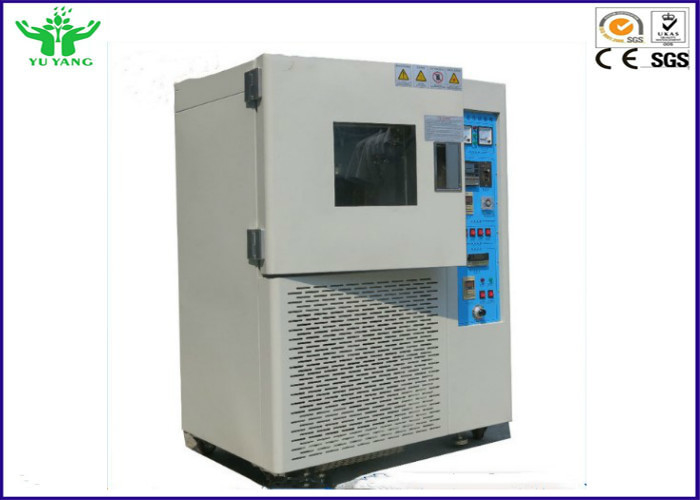

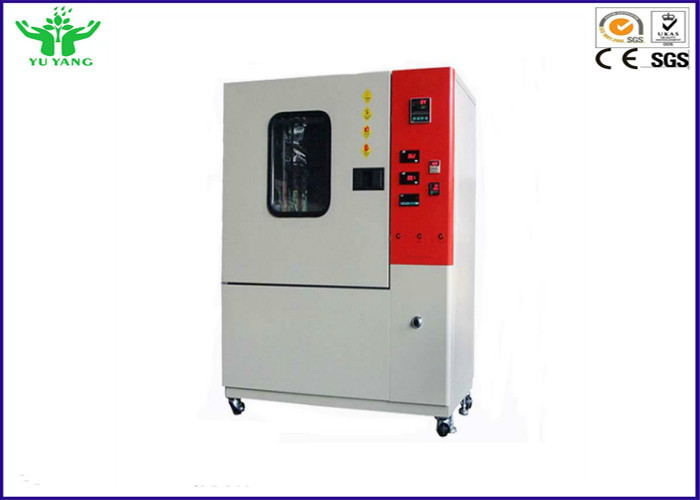

Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC

China Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC supplier
Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC supplier Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC supplier Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC supplier Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC supplier

Large Image :  Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC

Product Details:

Place of Origin: Chine
Brand Name: YUYANG
Certification: UL1581-2006:420.9, ASTMD5423-2005, ASTMD5374-2005
Model Number: YYW-013

Payment & Shipping Terms:

Packaging Details: Strong wooden case
Delivery Time: 5-8 work days
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Temperature Range: RT+10ºC~200ºC (300ºC) Uniformity Of Distribution: ±2.0ºC
Air Ventilation Rate: 0-200 Times/hr Adjustable, With An Ventilative Adjustment Button, Watt/Hour Speed Of Test Frame ( RPM): 5-10
Temp.Constancy:: +/- 0.5 Degree Celsius Temp.Uniformity:: +/- 2 Degree Celsius~+/-3 Degree Celsius





Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC



Product Description:


Ventilator-Aging Test Chamber is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: Wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.





Ventilation Conversion Formula:


N=3590(X-Y)x2/VDt
N: Ventilators;
V: Capacity of case;
X: Power consumed when open the air valve
Y: Power consumed when closed
T: Temperature difference between working and environmental



features:



1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.
2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.
4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.
5. Good uniformity of temperature
7. With D.50mm test holes on the left side for external test power line or signal line.




Saftey device:


1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.



Model YYW-013-45 YYW-013-60 YYW-013-75
Internal Dimension W×H×D(mm) 450×500×450 500×600×500 600×750×600
External Dimension W×H×D(mm) 1000×1000×700 1150×1200×850 1350×1500×1000
Internal and External Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated.
Temperature Range RT+10 degree ~200 degree (300 degree )
Uniformity of Distribution ±2.0 degree
Air Ventilation Rate 0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour
Speed of Test Frame ( RPM) 5-10
Power AC220V





Standard:



UL1581-2006:420.9, ASTMD5423-2005, ASTMD5374-2005



Ventilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºCVentilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºCVentilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºCVentilation Type Aging Test Chamber for Testing the Wire And Cable Insulator ±2.0ºC
