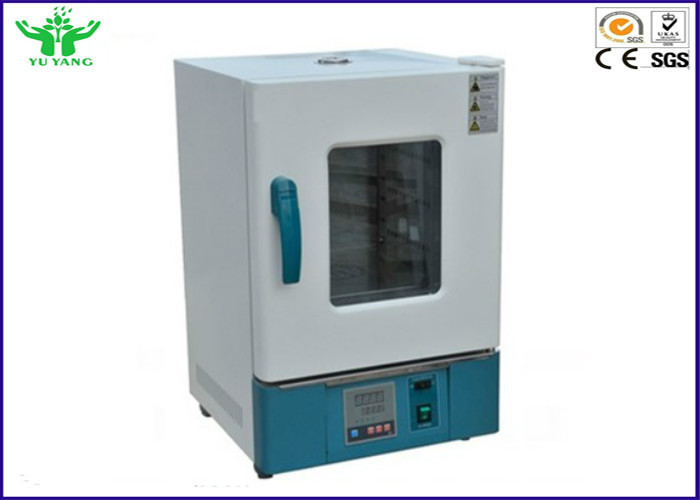

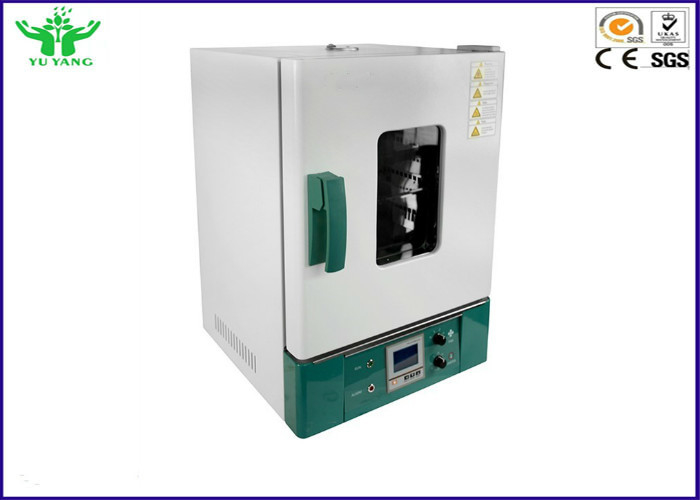

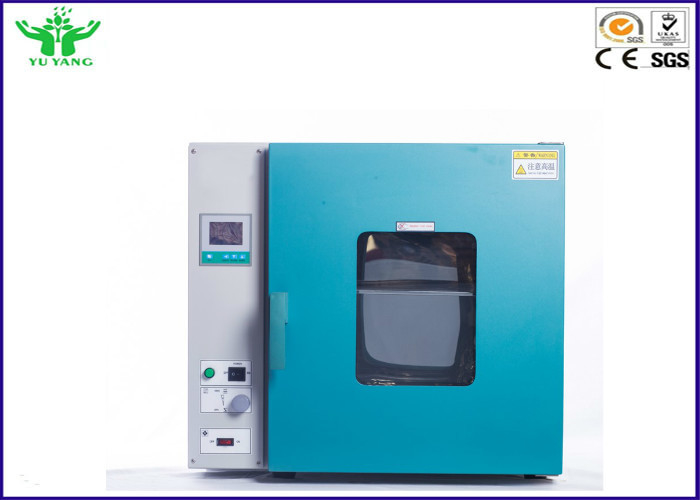

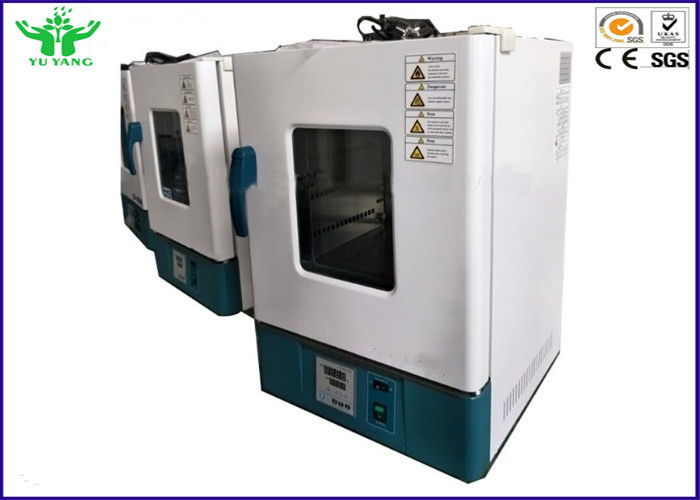

100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment

100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment

  • 100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
  • 100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
  • 100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
  • 100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
  • 100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
  • 100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO9001
Model Number: YYE-002
Payment & Shipping Terms:
Packaging Details: Standard Export Woodern Case
Delivery Time: 10-15 work days
Supply Ability: 300 Piece/Pieces per Month
Contact Now
Detailed Product Description
Tem. Range:: RT+10~300 ℃ Tem. Motion:: ±1.0 ℃
Timing:: 0~9999min Voltage:: 100-120/200-240V
Heating Source:: Electricity Tem. Range (°C): RT+5~300°C
Ambient Tem. (°C): 5-40°C
High Light:

thermal shock test chamber

,

salt spray test chamber

100-120/200-240V Forced Blast Hot Air drying oven Environmental Test Chamber ±1.0 ℃

Product Description

Product Description:



This equipment is widely used for drying, curing, melting and heating in experiments of industrial enterprises, scientific research institutions, and health and medicine units etc.



Characteristics:



1. Vertical type, cold rolling steel electrostatic spraying exterior.



2. Well coordinated bottom air blower and heater and vertical hot air circulation ensure the temperature evenness.

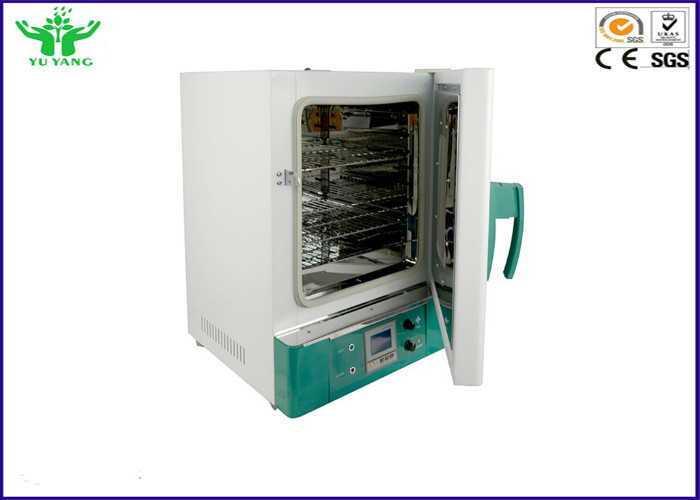

3. High quality mirror finished stainless steel interion foursquare semicircle transition; flexible positioning and removable shelf; airduct lateral plate and bottom heater covering are easy to assembly and disassembly for convenient cleaning.

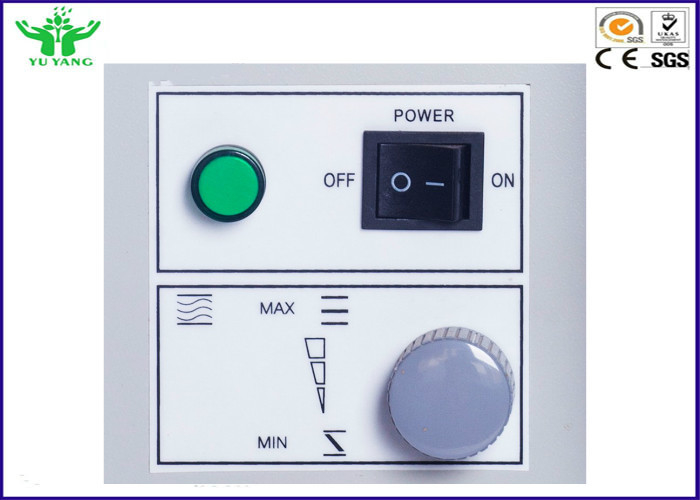

4. PID micro-computer intelligent temperature controller with functions of timing and over-temperature protection. Precise in temperature control and easy to read.



5. Use the low noise fans.



6. Hew design door with wide double-glass observation window, adjustable airtight buckle lock, and heat resistant silicon rubber seal, which efficiently prevent heat loss.





Model YYE-002-30B YYE-002-45B YYE-002-65B YYE-002-125BB YYE-002-230B YYE-002-625B
voltage                                                     220V50Hz
Tem.Range℃                                                       RT+5-300℃
Tem.Motion℃                                                           ±1.0℃
Tem.Resolution Ratio                                                          5-40℃
Ambient tem℃ 0.8 1.2 1.6 2.3 3 5
Heating power(KW) 310*310*310 350*350*350 400*360*450 500*450*550 600*500*750 660*760*1250
Inner Champer Size(mm) 460*510*695 500*550*735
Exterior Size(mm)
Packing Size(mm)
Load per rack(kg) 15KG2pcs 25KG2pcs 25KG3pcs
N.W(KG)
G.W(KG)
Timing range

Product Description

Standard:



ISO9001

100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment 0100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment 1100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment 2100-120 / 200-240V Forced Blast Hot Air Drying Oven Environmental Testing Equipment 3
