Electricity Oil Analyzer Equipment Demulsibility Characteristics Testing Equipment

Name: Electricity Oil Analyzer Equipment Demulsibility Characteristics Testing Equipment
Brand: YUYANG
SKU: DCT-I
Price: 2500 USD
Availability: InStock
Rating: 4.6 (155 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Certification:	ISO
Model Number:	DCT-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD2500
Packaging Details:	Plywood case
Delivery Time:	15 days
Supply Ability:	100 Sets per month

Contact Now

Detailed Product Description

Test Standard:	ASTM D1401	Power Supply:	AC (220±10%) V, 50Hz
Keyword:	Demulsibility Characteristics Testing Equipment	Temperature Range:	(Room Temp.∼99.9)℃
Display:	LCD	Stirring Rate:	(1500±15) R/min
Maximum Power Consumption:	1200W	Size:	500mm×340mm×720mm
High Light:	oil testing machine , oil analyzer equipment

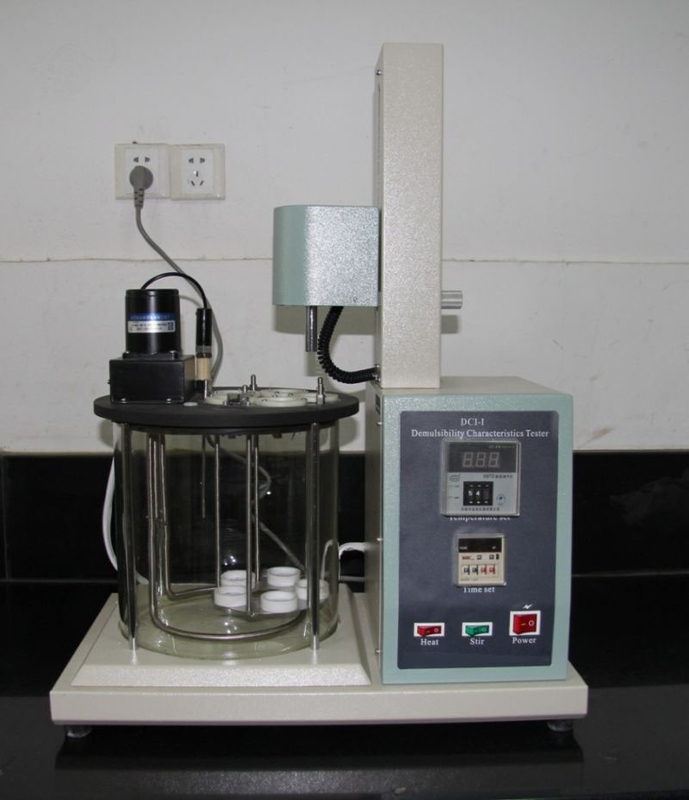

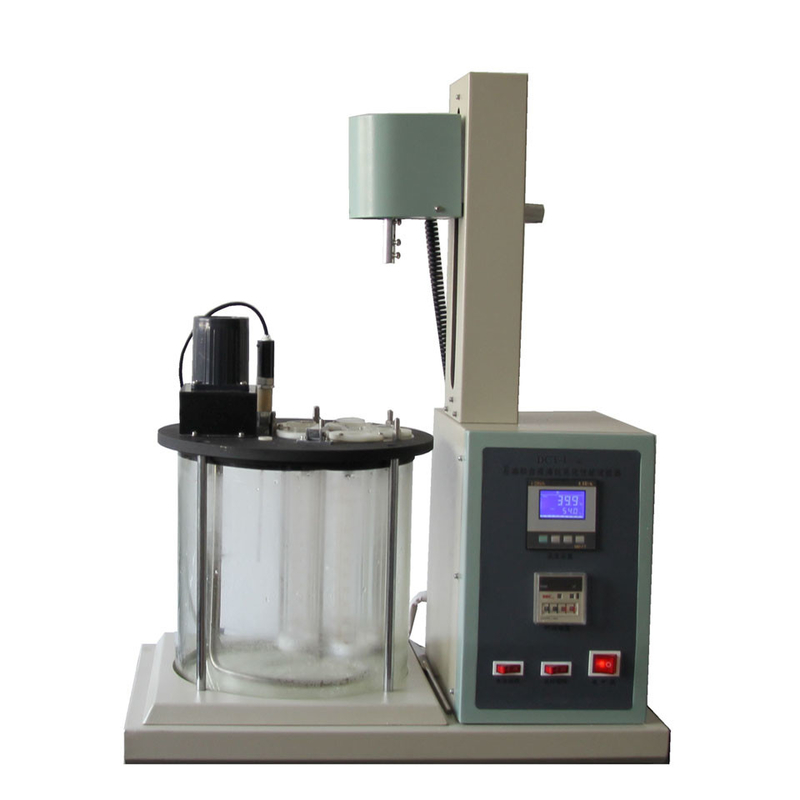

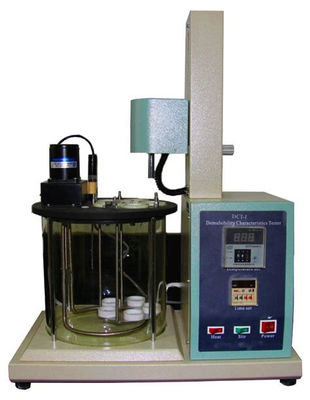

ASTM D1401 Lubricating Oil Demulsibility Characteristics Testing Equipment

Summary

DCT-I demulsibility characteristics tester is designed and made as per Standards GB/T7305 Petroleum oils and synthetic fluids — Determination of demulsibility characteristics and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids. It is suitable to determine the water separability of petroleum oils and synthetic fluids. It can be widely used in fields of petroleum, electricity, chemical industry , colleges and scientific research institutions.

I. Main technical features

1. DCT-I demulsibility characteristics test instrument adopts small bath and desktop structure. It is easy to operate and good-looking.

2. This apparatus adopts electric motor to stir automatically. The temperature is uniform. It can do determination for 5 samples one by one.

3. The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.

II. Main technical specifications

1. Power supply: AC (220±10%) V, 50Hz

2. Temperature range: (Room temp.∼99.9)℃

3. Temperature control accuracy: ±1℃

4. Temperature resolution: 0.1℃

5. Temperature display: LCD

6. Timing range: 1s∼9m 59s

7. Timing set: Digital control

8. Time display: Digital display

9. Stirring rate: (1500±15) r/min

10. Heating power: 1000W

11. Ambient temperature: (Room temp.∼35)℃

12. Relative humidity: ≤85％

13. Maximum Power consumption: 1200W

14. Dimension: 500mm×340mm×720mm

III.Accessories

No.	Item	Unit	Qty	Remarks
1	Stirring vane	Piece	1
2	Sample cylinder	Piece	6	1 is spare
3	Thermometer (0℃～100 ℃, scale division is 1 ℃)	Piece	1
4	Temperature sensor (200 mm in length)	Piece	1	Has been shipped to the instrument
5	Sheath for temperature sensor	Piece	1	Has been shipped to the instrument
6	Stopping ring for thermometer (1 #)	Piece	6
7	10A fuse (Φ5×20)	Piece	2
