| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | CRT-II |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2000 |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 days |
| Supply Ability: | 100 sets per month |
| Keyword: | Contact Resistance Tester | Test Standard: | IEC62271 |
|---|---|---|---|
| Power Supply: | AC220V±10%, 50/60Hz±10% | Display: | LCD |
| Measuring Range: | 0-1999.9 μΩ | Measuring Current: | 100A,200A,400A,600A |
| Test Object: | Circuit Breaker | Warranty: | 1 Year |
| High Light: | electrical test equipment,electrical testing tools |
||

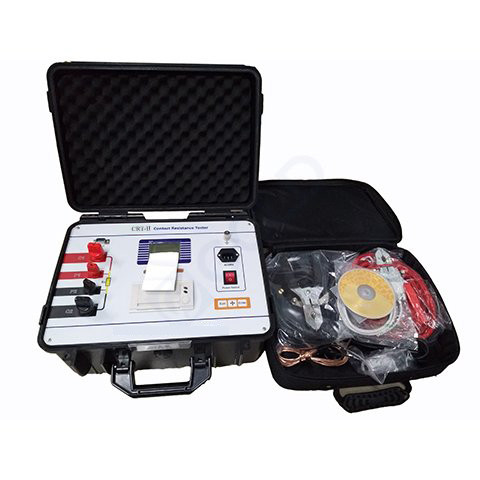

100A 200A 400A 600A Low Contact Loop Resistance Tester
Introduction:
Contact resistance tester is used to test the contact resistance of circuit breaker or high current cable contacts.
It is designed according to IEC62271.
The main application of the tester is measurement of circuit breaker contact resistance.
All the test results of loop resistance tester could be print by the micro-printer which is integrated in the tester.
Also all the test results saved in the low resistance meter could be uploaded to PC computer and then convert to MS WORD document.
Features:
Rapid test;
Result print;
Upload data to PC;
Specifications:
| 1 | Measuring range | 0-1999.9 μΩ Resolution:0.1 μΩ |
| 2 | Measuring current | DC 100A, 200A, 400A, 600A for choice |
| 3 | Measuring precision | 0.5 %RGD+0.05%FS |
| 4 | Display mode | LCD |
| 5 | Data storage | Save no more than 100 groups of data |
| 6 | Data connection | RS232 computer interface |
| 7 | Rated power supply | AC220V |
| 8 | Size | 340mm× 280mm × 210mm |
| 9 | Environment temperature | -10 ℃~+40 ℃ |
| 10 | Relative humidity | <80% |
