Electrical Oil Test Set Dielectric Dissipation Factor Volume Resistivity Tester

China Electrical Oil Test Set Dielectric Dissipation Factor Volume Resistivity Tester supplier
Electrical Oil Test Set Dielectric Dissipation Factor Volume Resistivity Tester supplier Electrical Oil Test Set Dielectric Dissipation Factor Volume Resistivity Tester supplier

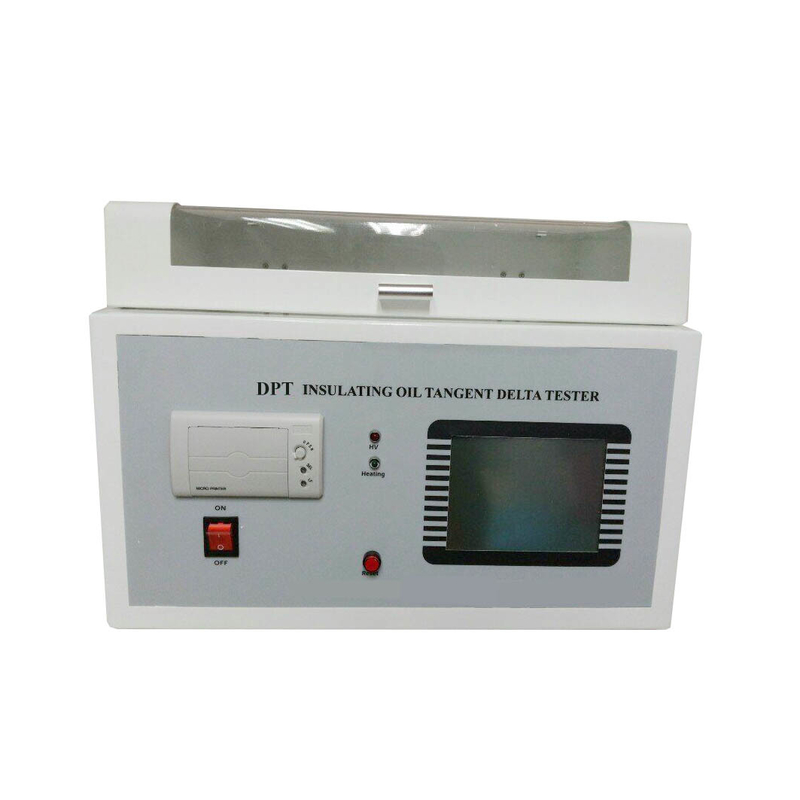

Large Image :  Electrical Oil Test Set Dielectric Dissipation Factor Volume Resistivity Tester

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: DPT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD5000
Packaging Details: PLYWOOD CASE
Delivery Time: 15 DAYS
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description
Keyword: Dissipation Factor Tester,Volume Resistivity Meter,dielectric Loss Tester Power Supply: AC 220V±10% Without Frequency Limit
Temperature Control Range: <100℃ Size: 450(L)×310(W)×360(H)
Weight: 21kg Warranty: 1 Year

Insulation Oil Dielectric Dissipation Factor Volume Resistivity Tester



I. Introduction:



Automatic Dielectric Dissipation Factor Tester is a high-precision

instrument, which can be applied to measure dielectric loss angle and Volume Resistivity of
insulating oil etc.
This oil tan delta analyzer is integrated with oil cup for dielectric loss, temperature-control equipment,
temperature sensor, test-bridge for dielectric loss, AC trial electrical source, standard capacitor,
high resistance meter and DC high-voltage power etc.
The most advanced heating mode of high frequency induction is applied to the heating part of this iinsulation oil dissipation factor tester, which has the advantage of non-contact of oil cup and heating unit, homogeneous heating, quick velocity and convenient control etc. AC-DC-AC conversion mode is applied to AC trial electrical source so that the problem how to measure correctly under the fluctuation of voltage and frequency can be avoided. Even when the electric generator is working, the transformer oil volumn resistivity tester can operate correctly.
The inner standard capacitor is SF6 three-pole inflate capacitor, whose dielectric loss and
capacitance is not influenced by environmental temperature and dampness etc. In this way, the
accuracy of insulation oil dielectric loss tester is guaranteed conformably after a long-time application.





II. Specifications:

Condition of Use -5℃-40℃ RH<80%
Power Source AC 220V±10% Without Frequency Limit
AC High Voltage Output 400V-2200V ±2% Every 100V 50VA
DC High Voltage Output 00V-2200V ±2%
Temperature Control Induction Stove Maximal Power 500W
Temperature Control Range <100℃
Temperature Measuring Error ±0.5℃
Control Temperature Error 0.1℃
Control Temperature Time Room Temperature 90℃ <20min

Measuring Range

tgδ Without Limit

Cx 15PF-300PF

Rx 10M-10T

Resolution

tgδ 0.001%

Cx 0.01pF

Rx 0.01

Precision

delta tgδ:±(Reading*0.5%+0.020%)

delta Cx :±(Reading*0.5%+0.5PF)

delta Rx :±Reading * 10%

Relative Dielectric Loss Constant Εr Calculated Automatically
Volume Resistivity ρ Calculated Automatically
Dimension 450(L)×310(W)×360(H)
Net Weight 21KG

Electrical Oil Test Set Dielectric Dissipation Factor Volume Resistivity Tester
