Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy

China Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy supplier
Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy supplier Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy supplier Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy supplier Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy supplier

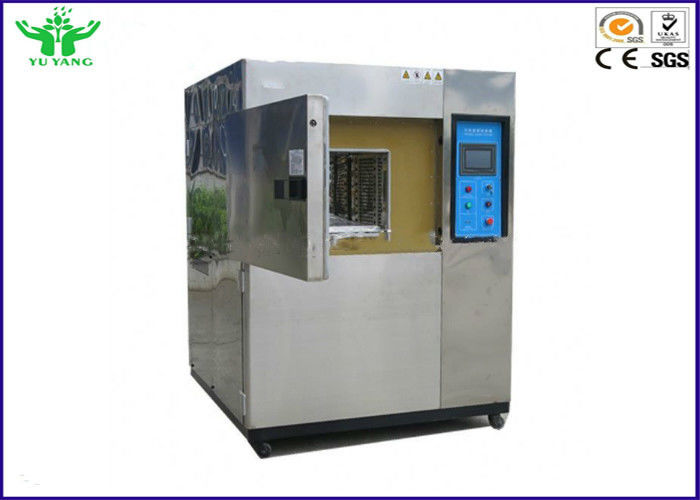

Large Image :  Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: UN38.3,UL1642,UL2054,GB 8897.4-2002,IEC60086-4 ,GB31241,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052,IEC62133-2012, SAE-J2464,GB31241
Model Number: YYE-037

Payment & Shipping Terms:

Packaging Details: strong wooden case
Delivery Time: 15-20 work days
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Control Method:: PLC Touch Screen Control Temperature Range:: Ambient Temperature~200℃
Distribute Temp:: ±2.0℃(non-load) Temperature Rising Rate:: RT~150℃(5℃±2℃/minutes )
Power:: Electronic, 3KW Control Accuracy:: ±0.5℃
Power Source:: AC220V 50Hz Heating Time:: (5±2)°C/min

(5±2)°C/min​ Environmental Testing Temperature thermal shock abuse chamber ±0.5℃



Product Description



The temperature rises at the predetermined rate to the testing temperature and hold on for some time. Use the hot wind circle to ensure the uniformity of the working temperature.



Testing Method:



Put the battery sample into the test box with the original temperature of 20±5℃ , then rise the temperature to 130±2℃ at the rate of (5±2℃) per minute. Keep the temperature for 10 min. The battery is qualified if no fire or explosion.



Testing Standard:



UN38.3,UL1642,UL2054,GB 8897.4-2002,IEC60086-4 ,GB31241,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052,IEC62133-2012, SAE-J2464,GB31241



 Feature:



1. External with SECC steel plate,powder paint treatment; Inner with SUS stainless steel .

2. High temperature resistant long axis motor.

3. Turbo-fan .

4. Silicon packing.

5. Over-temperature protection,over loading auto power cut off system.

6. Cycling system: forced flat air cycling .

7. Heating system :PID+S.S.R.

8. Temperature controller :PID micro computer control, automatic constant temperature, quick temperature compensation function .

9. Time function: when temperature reach the setting temperature, alarm for cut off power.

Glass observation windows optional, customize according to customer requirements.



Technical parameters:



Temperature range Ambient temperature~200℃ (controllable)
Control Accuracy ±0.5℃
Distribute Temp. ±2.0℃(non-load)
Temperature rising rate RT~150℃(5℃±2℃/minutes )
Control Method PLC Touch Screen Control
Working room dimension W600mm×D500mm×H600mm
External Dimension W940X D780 X H1620mm
Inner Chamber Material SUS304mirror stainless steel,clean and smooth internal chamber, easy for cleaning ,with high corrosion resistance performance.All internal material with environment friendly material,inter barrel with no trace argon arc welding
External Chamber Material SECC steel plate,powder painted (thickness1.5mm)
Bottom Installed with universal wheel
Observation Window Toughened glass with bursting disk.
Insulation Material High density glass wool,well insulation, best ensure the temperature insulation. With high temperature resistant silicon seal, loong time bear high temperature above 300 degree.
Power Source 220V 50HZ
Heating Power About 3KW



Plc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control AccuracyPlc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control AccuracyPlc Touch Screen Thermal Test Chamber 3kw With ± 0.5℃ Control Accuracy
