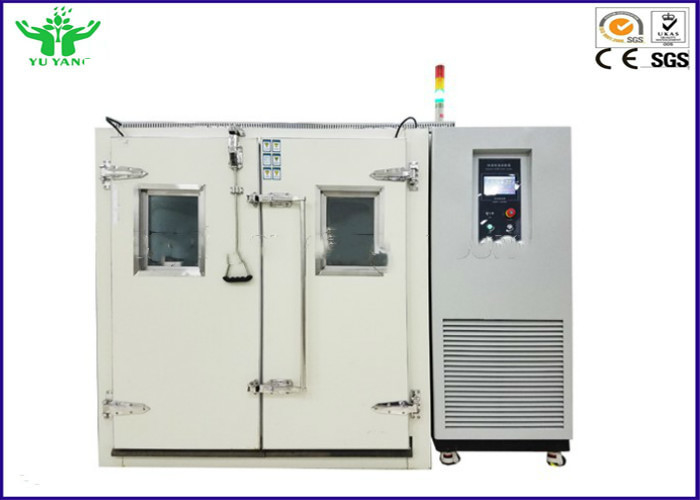

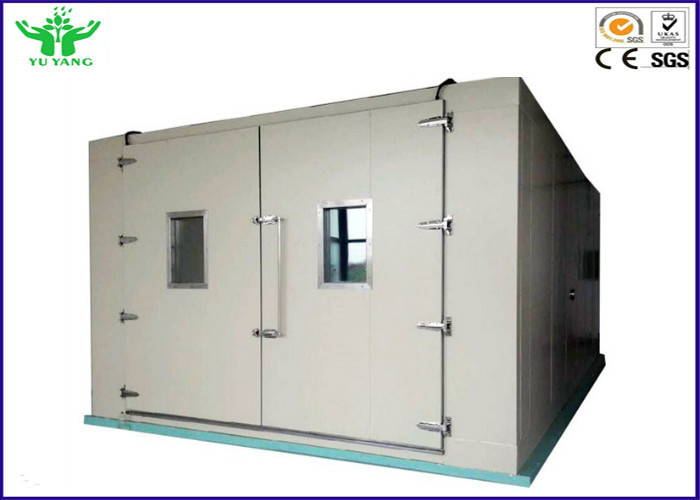

Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber

China Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber supplier
Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber supplier Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber supplier Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber supplier Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber supplier

Large Image :  Walk In Environmental Test Chamber , Condition Temperature And Humidity Test Chamber

Product Details:

Place of Origin: China
Brand Name: YUYANG
Model Number: YYE-038

Payment & Shipping Terms:

Packaging Details: Strong standard wood case
Delivery Time: 10-15 work days
Supply Ability: 150 Unit/Units per Month
Contact Now
Detailed Product Description
Humidity Range:: 20%~98%RH Temperature Range:: -20~150°C
Instrument Control Precision:: ±0.1°C 2%RH Heating And Cooling Rate:: 5°C/min 1.2°C/min
Fluctuation:: ±0.5°C ±2.5%RH Inner And Out Material:: SUS 304# Stainless

Walk In Environmental test chamber Condition Temperature And Humidity Test Chamber



Product Description:



Used to test various types of materials for their tolerances under condition of heat, cold, dry, humidity.
Application: For all types of electronic products quality inspection , electric appliance, and communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries products.



Purpose:

This chamber is suitable for the products to do the temperature and humidity testing. Inner box size, the temperature and humidity range, and special requirements can be customized. Laboratory floor loading capacity: 600kg/m2 (uniform load).



Features:



1. Touch panel for the convenient input of fixed values and programming with graphic depiction of nominal and real values, operating time, remaining cycles etc., including help functions


2. Programme memory for up to 100 programmes with a total of 1000 sections


3. Software support for potential-free inputs and outputs


4. Password protection, two-stage, to avoid unintentional alteration


5. Integrated limit value monitoring system for temperature and humidity


6. Inspection system provides information on malfunctions and collects operating time dat



Technical Parameters:





Model YYE-038(walk-in room)
Volume(m³) 9CBM
Interior Dimensions W2100 x H2100 x D2050mm
Exterior Dimensions W3250 x H2350 x D2250mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time +20 ºC~+80 ºC, Within 60 min
Pull down time +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam

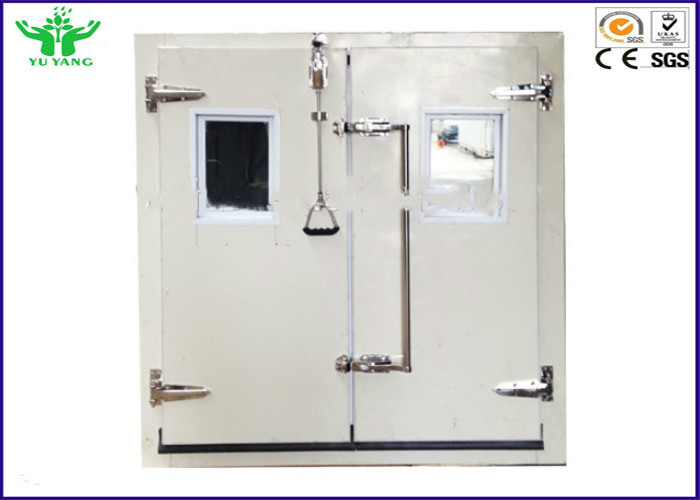

Door size (mm) Single wing: W800 x H1800; Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available
