Pottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 Minutes

China Pottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 Minutes supplier
Pottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 Minutes supplier Pottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 Minutes supplier

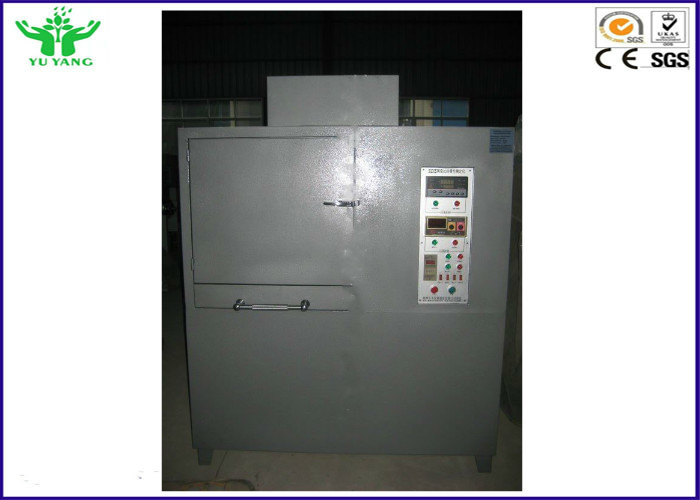

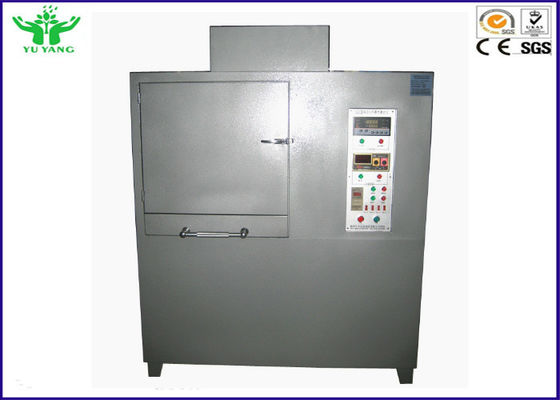

Large Image :  Pottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 Minutes

Product Details:

Place of Origin: China
Brand Name: YUYANG
Model Number: YYE-037

Payment & Shipping Terms:

Packaging Details: wooden case
Delivery Time: 8-10 work days
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Furnace Maximum Working Temperature:: 200oC ; Temperature Difference:: ±2oC;
Control Accuracy:: ± 2oC (at 200oC ) Flume Controlled Temperature Range :: 10-50oC ;
Unevenness Of Temperature:: ± 2oC Timer Range:: 0 ~ 180 Minutes
Compressor Power:: 380V; 2.2KW; Hydropower Largest Heating Power:: 6KW;

 0 ~ 180 minutes Daily-use ceramic plate pottery thermal stability testing chamber



Daily-use ceramic thermal stability tester is the thermal stability of ceramics for daily use professional testing equipment meets the standard method GB3298-1999.SQ005 daily-use ceramic thermal stability instrument can also test thermal stability for glass products and other silicate products.



The main technical parameters:



1. Furnace maximum working temperature: 200oC ;



2.Temperature difference: ±2oC;



3. Control accuracy: ± 2oC (at 200oC );



4. The effective volume: 350 × 350 × 350 mm; and 600 * 600 * 600mm or according to yr request;



5. Cold furnace heating time: 60 minutes (from room temperature -200oC );



6.Cold furnace temperature rising time: 5 minutes (200oC , Materials Weight 7kg);



7. flume controlled temperature range :10-50oC ;



8. Unevenness of temperature: ± 2oC ;



9. temperature control accuracy: ± 2oC ;



10. Rising temperature of hot material after into the water within five minutes: ± 4 (Materials temperature 300 , 7kg);



11. Furnace maximum power: 6KW;



12. Hydropower largest heating Power: 6KW;



13. Compressor Power: 380V; 2.2KW;



14. Timer range: 0 ~ 180 minutes.



Furnace maximum working temperature:  200oC
flume controlled temperature range : 10-50oC
Hydropower largest heating Power: 6KW
Timer range:  0 ~ 180 minutes
Unevenness of temperature: ± 2oC
Cold furnace heating time:  60 minutes (from room temperature -200oC )
Control accuracy: ± 2oC (at 200oC )
Compressor Power: 380V; 2.2KW



Pottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 MinutesPottery Thermal Stability Testing Chamber For Ceramic Plate 0 - 180 Minutes
