| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO 6722-1, GB/T 25085 |
| Model Number: | YY446 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5 sets per month |
| Product Name: | Fire Testing Equipment | Usage: | Single Core Flame Test |
|---|---|---|---|
| Material: | Stainless Steel | Rotor Flow Meter: | 0.1 L ~ 1 L/min |
| Dimension: | 1000 (W) * 600(D) * 1000 MM (H) | Power: | 220V 50HZ |
| High Light: | smoke density test apparatus,fire test chamber |
||

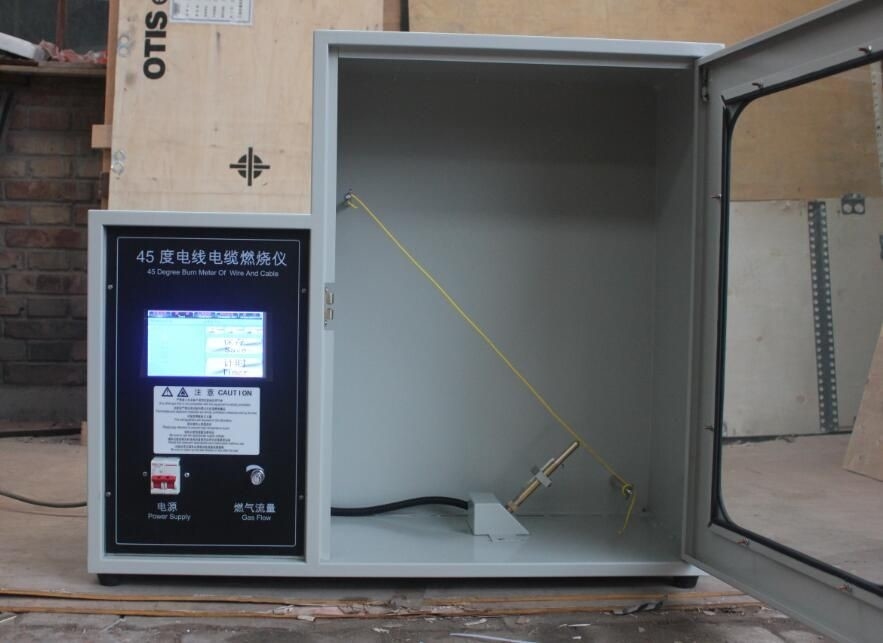

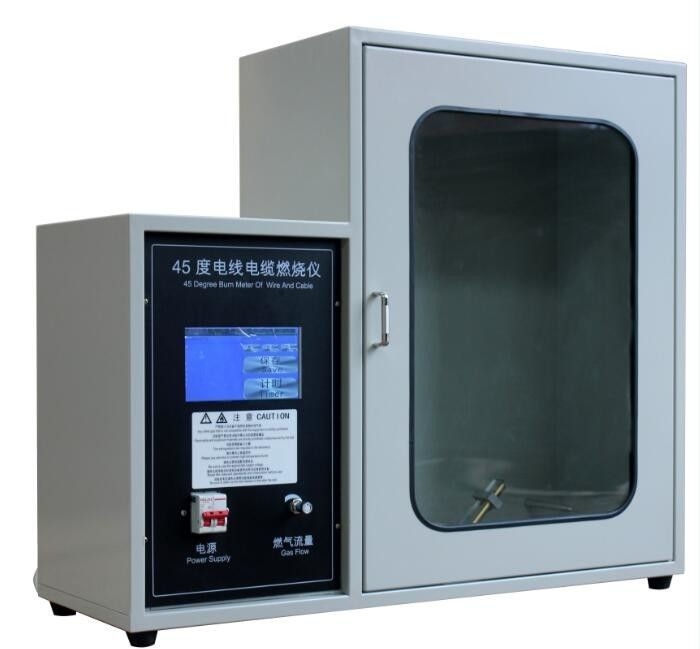

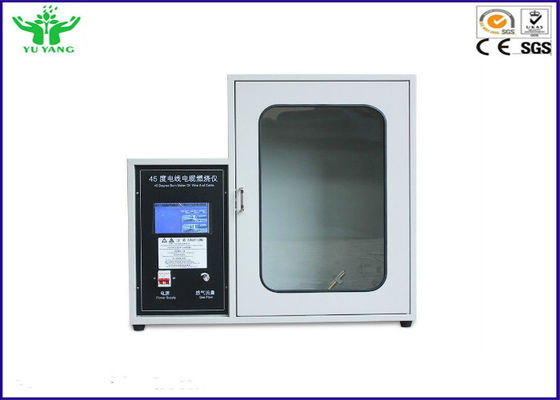

ISO 6722-1 Lab Single Core Wire Fire Testing Equipment with 60V/600V
Introductions:
Single wire / cable vertical combustion tester mainly for the conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appliances, electrical tools, electric motor, electric tools, electronic instruments, electrical instruments, electrical connectors and accessories such as electrical and electronic products and components of the research, production and quality inspection department. This section adopts the recommended product structure of the air mixing structure in Appendix B of GB18380.12-2008, and also meets the requirements of the quality inspection unit in detail.
Standards:
ISO 6722-1 Road vehicles -- 60 V and 600 V single-core cables -- Part 1: Dimensions, test methods and requirements for copper conductor cables
GB/T 25085 Road Vehicles – 60V and 600V
Application:
Rated voltage 60 V MMS or below ground vehicles with low voltage electrical system of primary cable flame retardant test, automotive wires.
Parameters:
| dimension | 500x650x400 mm |
| Burning gas using high purity propane gas | liquefied petroleum gas |
| Tested wires length:600mm(24 in) | Sample clamping Angle:45 degree |
| The bunsen burner has 13mm inlet hole and 10mm (3/8 in) nominal diameter, spray fire pipe outer flame diameter is 100mm (4in) | inner flame is 50 mm(1/2in),temperature of inner flame as least 900 degree celsius |
| The Bunsen burner flame should be put in the bottom of the samples and perpendicular to the axis of the sample | The tip of the inner flame role should be in the midpoint of the sample |
| Automatic ignition | flame burn the sample continue 15 seconds and be off automatically |
| After burning 15 seconds | will time the continued burning, complete the continued burning time until the continued burning crush out and put off the stop button |
| Burning gas is not supplied with the tester | it should be supplied by customer |
