|Product Name:||Wire Testing Equipment||Usage:||Robot Cable Bend Test|
|Test Station:||6 Station||Sample Diameter:||0.3 ~ 15 Mm Ф|
|Sample Speed:||0 ~ 45 Times/min||Control Mode:||Touch Screen Control|

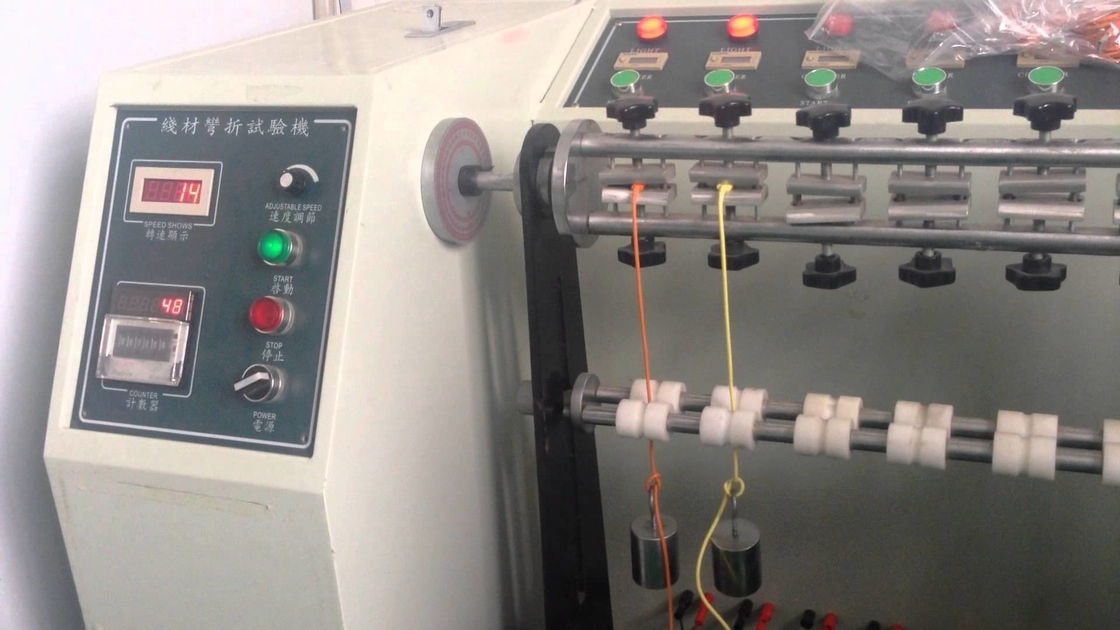

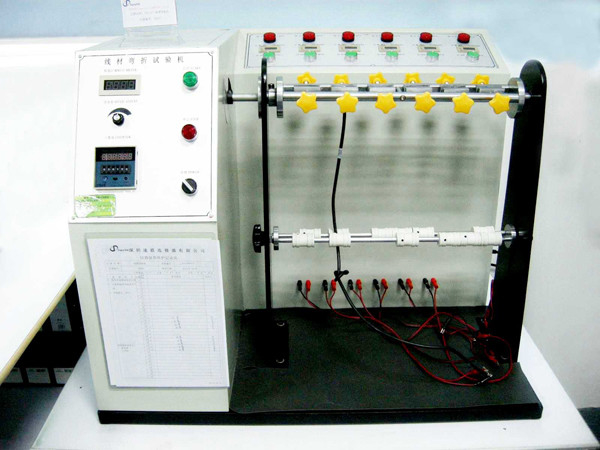

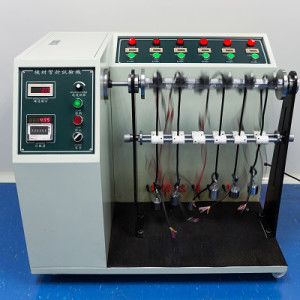

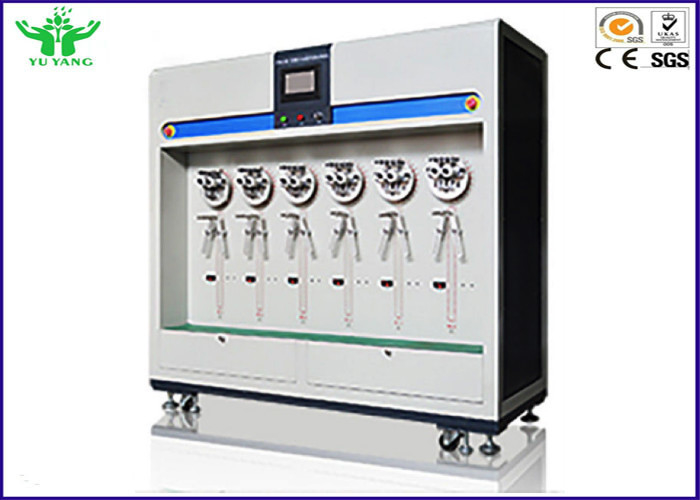

Robot Cable Bending Testing Equipment, 6 Station CRIA 0003.2 Wire Testing Equipment
The robot cable bending testing equipment conforms to TUV, VDE and UL. It can be used to test bending of the robot cable, flexible cable, bending flexible cable, drag chain cable, chain bend and high flexible cable. The machine is a six-station structure, which is mainly used for repeated bending test of metal wire materials, could detect metal wire’s performance of bearing plastic deformation and defects during repeated bending test.
CRIA 0003.2-2016 "industrial robot special cable part 2: test method"
1. Main parts: single chip microcomputer, touch screen display/control;
2. Parameter setting: machine control parameters;
3. Test conditions: test speed, test frequency, test angle, control condition, etc.
4. Test monitoring: current equipment operation state, such as actual number and speed of cable bending, etc.
5. Unsupervised: device can automatically determine the flow of the sample by monitoring the loop of the sample, and automatically stop when the circuit is broken.
6. Special fixture: to adjust the radius of curvature by adjusting the bending curvature roller with different wire lines.
7. The machine features: LCD+ single chip machine + motor, the transmission parts are all imported from original products, running smoothly, high positioning accuracy, long life, low noise;
8. The online monitoring points are divided into six groups, each with six pairs of interfaces, which can be monitored by 36 pairs of wires.
Test station: 6 Station;
Test method: the upper end is fixed and the lower end hoisting weight. The sample is bent with free rotational bending curvature.
Sample diameter: 0.3 ~ 15 mm Ф;
Bending curvature roll axis: Ф 15, 20, 30, 40 Ф, 50 mm Ф replaceable;
Sample speed: 0 ~ 45 times/min can be adjusted (note: the test cycle as consisting of four steps, namely as a back and forth around 180 °);
Bending Angle: + 90 °, from left side (start) to the right (end) is 180 °;
The distance between weight weights and bending points: 50-150mm can be adjusted;
Control mode: touch screen control;
Main body part: 45# high quality steel and aluminum structure;
Power and transmission: motor, raw industrial synchronous belt and synchronous wheel;
Test bending point curvature scroll axis: 45# high quality steel, surface chrome treatment;
The online monitoring points are divided into six groups with six pairs of interfaces for each group, which can meet 36 pairs of wires simultaneously, and the monitoring points are 72 points.
Motor power: 0.75kw;
Power: 220v50/60Hz 10A;
Machine size: W1850*D800*H1700mm (including foot wheel height).
