|Product Name:||Vertical Flammability Tester||Usage:||Material Melting Behavior Test|
|Material:||Stainless Steel||Radiant Shield Diameter:||100mm ± 5mm|
|Power:||AC 220V, 50 / 60hz, 15A||Weight:||25kg|
Automatic Interior Material Thermal Radiant Melt Flammability Tester with ECE R118 Annex 7
NF P92 Thermal Radiant Melt Drop Testing Machinery meets international standards NF P92-505, EU 95/28 / EC, ECE technical specifications and requirements of R118 Annex 7 of these Regulations. According to NF P 92-505 request, the test is additional test for M-class building materials.
NF P92 Thermal Radiant Melt Drop Testing Machinery is suitable for hot melt material effect in the primary heat source to evaluate the performance of dripping and burning performance testing. Flexible and thin materials can be tested.

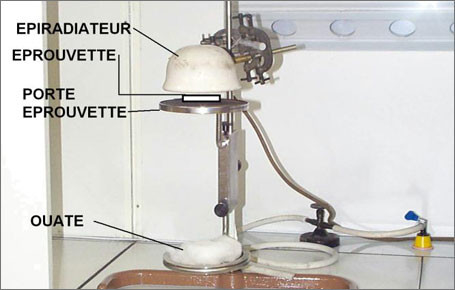

NF P92-505 Dripping test with electrical radiator, used for melting materials

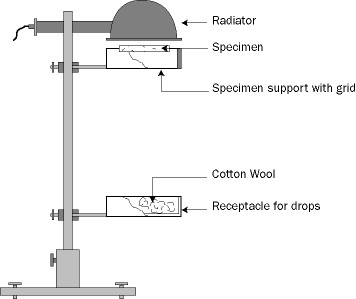

ECE R118 Annex 7 Test to determine the melting behavior of materials
1, All fixtures are made of stainless steel material, appearance nice and corrosion resistance;
2, Radiation bracket can be rotated, the rotation angle is greater than 90 degrees and easy to install the sample;
3, Sample installation height can be adjusted;
4, Electric power radiators
5, The radiant heat radiator can be adjusted linear through the power control automatic adjustment;
6, The radiation shield is a quartz glass and the opening diameter is 100mm ± 5mm;
7, The heat radiation reach to 3W / cm³ the position 30mm from the radiation shield plane.
8, Sample holder ring is made of stainless steel and the inner diameter is 118mm;
9, Take off the plate inner diameter is 118mm, depth 12mm, internal plug of cotton.
1, Power: Single phase 220V, 50Hz
2, The base size: 425 × 300mm
3, Maximum height: 680mm
4. Weight: 25kg
