|Product Name:||Building Material Fire Tester||Usage:||ECE R118 Annex 9 Test|
|Material:||Stainless Steel||Test Sample:||140 Mm × 140 Mm|
|Metal Cylinder:||Inner Diameter 120mm||Outer Diameter:||130 Mm|
ECE R118 Annex 9 Material to Repel Fuel or Lubricant Capacity Tester
Test to determine the capability of materials to repel fuel or lubricant,test the capability of insulation materials used in engine compartments and separate heating compartments.
ECE R118 Annex 9 Test to determine the capability of materials to repel fuel or lubricant
The test samples shall measure: 140 mm x 140 mm, thickness of the samples shall be 5mm

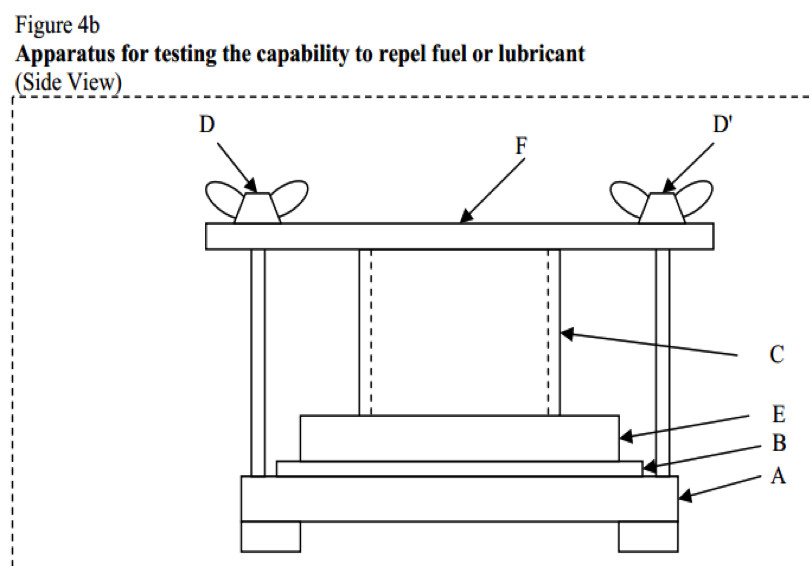

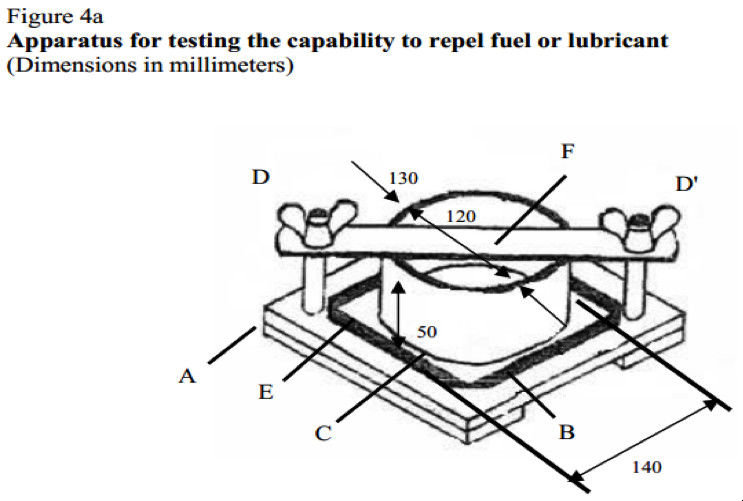

The apparatus consists of:
A. a base plate, with a hardness of at least 70 Shore D.
B. an absorbant surface on the baseplate (e.g. paper);
C. a metal cylinder (inner diameter of 120 mm, outer diameter of 130 mm, height of 50 mm);
D.-D' two screws with wing nuts;
F. top plate
