| Place of Origin: | China |
| Brand Name: | YUYANG |
| Model Number: | YYE-044 |
| Packaging Details: | export wooden case |
|---|---|
| Delivery Time: | 3-5 work days |
| Supply Ability: | 1000 Set/Sets per Month |
| Voltage Measuring Range:: | 0.1-5V,resolution 1mV | Voltage Measuring Accuracy:: | ±(0.1% RD+ 0.1%FS) |
|---|---|---|---|
| Range Of Output Current:: | ±2A | Current Precision:: | ±0.1%FS±0.1%RD |
| Constant Voltage Range(mV): | DC 2000 ~ 4500 | Support Battery Height Range:: | 10-95mm( Stepless Adjustment) |
| High Light: | thermal shock test chamber,salt spray test chamber |
||

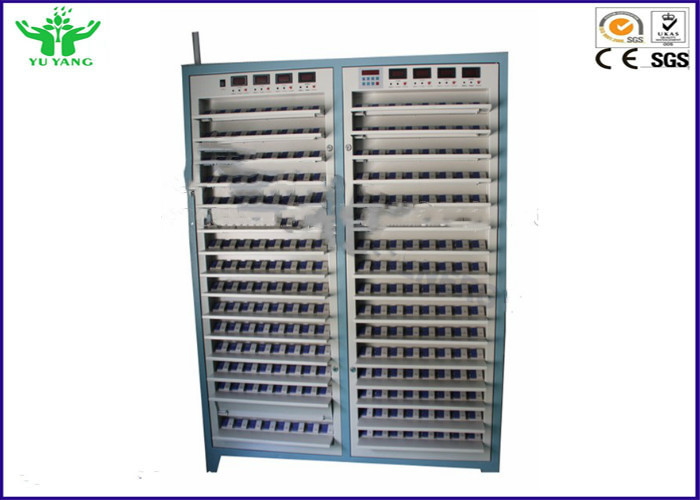

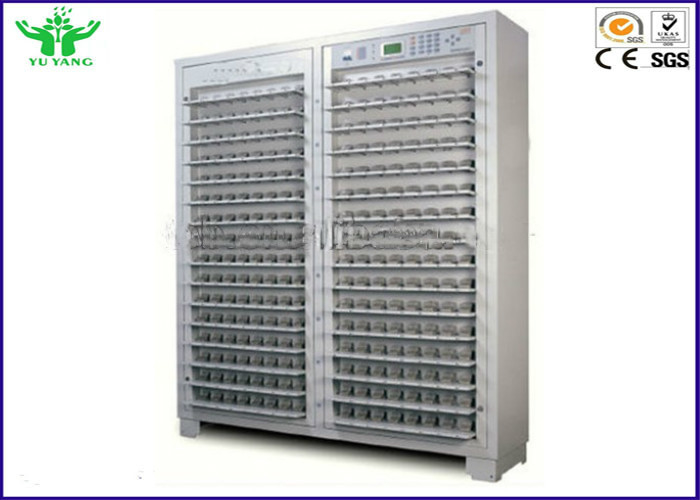

±0.1%FS±0.1%RD Battery Test Machine-Forming and Grading Machine DC 2000 ~ 4500
Product Description:
This system provides many applications in battery testing fields such as materials research, small-scale battery formation, capability grading, battery pack and the notebook computer battery testing and so on.
Parts:

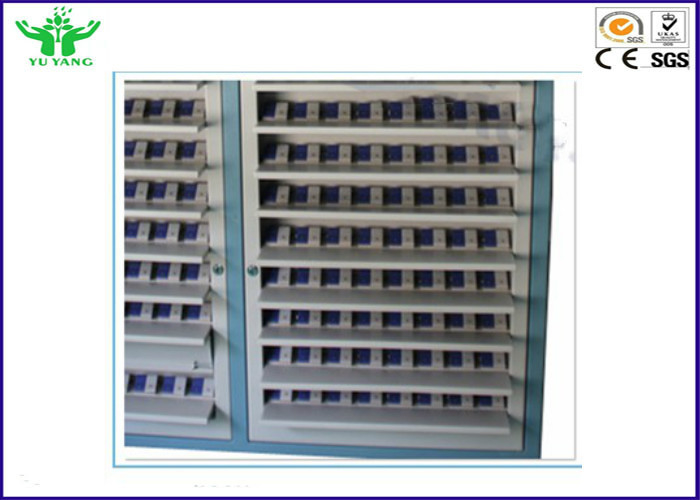

Cabinet, Clamp, Auto A/D Constant Current Source, Circuit Alarm, Operation Panel, etc
Function:
1. Special making for lithium battery.
2. Can be working separately, timing separately.
3. Auto A/D Current (Set the current, time, steps by keyboard.)
4. 16 serials tandem type constant current sources, each source can load 32pcs of batteries.
5. Constant current sources are separate, no influence on each other.
6. Each constant current source is corresponding with 3 1/2 current indications.
7. Power Fail Safeguard, can continuously work when the power gets well.
8. Special clamp for LiPo.
| Main technical parameters | Performance | |
| Source voltage | AC220V±10% 50HZ | |
| Channel control mode | Independent control | |
| Voltage | Voltage range | 0.1V-5V |
| Accuracy | ±(0.2% of reading + 0.2% of range) | |
| Current | Output current range | ±2000mA |
| Accuracy | ±(0.2% of reading + 0.2% of range) | |
| Constant pressure cut-off current | Min : 10mA | |
| Total equipment power | 8300W | |
| Time | Inspection time | Actual time<2S |
| Timing range | 0-9999min/step | |
| Date recording interval | ≥2S | |
| The separation conditions | Platform time, platform capacity | |
| Charging mode | Constant current charge,lithium battery charge,Ni-MH charge | |
| Discharging mode | Constant current discharge | |
| Conditions of constraint | Time, voltage, current, capacity | |
| Cycle | Cycle range | 1-9999 times |
| Steps pur cycle | 254 | |
| Cycle nested | Max 3 layers of nested | |
| Protection | Power-down data protection,off-line test function and Safety condition setting protection | |
| Output mode | 4 electrode | |
| Voice | ≤85dB | |
| Date base | My SQL | |
| Host computer communication mode | TCP/IP | |
| Date output mode | EXCEL,TXT,Chart | |
| Communication interface | Net ports | |
| Channel number per set | 512 | |
| Dimension(L*W*H) | 606*606*1524mm | |
| Working temperature | 0-45°C | |
| Storage temperature | 0-55°C | |
| Working humidity | 30%-80%RH | |
| Storage humidity | 30%-90%RH | |
