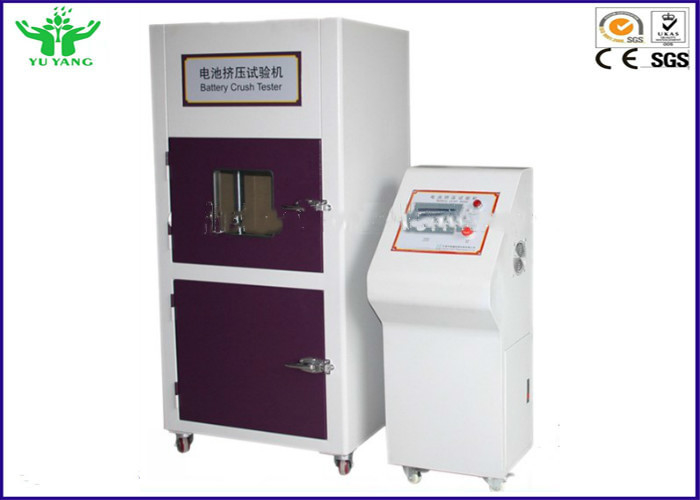

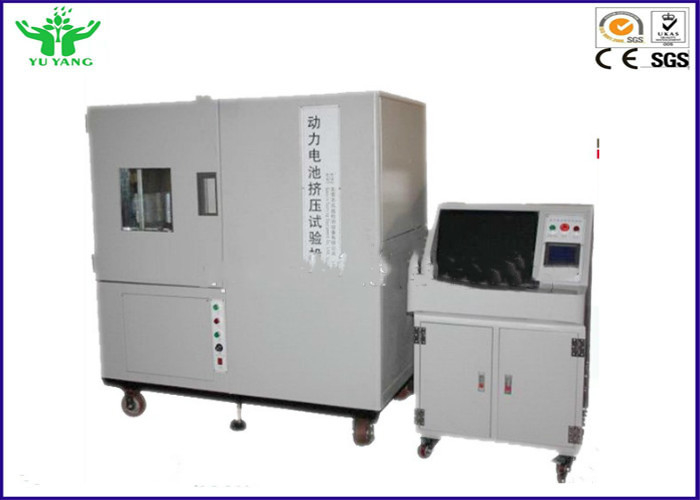

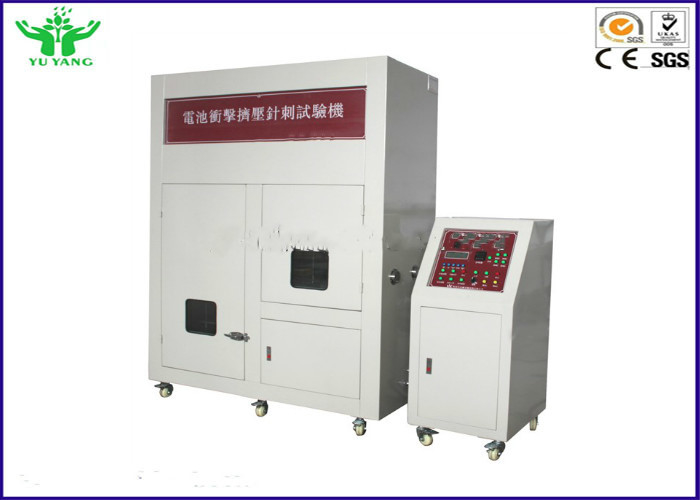

Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke

China Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke supplier
Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke supplier Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke supplier Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke supplier Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke supplier

Large Image :  Crushing Safety Battery Testing Equipment Ac 380v ± 10% With 300mm Stroke

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: SJ/T11169-1998, UL 1642:1995), SJ/T11170-1998, UL2054:1997), UL 1642, GB8897.4—2002, IEC60086-4:2000
Model Number: YYE-048

Payment & Shipping Terms:

Packaging Details: standard wooden cases
Delivery Time: 10-15 work days
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Stroke:: 300mm Temp. Sampling Range:: 0 ~ 1200℃
Temp. Resolution:: 0.1℃ Voltage. Temp. Accuracy:: ±1%FS
Input Power:: AC 380V ±10% , 50/60Hz Voltage Resolution:: 1mV

±1%FS Battery Crushing Safety Extrusion Machine AC 380V ±10% , 50/60Hz



Product Description:

The battery is to be crushed between two flat surfaces. The force for the crushing is to be applied by a hydraulic ram with a 32mm diameter piston. The crushing is to be continued until a pressure reading of 17.2 Mpa is reached on the hydraulic ram, resulting in an applied force of 13KN.Once the maximum pressure has been obtained it is to be released. A cylindrical or prismatic battery is to be crushed with its longitudinal axis parallel to the flat surfaces of the crushing apparatus. A prismatic battery is also to be rotated 90 degrees around its longitudinal axis so that both the wide and narrow sides will be subjected to the crushing force. Each sample battery is to be subjected to a crushing force in only one direction. Separate samples are to be used for each test.



Feature:

This equipment mainly used for safety inspection for batteries like vehicles lithium batteries,power battery,battery-cell, electric vehicle battery etc, which integrated with pressure system,explosion-proof system, data acquisition system,computer control system together,adopt independent machine and control system, realized remote control and testing .And have multi safety protection devices, available to comply with various test standard.

This equipment becomes necessary inspection equipment for the battery manufacturer and researcher.





Technical Parameter:



Model YYE-048-10T YYE-048-20T YYE-048-50T YYE-048-100T YYE-048-200T YYE-048-500T
Pressure(T) 10 20 50 100 200 500
Max. Displacement(mm) 500 500 500 1000 1000 1000
Auxiliary Function Voltage, Temperature Sampling, Camera Monitoring system, Fire-extinguishing system, explosion-proof system, smoke evacuation system
Crush Speed 50 ~ 200mm/min(Controllable)
Test Space(mm) 500X500X500MM,800X800X800MM,1000X1000X1000MM or Customize
External Dimension According to actual design
Configuration Voltage Selection 0—10V,0--100V,0—1000V
Temp. SamplingRange 0 ~ 1200℃
Voltage. Temp. Accuracy ±1%FS
Voltage Resolution 1mV
Temp. Resolution 0.1℃
Function Speed 50 ~ 200mm/min(Controllable)
Crush Range 0—2000MMto select
Structure Vertical&horizontal (select according to actual size)
Testing Condition Force,displacement,voltage ,one of them or three combined
Crush Method Vertical, Horizontal
Crush Deformation 0~100% multi-position setting, available for continuous multi layer deformation.
Crush Remaining Time 0~99hours99mins99sec,time and status free setting and controllable.
Driven Method Servo Motor Electro hydraulic servo
Crush Accuracy ±0.5% ±1%



Standard:

1.01.GB/T 18332.2-2001 Nickel-metal hydride batteries of electric road vehicles

1.02.QC/T 743 Lithium-ion batteries for electric vehicles

1.03.QC/T 744Nickle-metal hydride batteries for electric vehicles

1.04.Vehicles battery related international standard (ISO/IEC/SAE/JEVA/CEN etc.) International Standard Association and 863 plan electric vehicles major projects related test specifications

1.05. QB/T 2947.3-2008 Electric bicycles-cell or battery and chargers Part 3:Li-ion batteries and chargers

1.06. DB12/T246-2005 Lithium batteries for electrical bicycles test specification

1.07. GB 19521.11-2005 Safety code for inspection of hazardous properties for dangerous goods of lithium batteries
