|Test Standard:||UL94,IEC 60695-11-10,ISO 9772,ISO 9773||Application Field:||Electerical,Plastic Materials|
|Size:||950 Mm (W) X 850 Mm (D) X 1350 Mm(D)||Weight:||58KG|
|Color:||Silver||Electrical:||110V AC 60Hz / 230V AC 50Hz|
|Gas Supplies:||Propane Gas Or Methane Gas||Ambient Temperature:||Operating 10°C To 35°C|

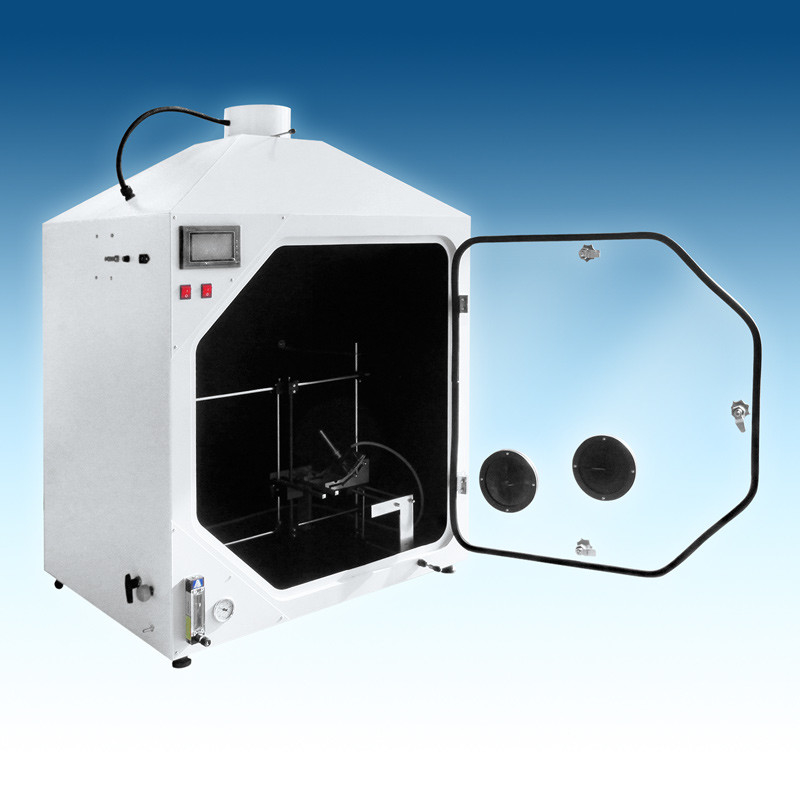

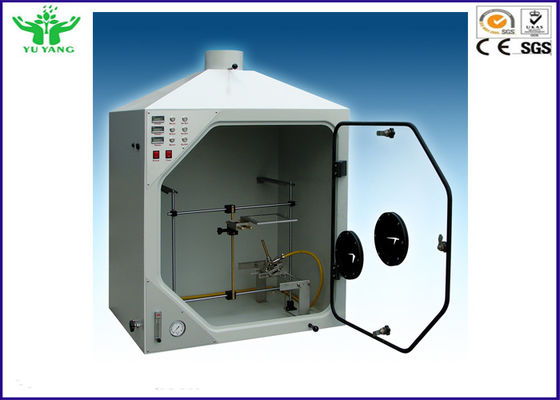

UL94 Horizontal And Vertical Flame Test Chamber
The test chamber is widely applied throughout industry, especially in electrical manufacturing, where it is widely used for the testing of electrical products. The test measures the burning rate of samples positioned either horizontally or vertically.
It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.
Horizontal Burning Test; UL 94HB (ASTM D 635, IEC 60695-11-10, IEC 60707, ISO 1210).
Vertical Burning Test: UL 94 V-0, V-1, or V-2 (ASTM D 3801, IEC 60695-11-10, IEC 60707, ISO 1210).
Vertical Burning Test: 5VA or 5VB (ASTM D 5048, IEC 60695-11-20, IEC 60707, ISO 9772).
Thin Material Vertical Burning Test: VTM-0, VTM-1, or VTM-2 (ASTM D 4804, ISO 9773).
Horizontal Burning Foamed Material Test: HF- 1, HF-2 or HBF (ASTM D 4986, ISO 9772).
Burners (ASTM D 5025, ASTM D 5207, ISO 10093, ISO 103351)
A bench mounted draft free combustion chamber having a large inside volume of 0.75m3
Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
Fully adjustable horizontal and vertical specimen supports.
A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and
precision gas control system including gas flow meter, pressure regulator, pressure gauge, U type water column tube.
Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
Auto Specimen Moving System and one testing timer convenient for the consumer to use.
Burner calibration kit, conforming to ASTM D 5207.
Installation requirements of Horizontal And Vertical Flame Test Chamber
|Electrical||110V AC 60Hz / 230V AC 50Hz|
|Ambient Temperature||Operating 10°C to 35°C|
|Gas supply||Propane Gas or Methane Gas|
