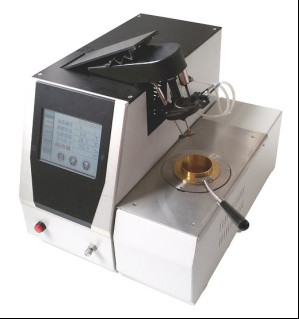

Small Pensky - Martens Closed Cup Test Instrument With Fully Automatic

Small Pensky - Martens Closed Cup Test Instrument With Fully Automatic

  • Small Pensky - Martens Closed Cup Test Instrument With Fully Automatic
  • Small Pensky - Martens Closed Cup Test Instrument With Fully Automatic
Small Pensky - Martens Closed Cup Test Instrument With Fully Automatic
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO
Model Number: PMCC-R1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD6500 per set
Packaging Details: Hardboard
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Standards: 12.GB/T261, ISO2719, ASTM D93, DIN51751 Display Mode: LCD
Measuring Range: Ambient~200℃ Refrigeration Method: Forced-air Cooling
Power Supply: 10.AC 220V±5%,50Hz Power Consumption: 380VA
Color: White With Black Warranty: 1 Year
High Light:

oil analysis machine

,

oil analyzer equipment

Fully Automatic Small Pensky-Martens Closed Cup Test Instrument



Introduction



According to GB261-83 and ISO2719-73 Pensky-Martens Closed Cup Flash Point Test Method,this instrument adopts micro-computer processing technology and advanced PID temperature controlling technology,with fast temperature rising speed,accurate temperature controlling and test result.This procedures of whole test is automatic,and it has functions of automatic atmosphere correction,automatic lifting,automatic temperature rising and switching,automatic opening cover and ignition,automatic end point checking,automatic printing out test result,automatic air cooling,automatic stop when over-heated.





I.Main features

  • It’s controlled by micro-computer,the whole test procedures and data printing are automatically proceeded.
  • Big LCD screen display in English,showing test temperature,oil number,test time etc.Whole test process is clear.
  • Micro-printer can print out the result with low cost
  • Temperature is raised by single-chip machine,which makes sure the accuracy of test result
  • When the test is finished,the machine can be cooled automatically by forced air.
  • The flame size can be adjusted
  • Automatic lifting system is easy to operate
  • It’s made by cold-rolled sheet,surface treated by Electrostatic spraying.It’s corrosion resisting and easy to clean.
  • The machine can be operated by manual or automatically
  • Correction function:current date,time,temperature and atmosphere
  • It has protection and self-diagnosis procedures
  • Both main controlling and measuring parts are imported,to make sure the reliability and stability.
  • The machine is compact,small and beautiful
  • High degree of automation:set flash point as per operation method on LCD display screen,press “Start” key,the whole test will be proceeded automatically.



II.Technical specifications

1 Applicable standards

GB/T261, ISO2719, ASTM D93, DIN51751

2

Display mode

LCD big screen in English

3

Display content

Control temperature and set temperature of expected flash point;

Fault warning;

Each simulated parameters and pressure setting

4

Measuring range

ambient~200℃

5

Measuring accuracy

±0.1℃

6

Accuracy

≤104℃±1℃ ,≥104℃±2℃

7

Repeatability

Flash point ≤104℃,error ±1℃

Flash point ≥104℃,error ±2℃

8

Refrigeration method

forced-air cooling

9

Power supply

AC 220V±5%,50HZ

10

Power consumption

380VA
11

Environment temperature

10~55℃

12

Environment humidity

30~80%



                                              Small Pensky - Martens Closed Cup Test Instrument With Fully Automatic 0
