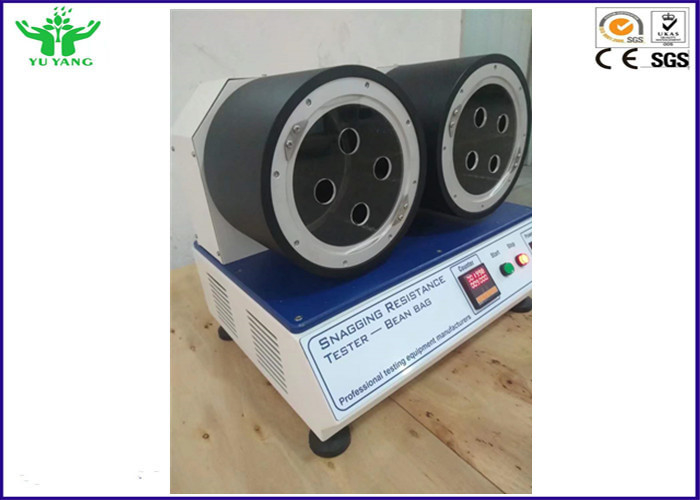

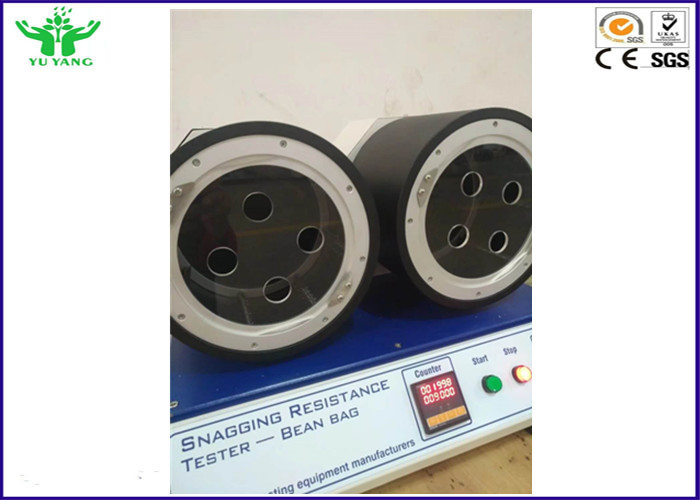

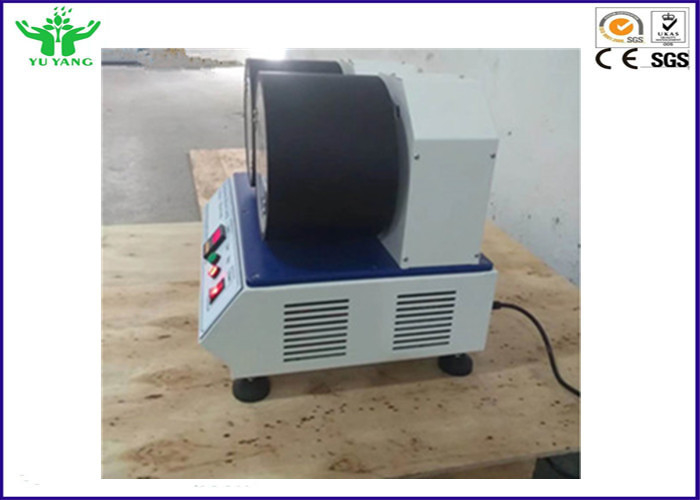

ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm

ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm

  • ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
  • ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
  • ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
  • ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
  • ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D5362, JIS L1058,M&S P21A
Model Number: YY004
Payment & Shipping Terms:
Packaging Details: Plywood Case
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Size Of Cylinder:: Dia. 200mm, Depth. 145mm Pinned Bars:: 8 PCS / Cylinder
Needles:: 9 PCS / Pinned Bar Bean Bag Weight:: 450±10g/pcs
Power:: 1∮ AC 220V 50Hz 3A Accessories:: Specimen Plate 115x215mmx21 Pcs, Bean Bag 2p
High Light:

textile testing machines

,

fabric stiffness tester

Fabric Bean Bag Snagging Resistance Tester



ASTM D5362 Fabric Bean Bag Snagging Resistance Tester 215mmx115mm



Application:

To determine the snagging resistance of knitted and woven fabrics



Principle:

Put a bead occipital in a knitted sample, and then the knitted fabric samples with beads pillow put up a wall with a certain number of turns of rows and rows of needle rollers rotating, the sample after the test is completed assessment hook wiregrade



Parameter:

Rotation speed:  20±3 r/min
Size of cylinder:  Dia. 200mm, depth. 145mm
Pinned bars:  8 PCS / Cylinder
Needles:  9 PCS / Pinned bar
Bean bag weight:  450±10g/pcs
Power:  1∮ AC 220V 50Hz 3A
Weight:  about 38 Kg
Dimensions:  470x380x380mm(L×W×H)
Standard: ASTM D5362,JIS L1058, M&S P21A  ASTM D5362,JIS L1058, M&S P21A
Accessories: specimen plate 115x215mmx21 pcs, Bean bag 2p
Optional purchase consumables:  scale, cabinet for scale



Standard:

ASTM D 5362,JIS L 1058,M&S P21A



ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm 0ASTM D5362 Textile Testing Equipment / Fabric Bean Bag Snagging Resistance Tester 215mmx115mm 1
