Plastic Horizontal And Vertical Flame Test Chamber Touch Screen IEC60950-11-10

China Plastic Horizontal And Vertical Flame Test Chamber Touch Screen IEC60950-11-10 supplier
Plastic Horizontal And Vertical Flame Test Chamber Touch Screen IEC60950-11-10 supplier Plastic Horizontal And Vertical Flame Test Chamber Touch Screen IEC60950-11-10 supplier

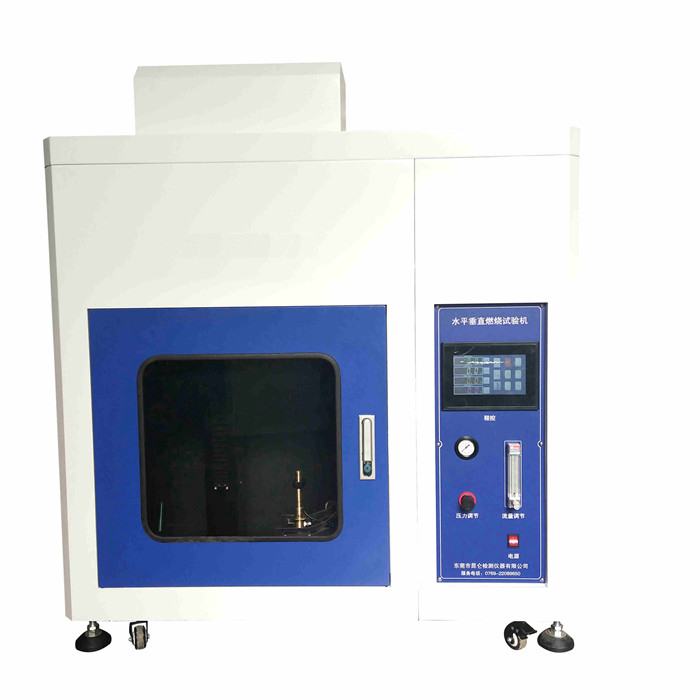

Large Image :  Plastic Horizontal And Vertical Flame Test Chamber Touch Screen IEC60950-11-10

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: UL94, GB/T5169.15, GB/T5169.16, GB/T5169.17, IEC60950-11-10
Model Number: YY164

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per quarter
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: UL 94 Test
Standard: UL94, GB/T5169.15, GB/T5169.16, GB/T5169.17, IEC60950-11-10 Burner Diameter: 9.5mm ± 0.5mm
Angle: 0°, 45°, 90° Gas: Methane
Dimension: L1250*W600*H1150 Power: 0.5kVA 220V 50-60Hz


UL 94 Touch Screen IEC60950-11-10 Plastic Horizontal and Vertical Flame Test Chamber


Description:

The horizontal vertical flame test chamber is a simulated safety test project according to GB/T5169.15; GB/T5169.16; GB/T5169.17 (IEC60950-11-10), UL 94 and other standards.
The horizontal and vertical testing machine uses a Bunsen burner of a specified size and a specific gas source (methane or natural gas) to ignite a number of samples in a horizontal or vertical state at a certain flame height and a certain flame angle. The flammability is evaluated by the igniting of the test article, the duration of the burning and the ignition of the test underlay.
Horizontal fire test machine for fire protection enclosures for mobile equipment with total mass exceeding and not exceeding 18kg; fire protection enclosure for standing equipment; materials placed in fire enclosure; V-0, V-1, V-2, HB, flammability of HF-1, HF-2, HBF grade materials or foams is graded.
Applicable to GB4706.1, GB8898.1, GB4943.1, GB7000.1, GB4793.1 and other standards, such as lighting equipment, low-voltage electrical appliances, household appliances, machine tools, electrical machinery, power tools, electronic equipment, electrical instruments, information technology The research, production and quality inspection departments for electrical and electronic products and their components, such as equipment, electrical equipment, electrical connectors and accessories, are also applicable to insulating materials, engineering plastics or other solid combustible materials industries.




Standards:

UL94,

GB/T5169.15,

GB/T5169.16,

GB/T5169.17,

IEC60950-11-10




Burner and gas control:


1. 0°and 45°angle burner convenient adjustment;
2. The United States imports Bunsen burner, tube length 100mm ± 10mm, inner diameter of 9.5mm ± 0.3mm; full compliance with the requirements IEC60695-11-4 burner;
3. Burner itself can adjust the air and gas flow;
4. Japan imported flow meter and flow valve, precise control of the combustion gas flow
5. High-precision pressure control valve and pressure gauge
6. U-shaped tube differential manometer;
7. Precise control of the flame height 20mm ± 2mm;



Specification:





Burner

Tube diameter 9.5mm ± 0.5mm Up from the air main air inlet or inlet up length of about 100mm

Shape

Round lamp

Angle

0°, 45°, 90° adjustable max stroke is 150mm

Gas

98% methane, or 37MJ/m 3 ±1MJ/m 3 LPG

Application flame time

1s ~ 999.9s

Flame time

1s ~ 999.9s

Application flame times

1 ~ 9999

Size

L1250*W600*H1150, inner volume 0.5m3

Power

0.5kVA 220V 50-60Hz
