| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM D 746-2007,ISO 812-2006,ASTM D476 ,ASTM D 2137-1994,JIS K 7216-1980,HG/T 2-162-1965,GB/T 15256-1994,GB/T 5470-2008, |
| Model Number: | YYE062 |
| Packaging Details: | Plywood box |
|---|---|
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets/month |
| Temperature Control Range:: | -80℃~0℃ | Impact Speed: | 2 M/s±0.2 M/s |
|---|---|---|---|
| Impactor Weight: | 200 ± 20g | Working Stroke: | 40 ± 1mm |
| Temperature Fluctuation: | <±0.5℃ | Distance Between Impactor And Clamp: | 11±0.5 (mm) |
| Distance Between Impactor And Sample: | 25±1mm | Sample Size: | Length: 25.0~40.0±0.5mm, Width: 6.0±0.5mm, Thickness: 2.0±0.3mm |
| High Light: | thermal shock test chamber,salt spray test chamber |
||

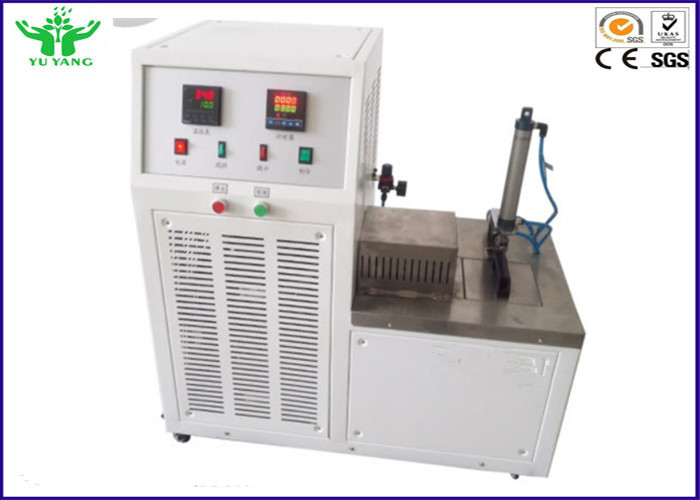

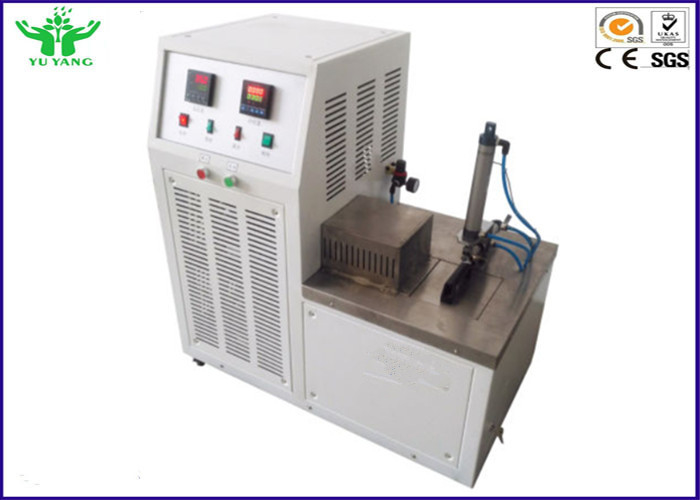

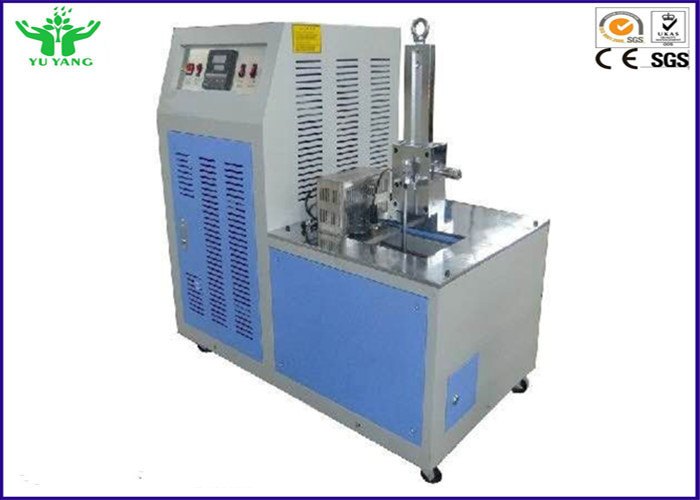

Rubber Plastic Low Temperature Brittleness Test Instrument
2 m/s±0.2 m/s Rubber Plastic Low Temperature Brittleness Test Instrument -80℃~0℃
Application:
The Rubber Plastic Low Temperature Brittleness Test Instrument is the highest temperature when the specimen is damaged under the specified conditions, that is, the brittle temperature. It can be used to compare the performance of the plastic and other elastic materials at low temperature. The brittleness and low temperature performance of vulcanized rubber with different rubber materials or different formulations can be determined. Therefore, both in scientific research materials and their products quality inspection, production process control is indispensable.
Standard:
ASTM D 746-2007,ISO 812-2006,ASTM D476 ,ASTM D 2137-1994,JIS K 7216-1980,HG/T 2-162-1965,GB/T 15256-1994,GB/T 5470-2008,
Parameter:
| Temperature control range: | room temperature ~ -80°C (room temperature ≤ 25°C) |
| Constant temperature accuracy: | ±0.3°C |
| Cooling rate: | 0°C~-30°C about 2.5°C/min |
| -30°C~-40°C about 2.5°C/min | |
| -40°C to -80°C to about 2.0°C/min | |
| The number of samples that can be installed: | 5 |
| Digital timer: | 0 seconds ~ 99 minutes, resolution 1 second |
| Cooling medium: | Ethanol or other antifreeze |
| Standard style: | strip pattern, length 26mm~40mm width 6mm, thickness 2.0±0.3mm |
Feature:
1.The core components using fully enclosed compressor and control protection system for low-temperature test to provide a reliable guarantee;
2.Equipped with type A and type B impact device, to meet different customer needs;
3.Test temperature digital settings, digital display, with automatically alarm function for temperature reach;
4.Convenient operating system, eye-catching display.
5.Can test 10 A type or 5 B type sample at one time.
